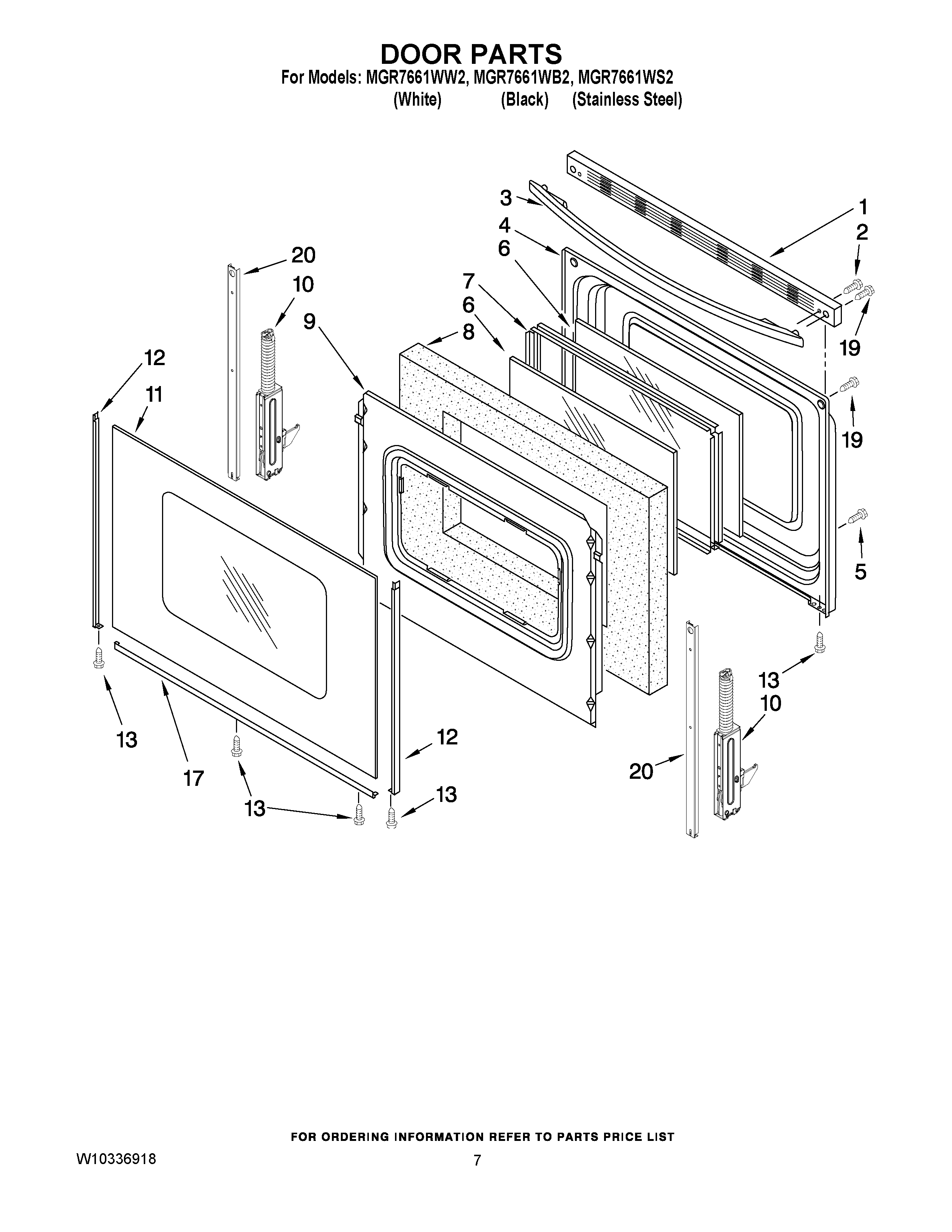

MGR7661WB2 05 – DOOR PARTS
Written by
in
MGR7661WB2 05 – DOOR PARTS
Products
Position
Product
1
TRIM, TOP (BLACK)
1
TRIM, TOP (WHITE)
2
SCREW
3
MAY W10323581
3
MAY W10171750
3
MAY W10323584
4
LINER, DOOR
5
SCREW
6
GLASS, INNER
7
MAY 3186289
8
INSULATION, DOOR STRIP
9
RETAINER, INSULATION
10
Hinge, Door
11
GLASS, OUTER (WHITE)
11
MAY W10106405
11
GLASS, OUTER (STAINLESS)
12
TRIM, SIDE (WHITE (LEFT))
12
TRIM, SIDE (BLACK, RIGHT HAND)
12
TRIM, SIDE (WHITE (RIGHT))
12
TRIM, SIDE (BLACK, LEFT HAND)
13
MAY 3196160
17
TRIM, LOWER (BLACK)
17
TRIM, LOWER (WHITE)
19
MAY W10031780
20
STRAP, DOOR
←
