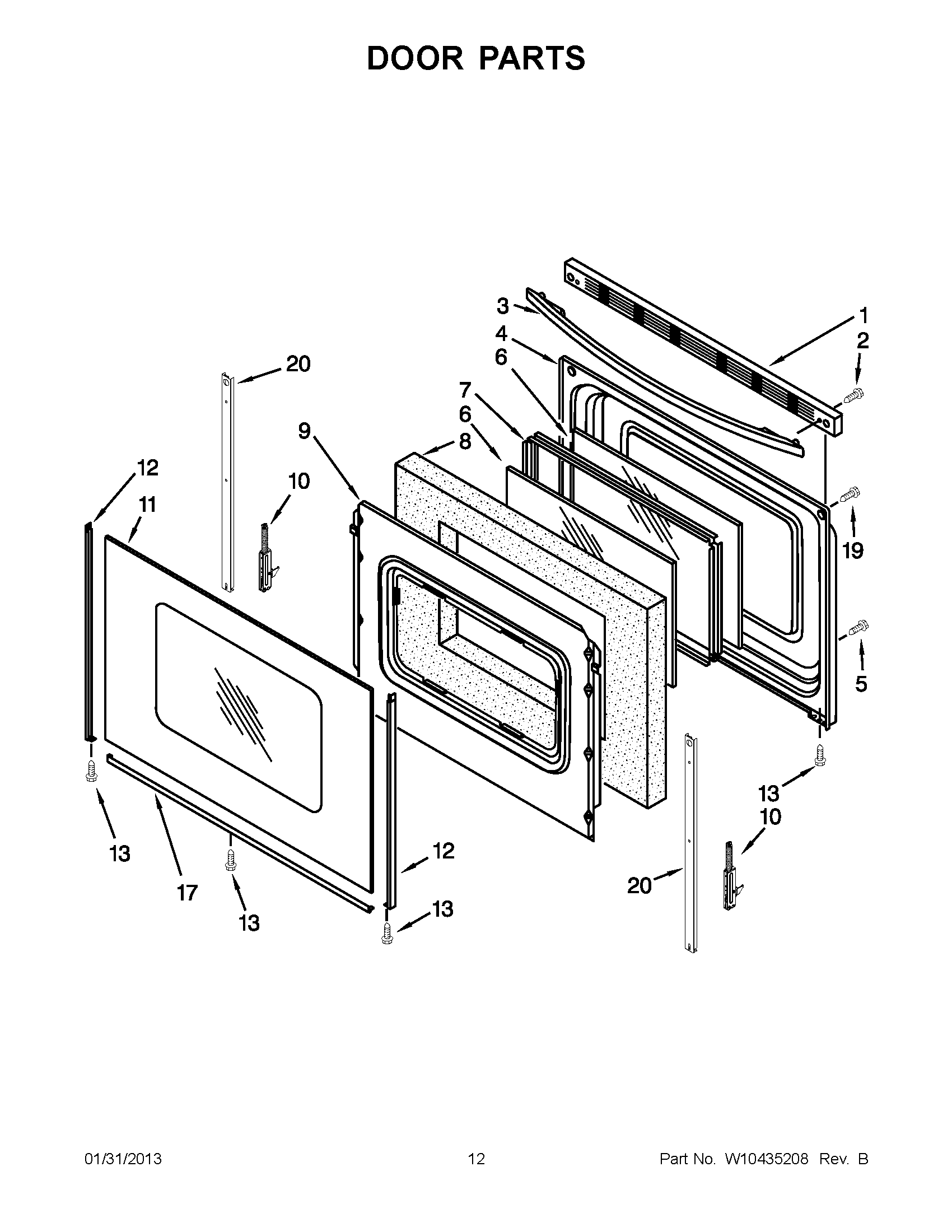

MGR7661WB3 06 – DOOR PARTS

MGR7661WB3 06 – DOOR PARTS

Written by

in

MGR7661WB3 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10323584
3	MAY W10171750
3	MAY W10323581
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	HINGE, DOOR (PASSIVE)
9	HINGE, ACTIVE (WITH SPRING)
9	RETAINER, INSULATION
11	GLASS, OUTER (WHITE)
11	MAY W10106405
11	GLASS, OUTER (STAINLESS)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (LEFT))
13	MAY 3196160
17	TRIM, LOWER (WHITE)
17	TRIM, LOWER (BLACK)
19	MAY W10031780
20	STRAP, DOOR
