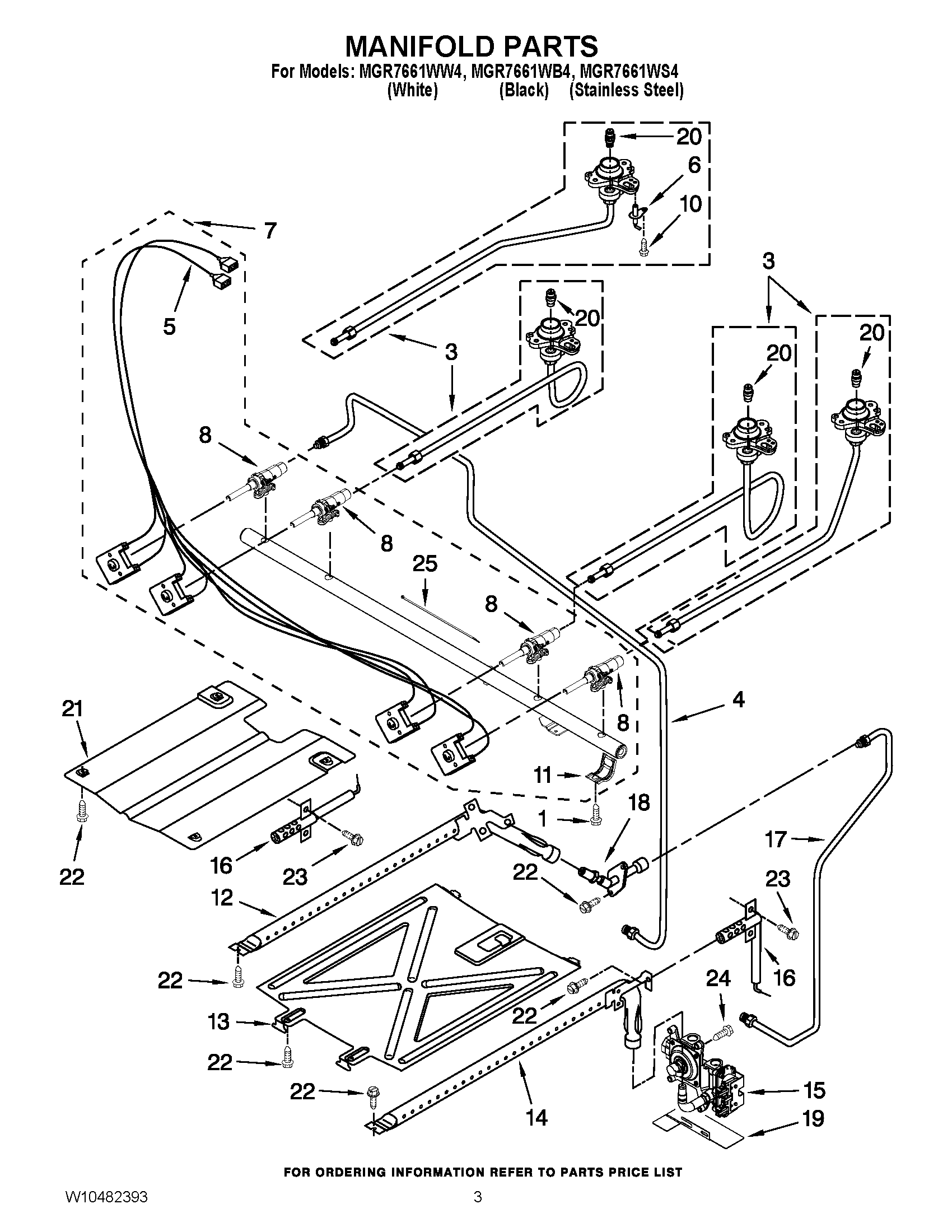

MGR7661WB4 03 – MANIFOLD PARTS

MGR7661WB4 03 – MANIFOLD PARTS

Written by

in

MGR7661WB4 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 4)
1SCREW, VALVE
3TUBING, BURNER (W/ORIFICE (LEFT REAR))
3Tubing, Burner W/Orifice (Right Front)
3TUBING, BURNER (W/ORIFICE (LEFT FRONT))
3TUBING, BURNER (W/ORIFICE (RIGHT REAR))
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10295998
6Electrode (4)
7MAY W10314242
8VALVE, GAS (RIGHT REAR)
8VALVE, GAS (LEFT REAR)
10MAY 8273062
11BRACKET, SADDLE VALVE
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15MAY W10224914
16ELECTRODE, BAKE
16Igniter (Broil)
17TUBE, BROILER SUPPLY
18MAY W10340259
19BRACKET, AEGIS
20MAY W10185023
20ORIFICE, NATURAL (5K) (RIGHT REAR)
20ORIFICE, NATURAL (9.5K) (LEFT REAR)
21SPREADER, FLAME (BROILER)
22SCREW
23Screw
24SCREW
25TIE, MANIFOLD WIRE
