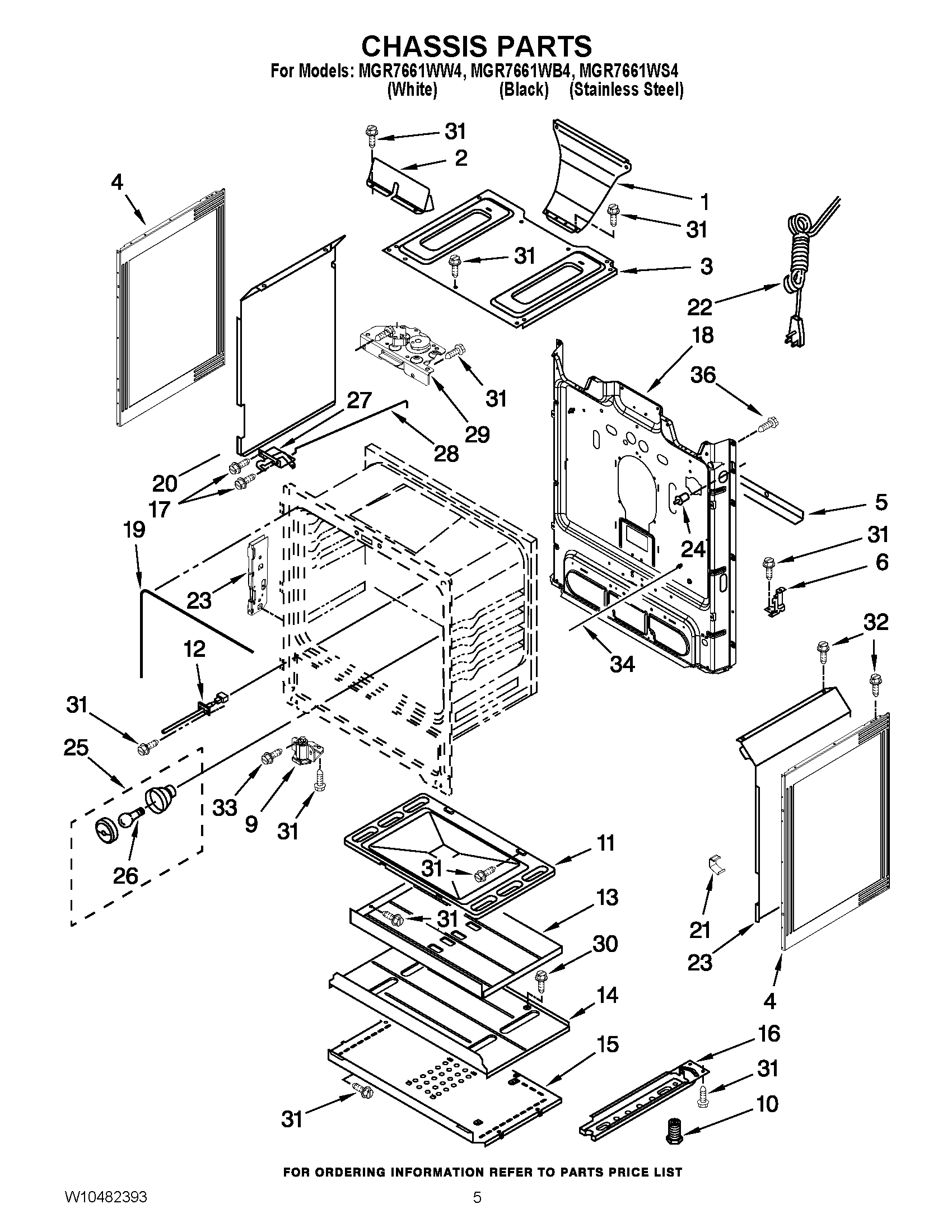

MGR7661WB4 04 – CHASSIS PARTS

MGR7661WB4 04 – CHASSIS PARTS

Written by

in

MGR7661WB4 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4	MAY W10322769
4	MAY W10322770
5	MAY W10387695
6	BRACKET, MANIFOLD
9	ASSEMBLY, FRONT FOOT
10	FOOT, LEVELING
11	BOTTOM, OVEN
12	SENSOR, OVEN
13	BAFFLE, BURNER OVEN
14	SHIELD, HEAT
15	SHIELD, LOWER
16	ASSEMBLY, BASE RAIL (RIGHT)
16	ASSEMBLY, BASE RAIL (LEFT)
17	SCREW
18	MAY W10224919
19	MAY 8522416
20	MAY 9761448
20	MAY 9761449
21	CLIP, PANEL
22	Cord, Power
23	RECEIVER, HINGE
24	MAY 9757262
25	ASSEMBLY, LIGHT
26	BULB, OVEN LIGHT
27	ASSEMBLY, DOOR LATCH (FRONT)
28	ROD, PUSH LATCH
29	ASSEMBLY, DOOR LATCH (REAR)
30	Screw
31	SCREW
32	MAY W10031780
33	SCREW
34	ROD, DOOR SWITCH
