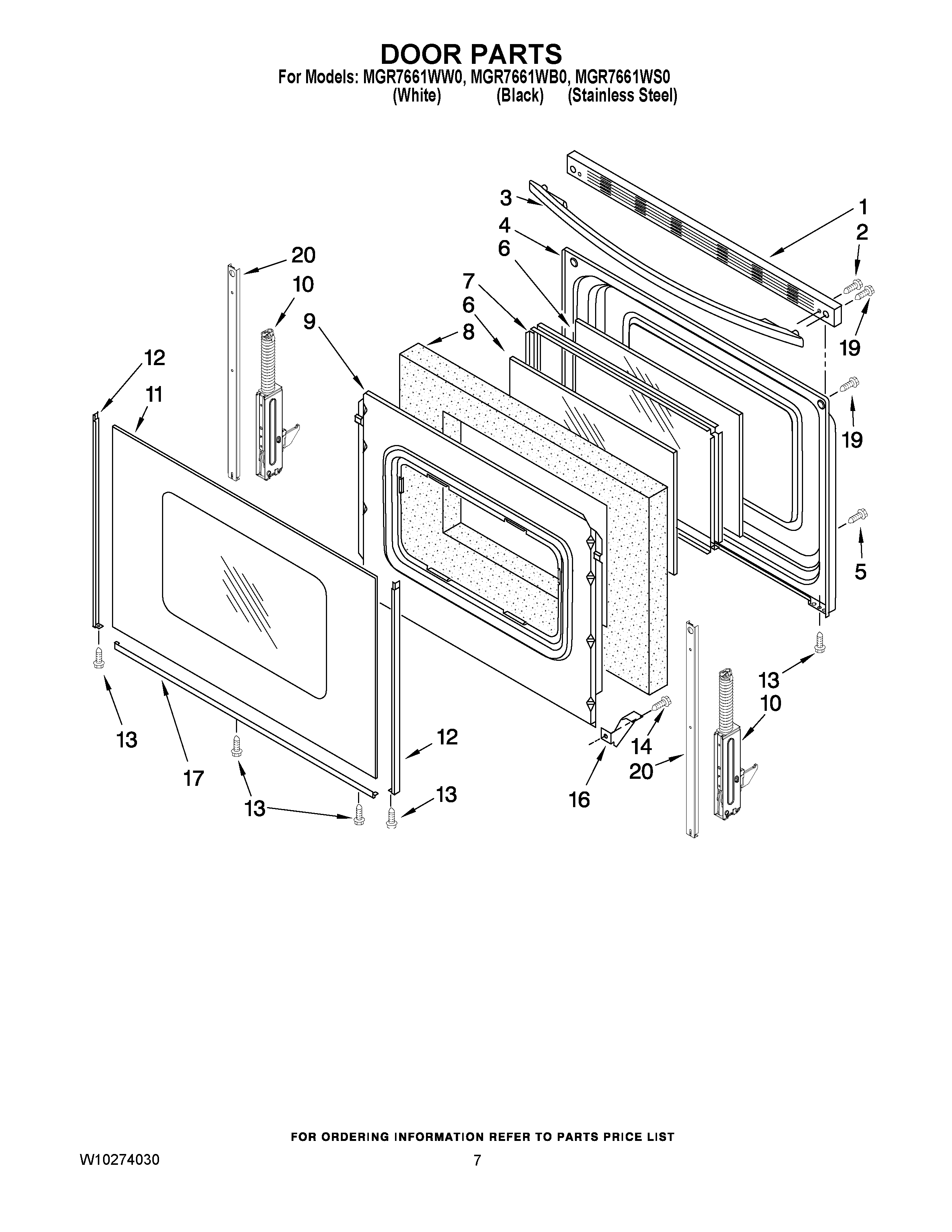

MGR7661WS0 05 – DOOR PARTS

MGR7661WS0 05 – DOOR PARTS

Written by

in

MGR7661WS0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10171750
3MAY W10111310
3MAY W10111309
4LINER, DOOR
5SCREW
6GLASS, INNER
7MAY 3186289
8MAY 8272618
9RETAINER, INSULATION
10Hinge, Door
11MAY W10106405
11GLASS, OUTER (STAINLESS)
11GLASS, OUTER (WHITE)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM SIDE (STAINLESS LH)
12TRIM SIDE (STAINLESS RH)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14SCREW
16Bracket, Window(2)
17TRIM, LOWER (WHITE)
17TRIM, LOWER (BLACK)
19MAY W10031780
20STRAP, DOOR
