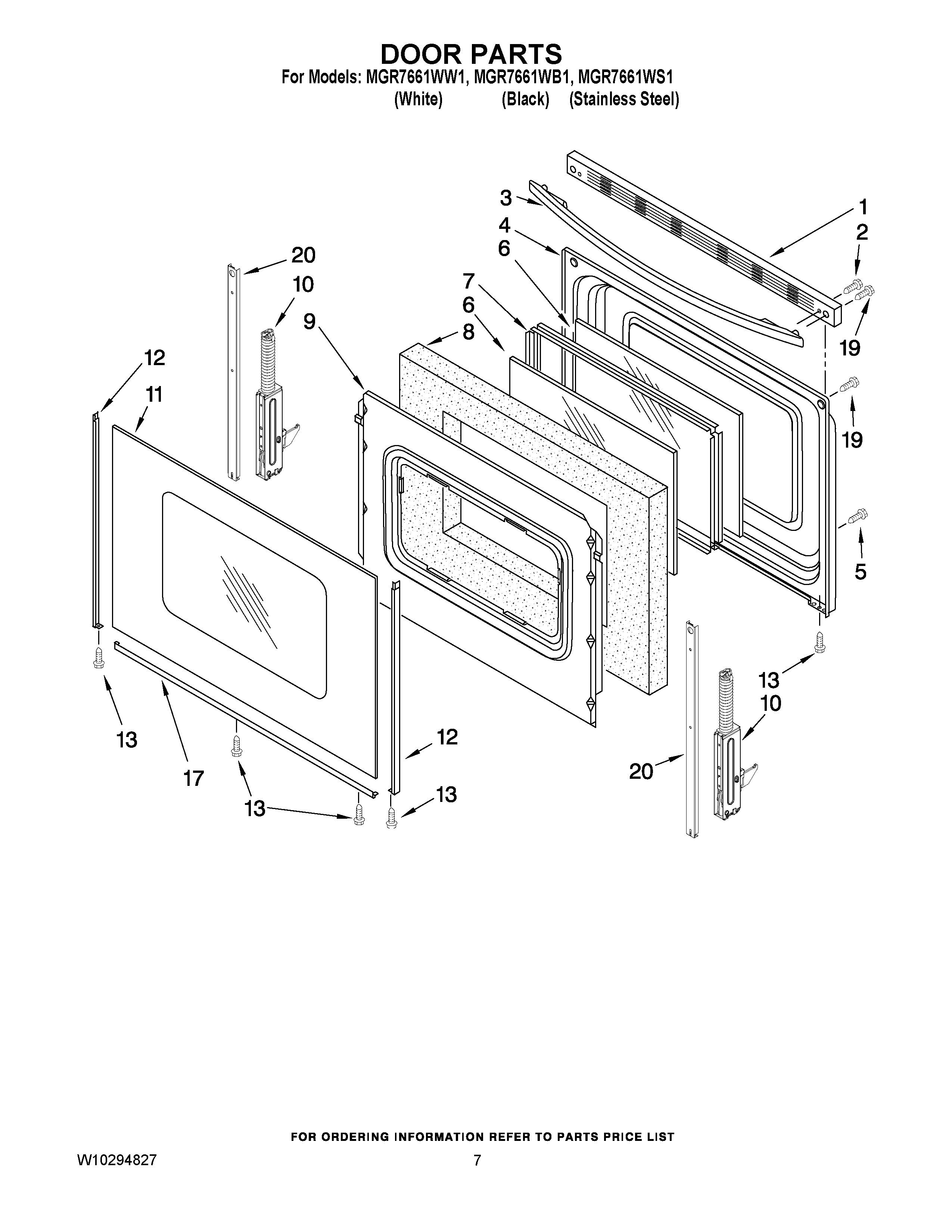

MGR7661WS1 05 – DOOR PARTS

MGR7661WS1 05 – DOOR PARTS

Written by

in

MGR7661WS1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10171750
3	MAY W10111310
3	MAY W10111309
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	Hinge, Door
11	GLASS, OUTER (WHITE)
11	MAY W10106405
11	GLASS, OUTER (STAINLESS)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (BLACK, RIGHT HAND)
13	MAY 3196160
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
19	MAY W10031780
20	STRAP, DOOR
