MGR7661WS3 01 – COOKTOP PARTS

MGR7661WS3 01 – COOKTOP PARTS

Written by

in

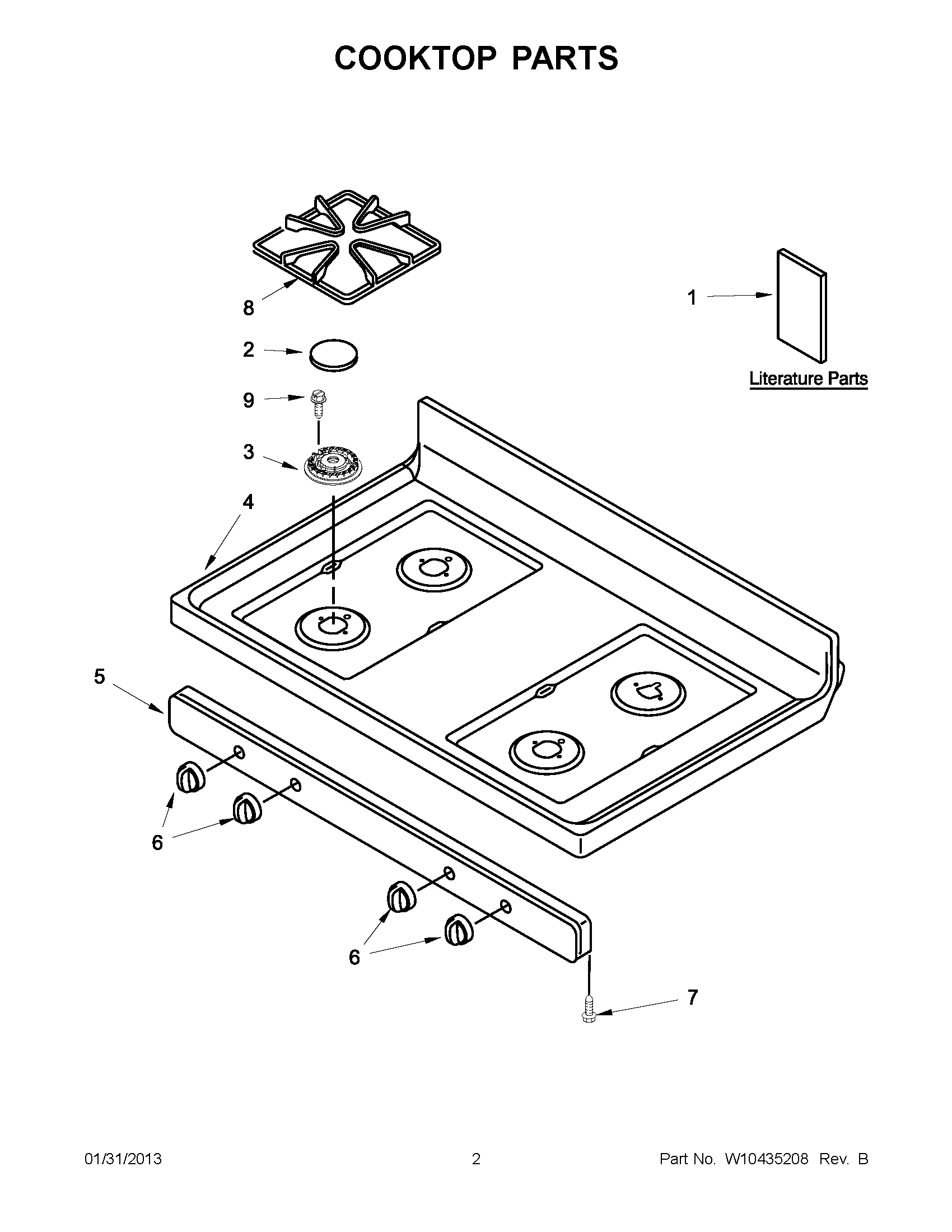

MGR7661WS3 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10234648
1INSTRUCTIONS, INSTALLATION
1MAY W10357517
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER (WETSTONE)
2CAP, BURNER (BLACK)
3HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
3HEAD, BURNER (6K) (LEFT REAR)
3MAY W10406283
4MAY 8272253
4MAY 8272251
5MAY 8523854
5MAY 8523855
6KNOB, BURNER (BLACK)
6MAY W10200192
7MAY 3196557
8GRATE, BURNER (STALLION BLACK)
8GRATE, BURNER (WETSTONE)
9SCREW
