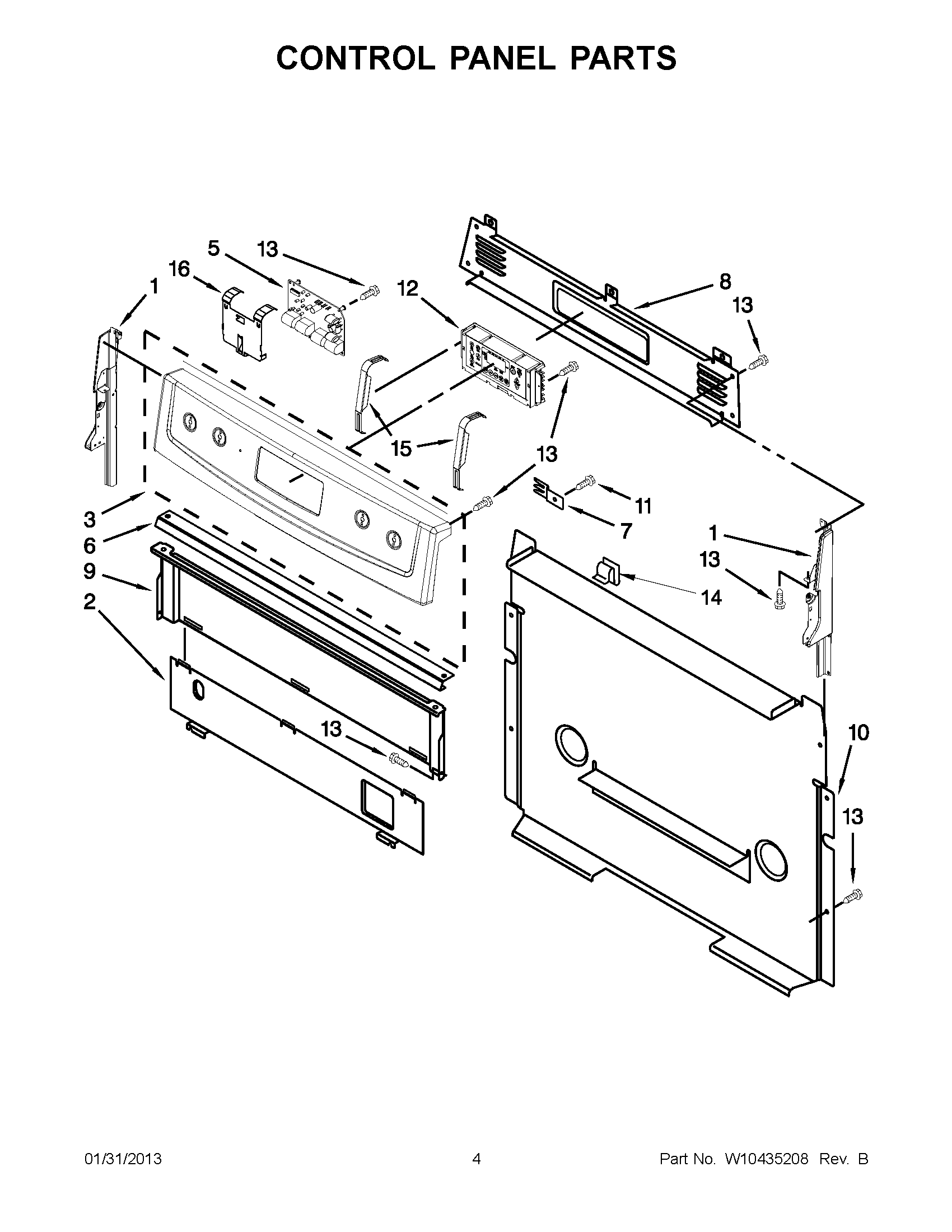

MGR7661WS3 02 – CONTROL PANEL PARTS

MGR7661WS3 02 – CONTROL PANEL PARTS

Written by

in

MGR7661WS3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	SHIELD, HEAT
3	MAY W10292029
3	MAY W10292030
3	MAY W10292031
5	MAY W10331686
6	BRKT-MNTG,CONSOLE
7	BRACKET, REAR COOKTOP
8	COVER, UPPER
9	SHIELD, HEAT
10	COVER, BACK
11	SCREW
12	CONTROL, RANGE LCC95 (WHITE / LCC95)
12	CONTROL, RANGE LCC95 (BLACK / LCC95)
13	SCREW
15	BRACKET, MOUNTING, EOC
16	Brkt-Mntg, DSI
17	MAY 8273564
