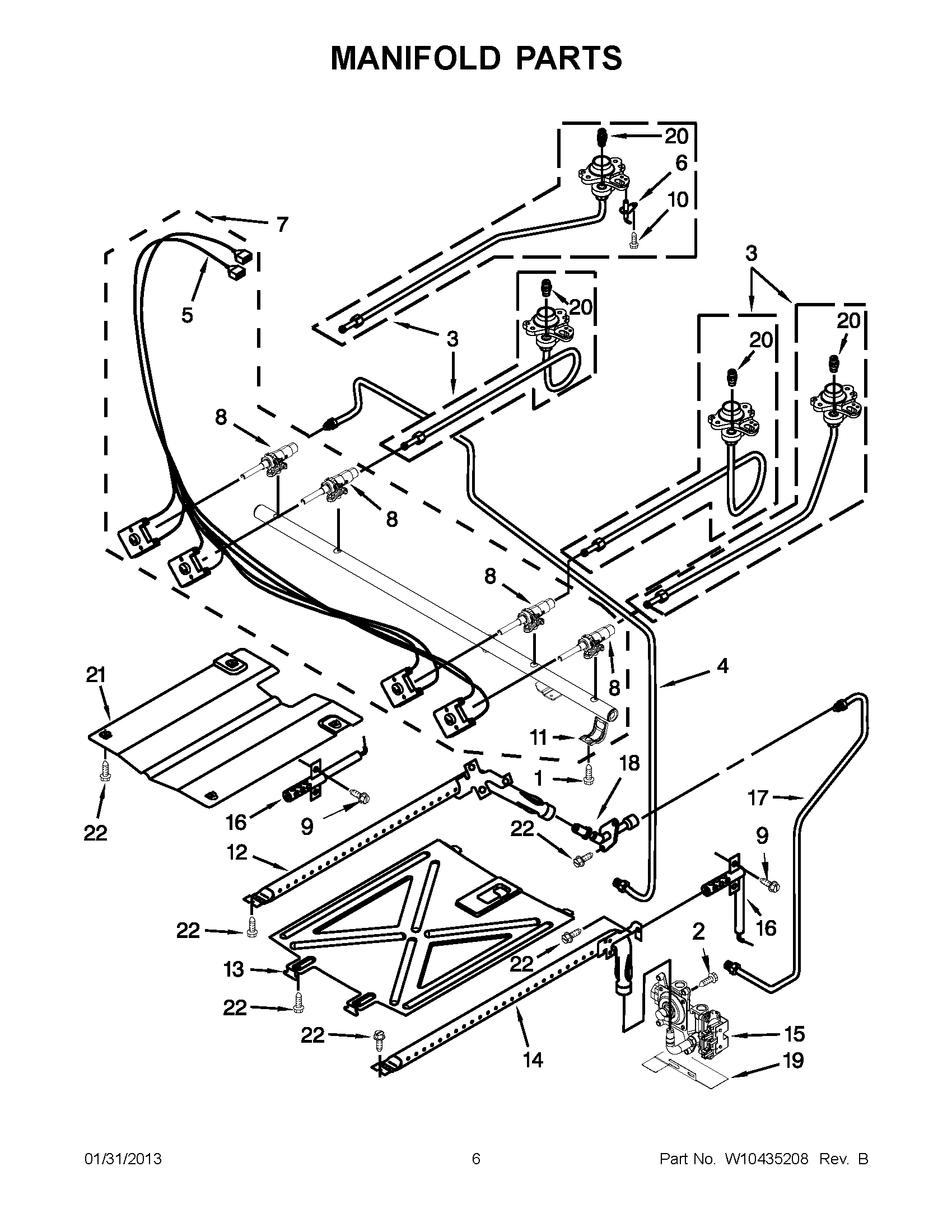

MGR7661WS3 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 4)
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	SCREW
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3	TUBING, BURNER (W/ORIFICE (LEFT FRONT))
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
3	Tubing, Burner W/Orifice (Right Front)
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	Electrode (4)
7	MAY W10314242
8	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT REAR)
9	Screw
10	MAY 8273062
11	BRACKET, SADDLE VALVE
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	MAY W10224914
16	ELECTRODE, BAKE
16	Igniter (Broil)
17	TUBE, BROILER SUPPLY
18	MAY W10465077
19	BRACKET, AEGIS
20	MAY W10185023
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
