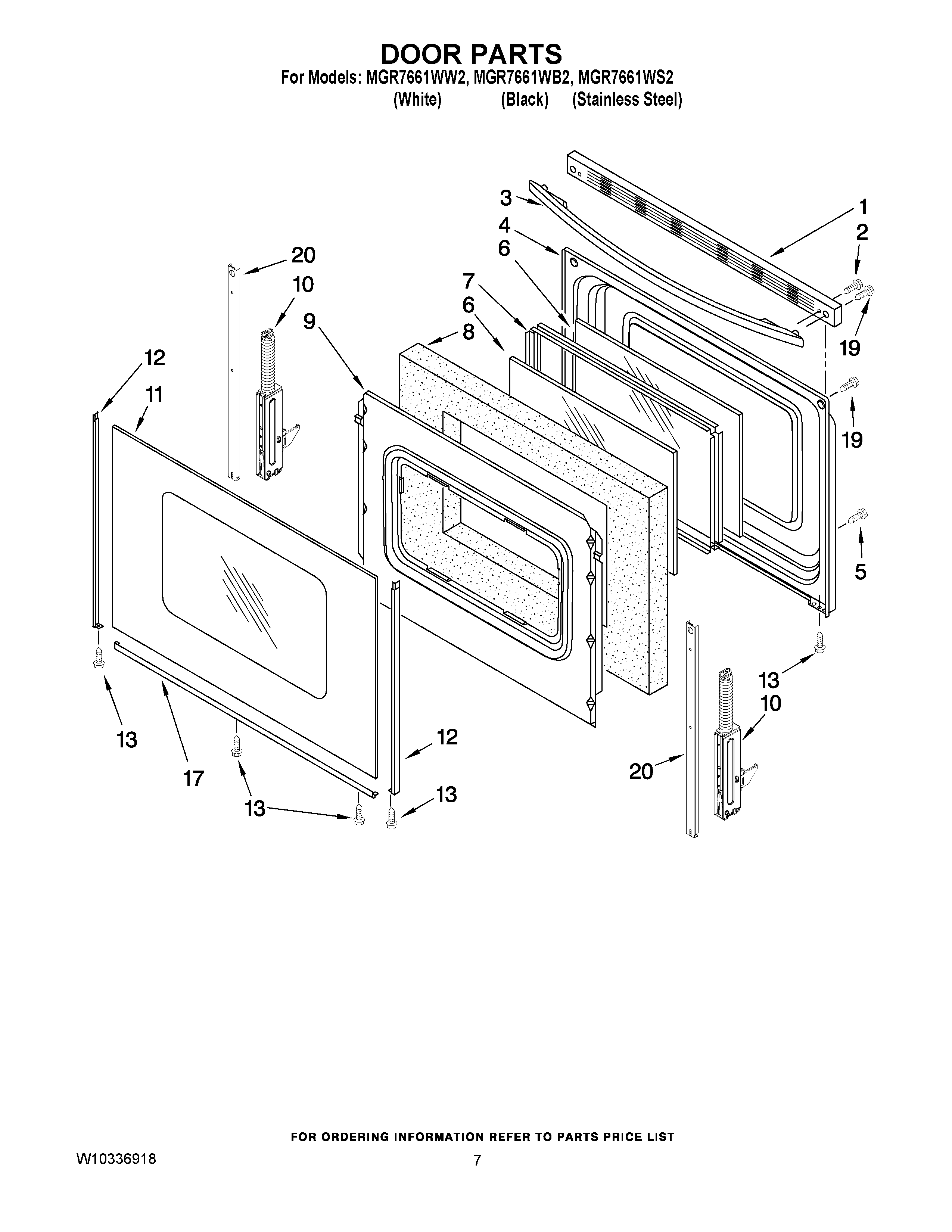

MGR7661WW2 05 – DOOR PARTS

MGR7661WW2 05 – DOOR PARTS

Written by

in

MGR7661WW2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10323581
3	MAY W10171750
3	MAY W10323584
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	Hinge, Door
11	GLASS, OUTER (WHITE)
11	MAY W10106405
11	GLASS, OUTER (STAINLESS)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, LEFT HAND)
13	MAY 3196160
17	TRIM, LOWER (BLACK)
17	TRIM, LOWER (WHITE)
19	MAY W10031780
20	STRAP, DOOR
