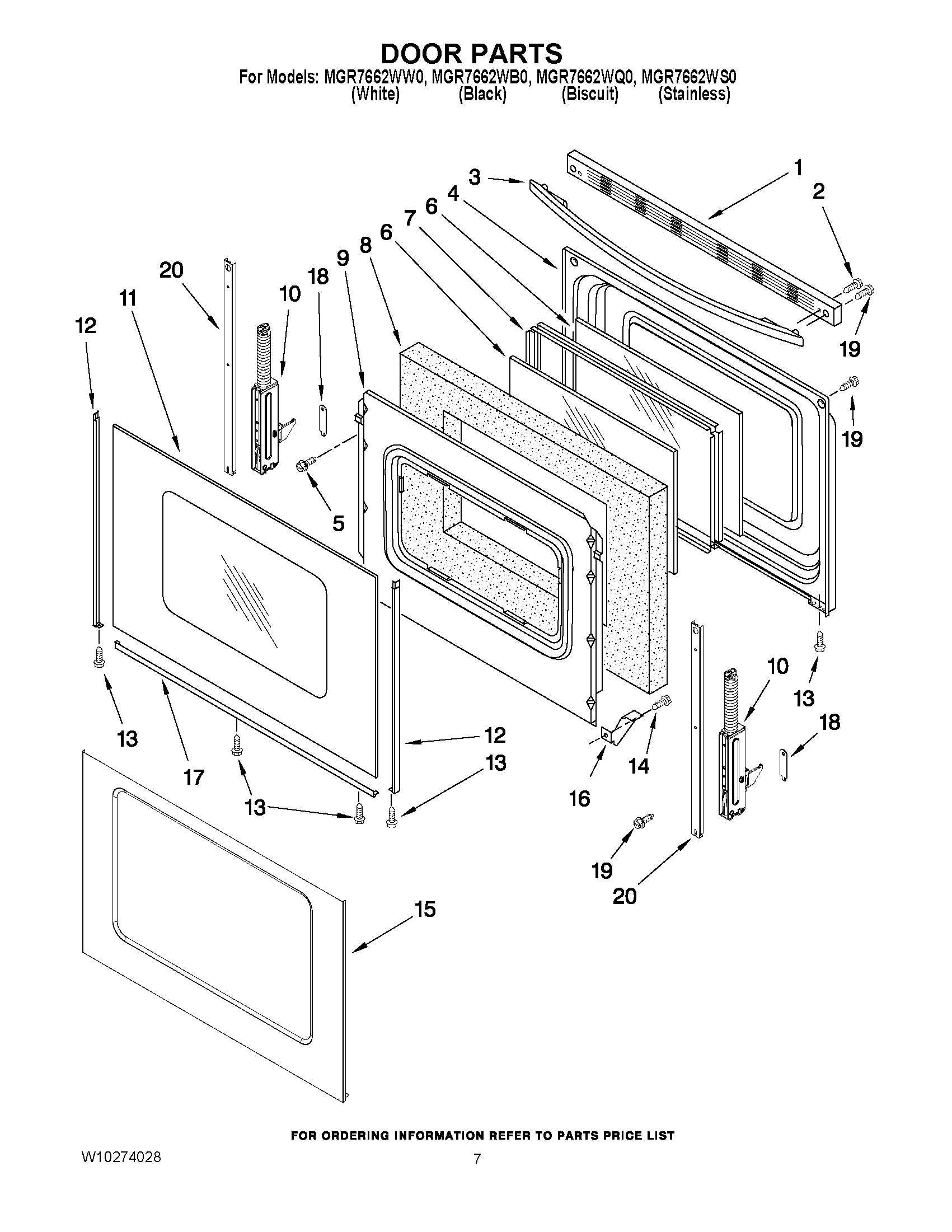

MGR7662WB0 05 – DOOR PARTS

MGR7662WB0 05 – DOOR PARTS

Written by

in

MGR7662WB0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, OVEN DOOR VENT (BISCUIT)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10111310
3MAY W10111311
3MAY W10111309
4LINER, DOOR
5SCREW
6GLASS, INNER
7MAY 3186289
8MAY 8272618
9RETAINER, INSULATION
10MAY W10171750
10Hinge, Door
11GLASS, OUTER (WHITE)
11GLASS, OUTER (STAINLESS)
11MAY W10106405
11MAY W10106406
12MAY 8523173
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12MAY 8523167
13MAY 3196160
14SCREW
15MAY W10181694
16Bracket, Window(2)
17MAY 8523178
17TRIM, LOWER (BLACK)
17TRIM, LOWER (WHITE)
18Clip,Door Mntg(2)
19MAY W10031780
20STRAP, DOOR
