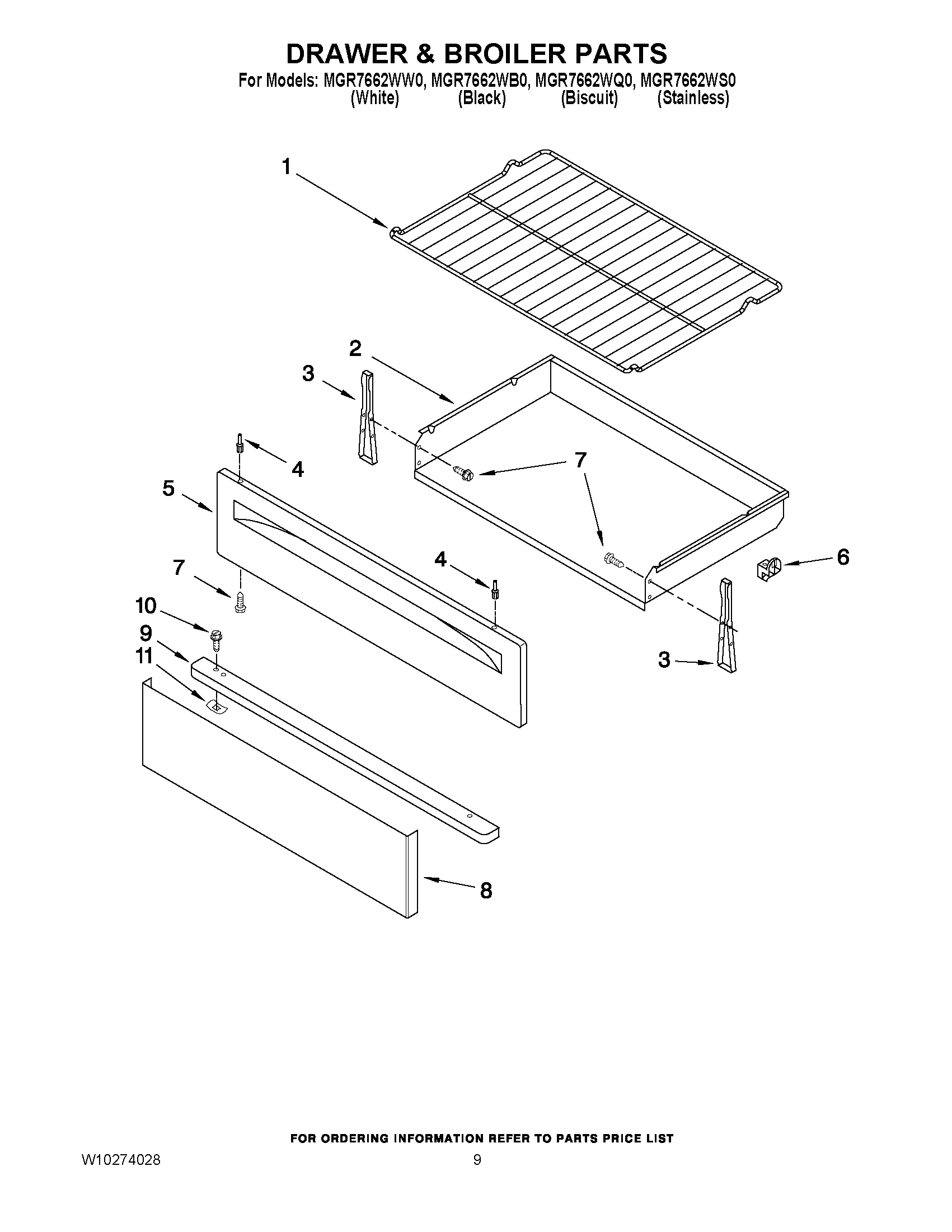

MGR7662WB0 06 – DRAWER & BROILER PARTS

MGR7662WB0 06 – DRAWER & BROILER PARTS

Written by

in

MGR7662WB0 06 – DRAWER & BROILER PARTS

Products

PositionProduct
1MAY W10179196
2MAY 9761031
3Bracket, Drawer(2)
3BRACKET, DRAWER (SS ONLY)
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5MAY W10022100
5MAY W10022110
5PANEL (STLS STEEL)
5MAY W10022090
6GLIDE, DRAWER
7Screw (Black)
8PANEL, DRAWER (BLACK)
9MAY W10197950
10SCREW
11MAY 9781031
