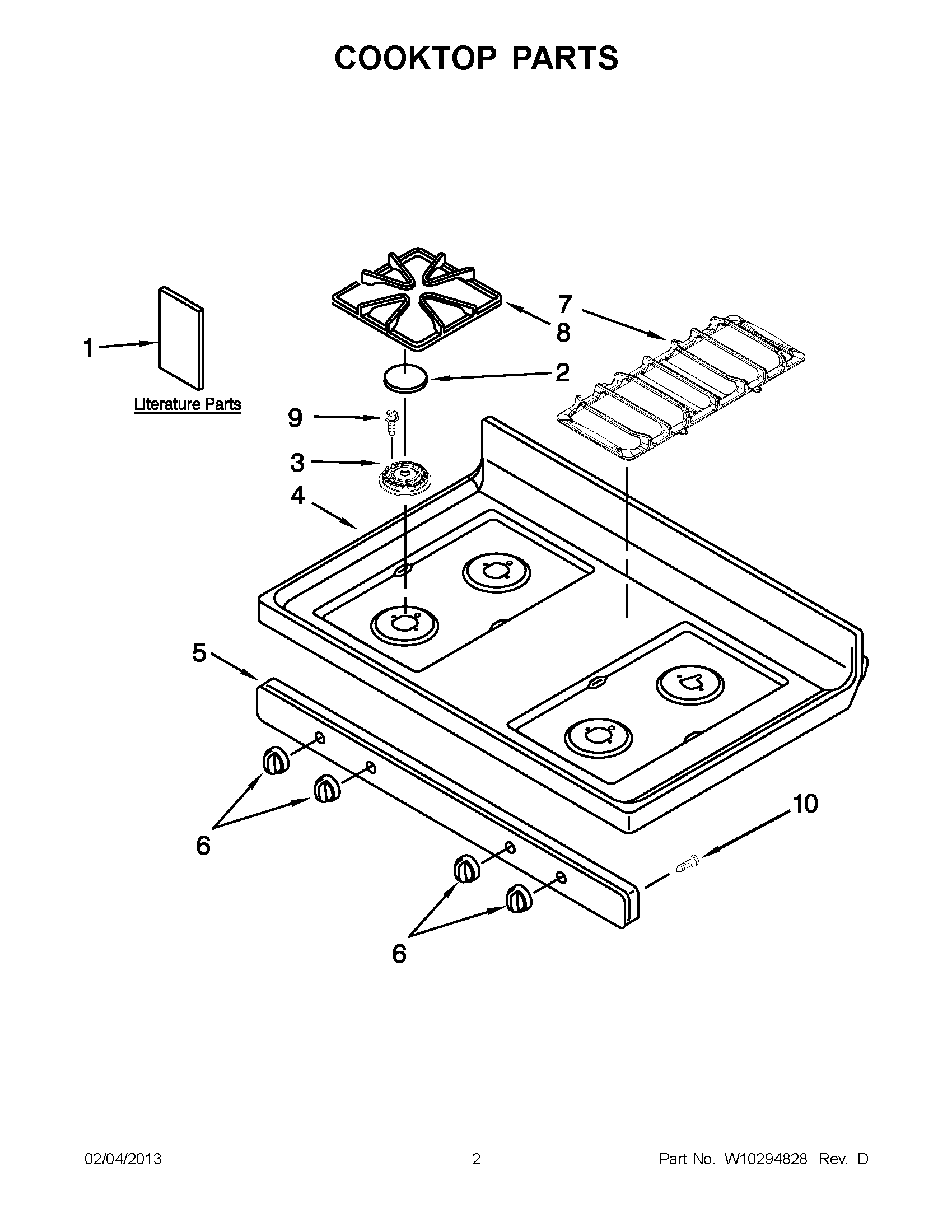

MGR7662WB1 01 – COOKTOP PARTS

MGR7662WB1 01 – COOKTOP PARTS

Written by

in

MGR7662WB1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1OWNERS MANUAL TECH SHEET
1MAY W10196160
1TECH SHEET (FRENCH)
1MAY W10198615
2CAP, BURNER (BLACK)
2CAP, BURNER (WETSTONE)
3BURNER (LR/RR/RF)
3HEAD, BURNER (LR/RR/LF)
3HEAD, BURNER CTR.
4MAY 8272251
4MAY 8272253
4MAY 8272743
5MAY 8523856
5MAY 8523855
5MAY 8523854
6MAY W10200192
6KNOB, CONTROL (BISCUIT)
6KNOB, BURNER (BLACK)
7NO DESCRIPTION AVAILABLE
7MAY W10165812
7MAY 8522854
8GRATE, BURNER (WETSTONE)
8GRATE, BURNER (STALLION BLACK)
9SCREW
10MAY 3196557
