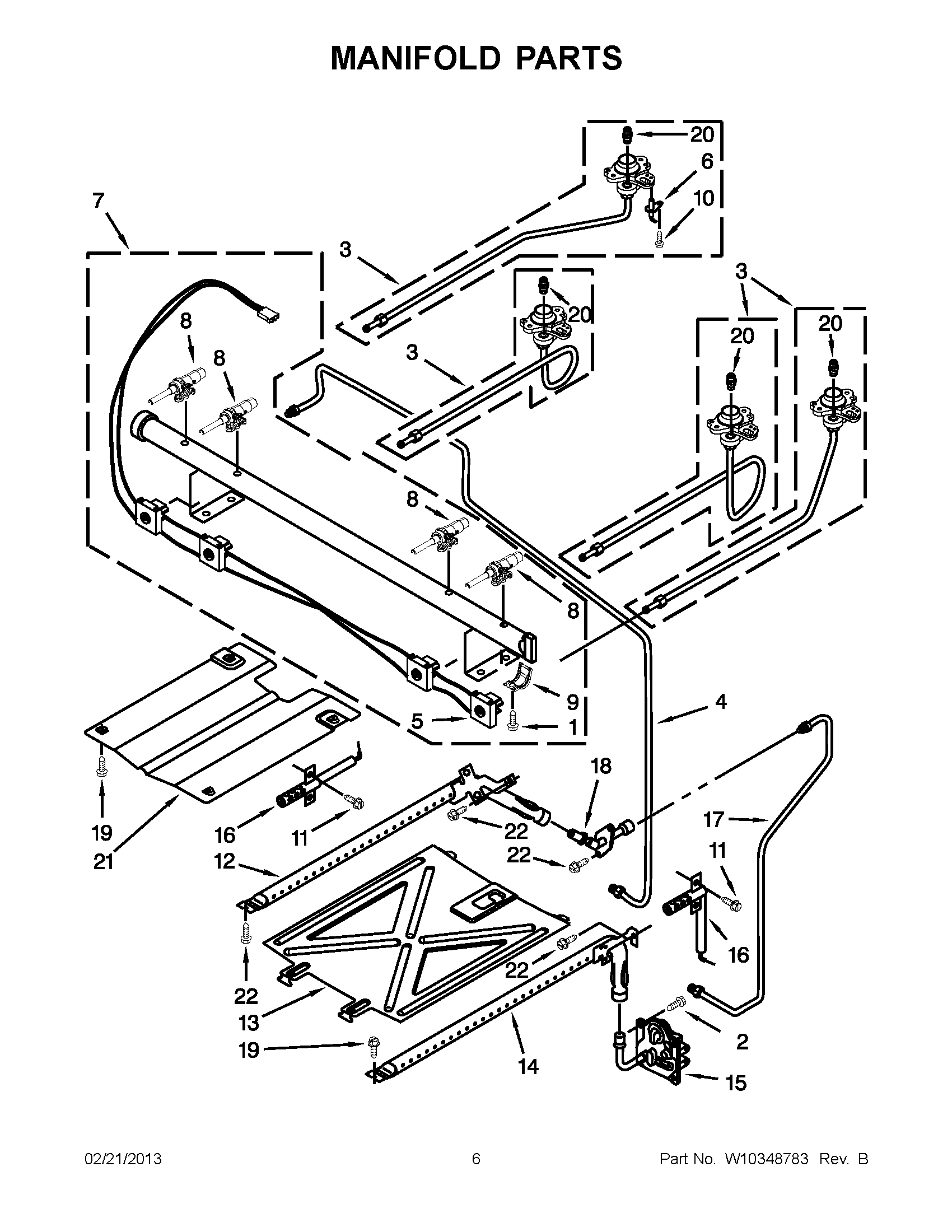

MGR7662WB2 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (SET OF 4)
NI	LINER (NOT A SERVICEABLE PART)
1	SCREW, VALVE
2	SCREW
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
3	TUBING, BURNER W/ORIFICE (12K (RIGHT FRONT))
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3	TUBING, BURNER (W/ORIFICE (LEFT FRONT))
4	TUBING (MANIFOLD TO REGULATOR)
5	MAY W10295998
6	Electrode (4)
7	MAY W10314242
8	VALVE, GAS (LEFT REAR)
8	VALVE, GAS (RIGHT REAR)
9	BRACKET, SADDLE VALVE
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	Valve/Regulator
16	ELECTRODE, BAKE
16	Igniter (Broil)
17	MAY 8272222
18	MAY 3186489
19	Screw
20	MAY W10185023
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	ORIFICE, BURNER (12K) (RIGHT FRONT)
21	SPREADER, FLAME (BROILER)
22	SCREW
