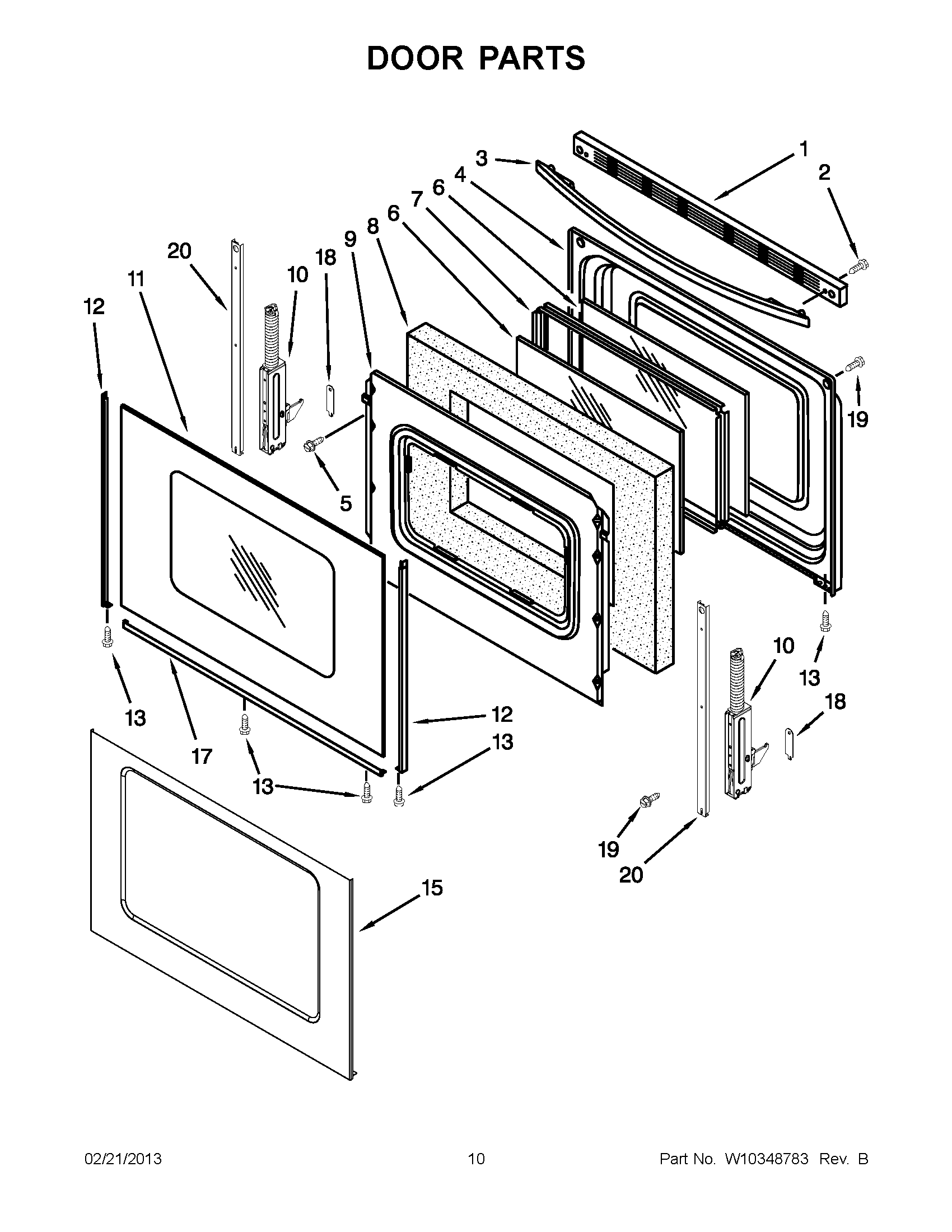

MGR7662WB2 05 – DOOR PARTS
Written by
in
MGR7662WB2 05 – DOOR PARTS
Products
Position
Product
1
TRIM, TOP (BLACK)
1
MAY W10310923
1
TRIM, TOP (WHITE)
2
SCREW
3
MAY W10323586
3
MAY W10323581
3
MAY W10323584
3
MAY W10171750
4
LINER, DOOR
5
SCREW
6
GLASS, INNER
7
MAY 3186289
8
INSULATION, DOOR STRIP
9
RETAINER, INSULATION
10
HINGE, DOOR (PASSIVE)
10
HINGE, ACTIVE (WITH SPRING)
11
MAY W10106405
11
GLASS, OUTER (STAINLESS)
11
GLASS, OUTER (WHITE)
11
MAY W10106406
12
MAY 8523167
12
TRIM, SIDE (BLACK, RIGHT HAND)
12
MAY 8523173
12
TRIM, SIDE (BLACK, LEFT HAND)
12
TRIM, SIDE (WHITE (LEFT))
12
TRIM, SIDE (WHITE (RIGHT))
13
MAY 3196160
15
GLASS, OUTER (STAINLESS)
17
TRIM, LOWER (BLACK)
17
MAY 8523178
17
TRIM, LOWER (WHITE)
18
Clip,Door Mntg(2)
19
MAY W10031780
20
STRAP, DOOR
←
