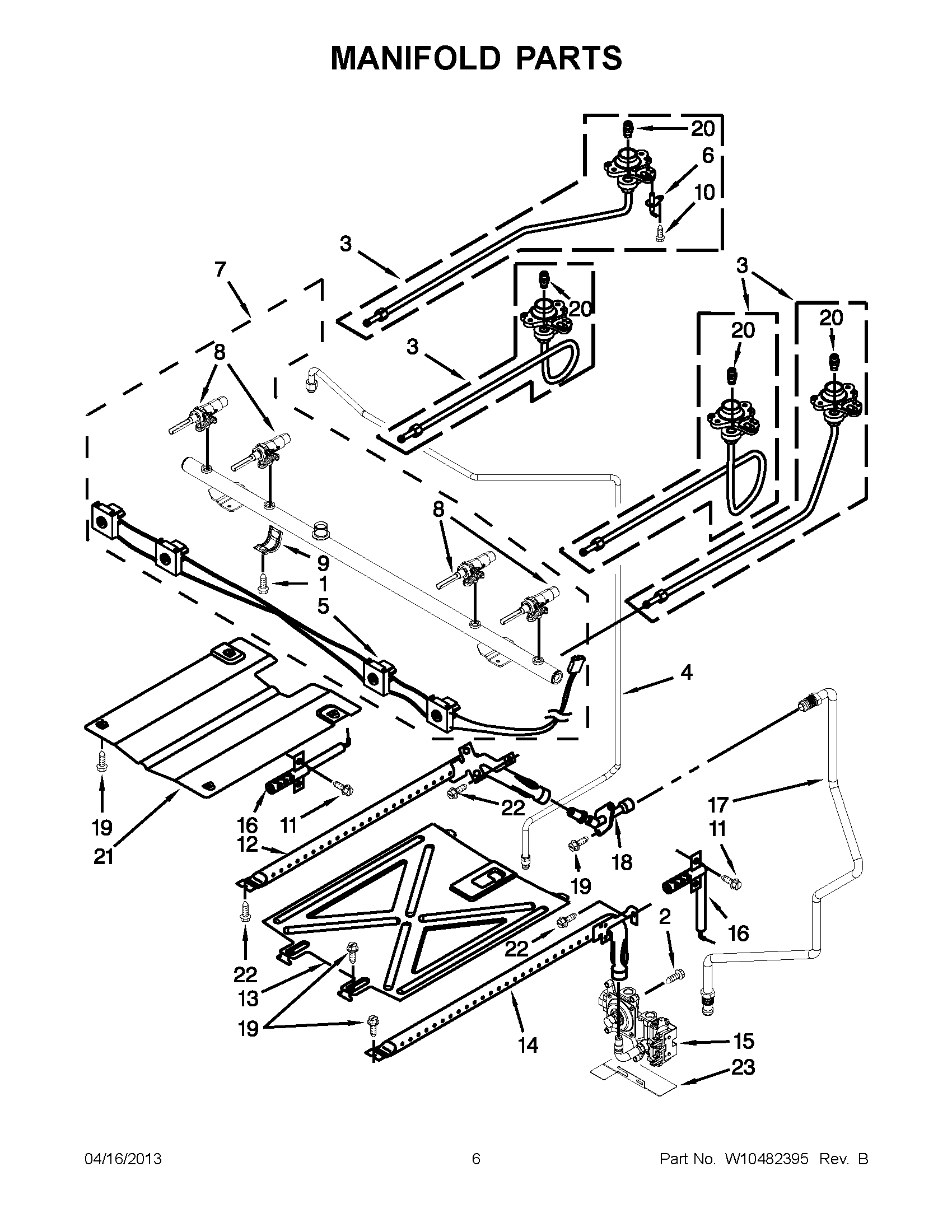

MGR7662WB4 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (SET OF 4)
NILINER (NOT A SERVICEABLE PART)
1SCREW, VALVE
2SCREW
3TUBING, BURNER (W/ORIFICE (LEFT FRONT))
3TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3TUBING, BURNER W/ORIFICE (12K (RIGHT FRONT))
3TUBING, BURNER (W/ORIFICE (LEFT REAR))
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10295998
6Electrode (4)
7MAY W10314242
8VALVE, GAS (RIGHT REAR)
8VALVE, GAS (LEFT REAR)
9BRACKET, SADDLE VALVE
10MAY 8273062
11SCREW
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15MAY W10224914
16ELECTRODE, BAKE
16Igniter (Broil)
17TUBE, BROILER SUPPLY
18MAY W10465077
19Screw
20ORIFICE, BURNER (12K) (RIGHT FRONT)
20MAY W10185023
20ORIFICE, NATURAL (9.5K) (LEFT REAR)
20ORIFICE, NATURAL (5K) (RIGHT REAR)
21SPREADER, FLAME (BROILER)
22SCREW
23BRACKET, AEGIS
