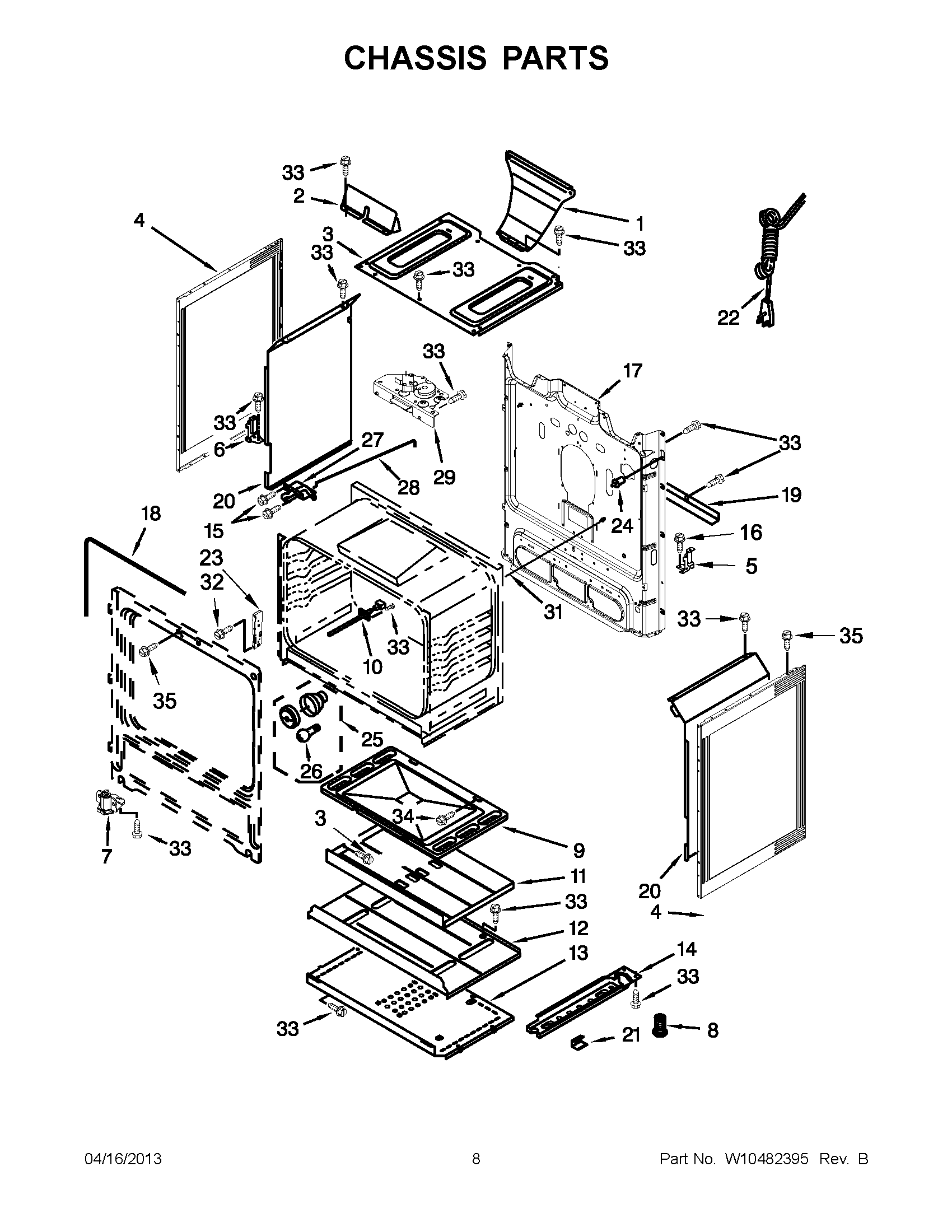

MGR7662WB4 04 – CHASSIS PARTS

MGR7662WB4 04 – CHASSIS PARTS

Written by

in

MGR7662WB4 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4	MAY W10322769
4	MAY W10388548
4	MAY W10295597
5	BRACKET, MANIFOLD
6	Screw
7	ASSEMBLY, FRONT FOOT
8	FOOT, LEVELING
9	BOTTOM, OVEN
10	SENSOR, OVEN
11	BAFFLE, BURNER OVEN
12	SHIELD, HEAT
13	SHIELD, LOWER
14	ASSEMBLY, BASE RAIL (RIGHT)
14	ASSEMBLY, BASE RAIL (LEFT)
15	SCREW
16	SCREW
17	MAY W10224919
18	MAY 8522416
19	BRACE, MAIN BACK
20	MAY 9761449
20	MAY 9761448
21	CLIP, PANEL
22	Cord, Power
23	RECEIVER, HINGE
24	MAY 9757262
25	MAY 3196701
26	BULB, OVEN LIGHT
27	ASSEMBLY, DOOR LATCH (FRONT)
28	ROD, PUSH LATCH
29	ASSEMBLY, DOOR LATCH (REAR)
31	ROD, DOOR SWITCH
32	MAY W10031780
33	SCREW
34	SCREW
35	SCREW
