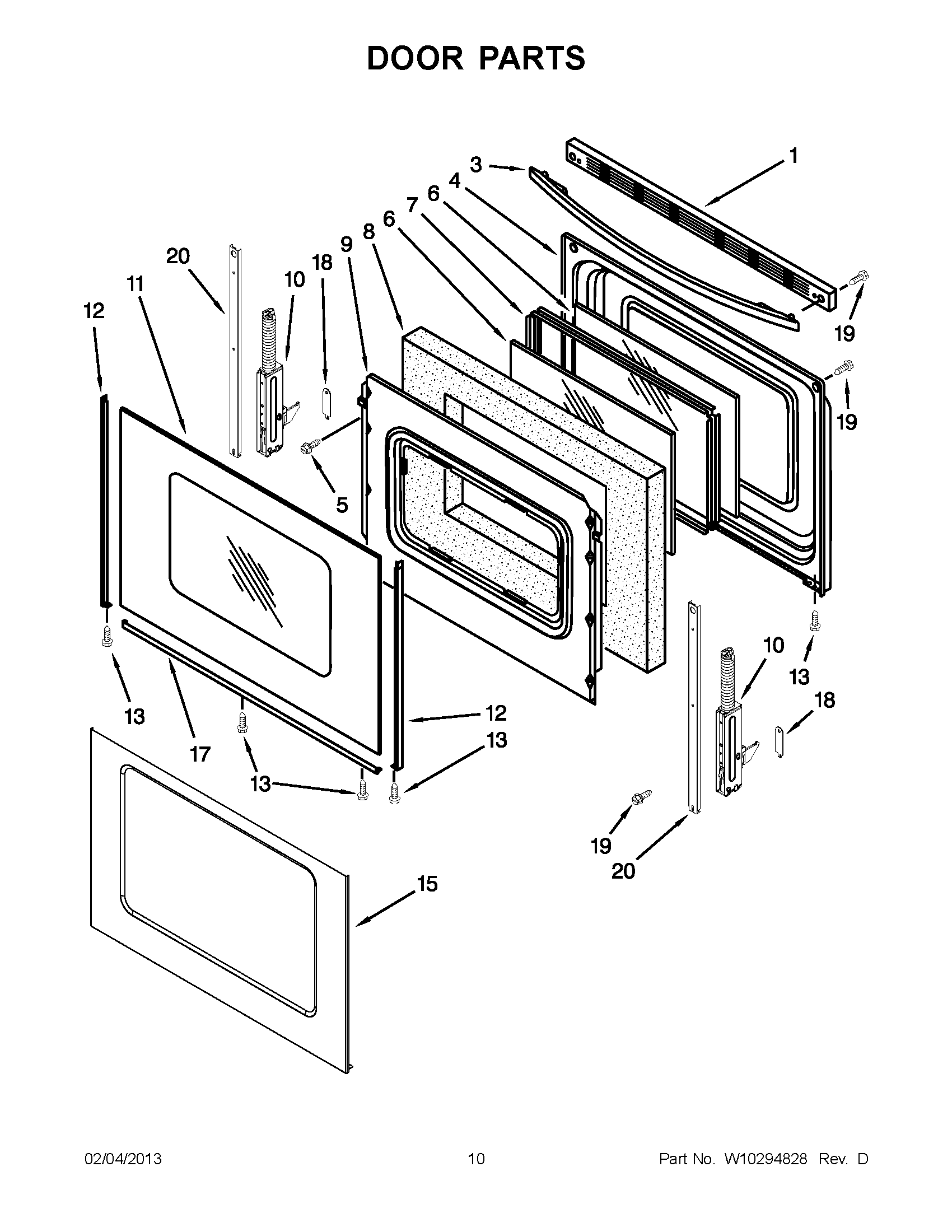

MGR7662WQ1 05 – DOOR PARTS

MGR7662WQ1 05 – DOOR PARTS

Written by

in

MGR7662WQ1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, OVEN DOOR VENT (BISCUIT)
1	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10171750
3	MAY W10111310
3	MAY W10111311
3	MAY W10111309
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	Hinge, Door
11	GLASS, OUTER (STAINLESS)
11	MAY W10106406
11	GLASS, OUTER (WHITE)
11	MAY W10106405
12	MAY 8523167
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (RIGHT))
12	MAY 8523173
13	MAY 3196160
15	GLASS, OUTER (STAINLESS)
17	TRIM, LOWER (BLACK)
17	MAY 8523178
17	TRIM, LOWER (WHITE)
18	Clip,Door Mntg(2)
19	MAY W10031780
20	STRAP, DOOR
