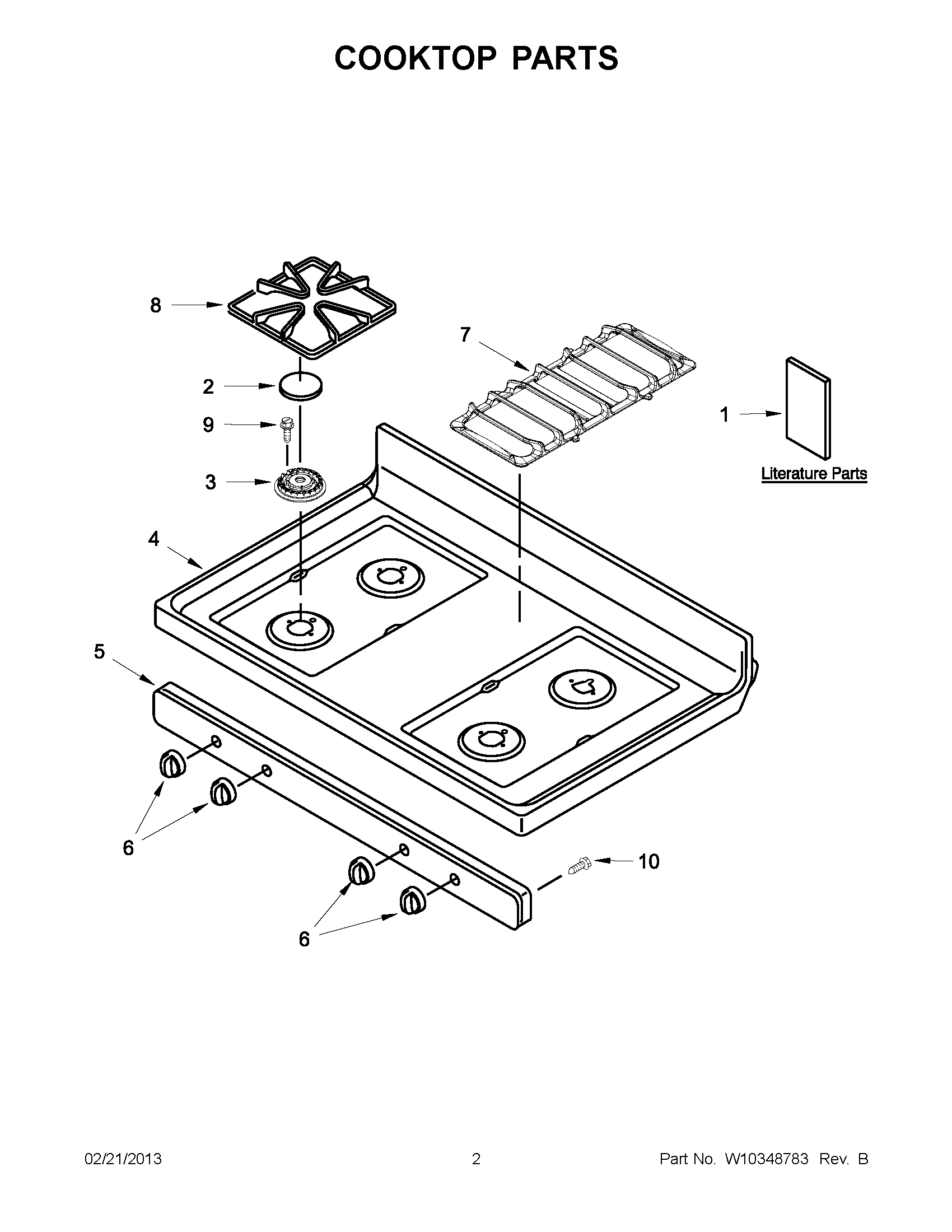

MGR7662WQ2 01 – COOKTOP PARTS

MGR7662WQ2 01 – COOKTOP PARTS

Written by

in

MGR7662WQ2 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TECH SHEET (FRENCH)
1MAY W10198615
1OWNERS MANUAL TECH SHEET
1MAY W10196160
1TIPS, SAFE COOKING (FRENCH)
2CAP, BURNER (BLACK)
2CAP, BURNER (WETSTONE)
3BURNER (LR/RR/RF)
3HEAD, BURNER (LR/RR/LF)
3HEAD, BURNER CTR.
4MAY 8272253
4MAY 8272743
4MAY 8272251
5MAY 8523856
5MAY 8523855
5MAY 8523854
6KNOB, BURNER (BLACK)
6MAY W10200192
6KNOB, CONTROL (BISCUIT)
7MAY 8522854
7MAY W10165812
8GRATE, BURNER (WETSTONE)
8GRATE, BURNER (STALLION BLACK)
9SCREW
10MAY 3196557
