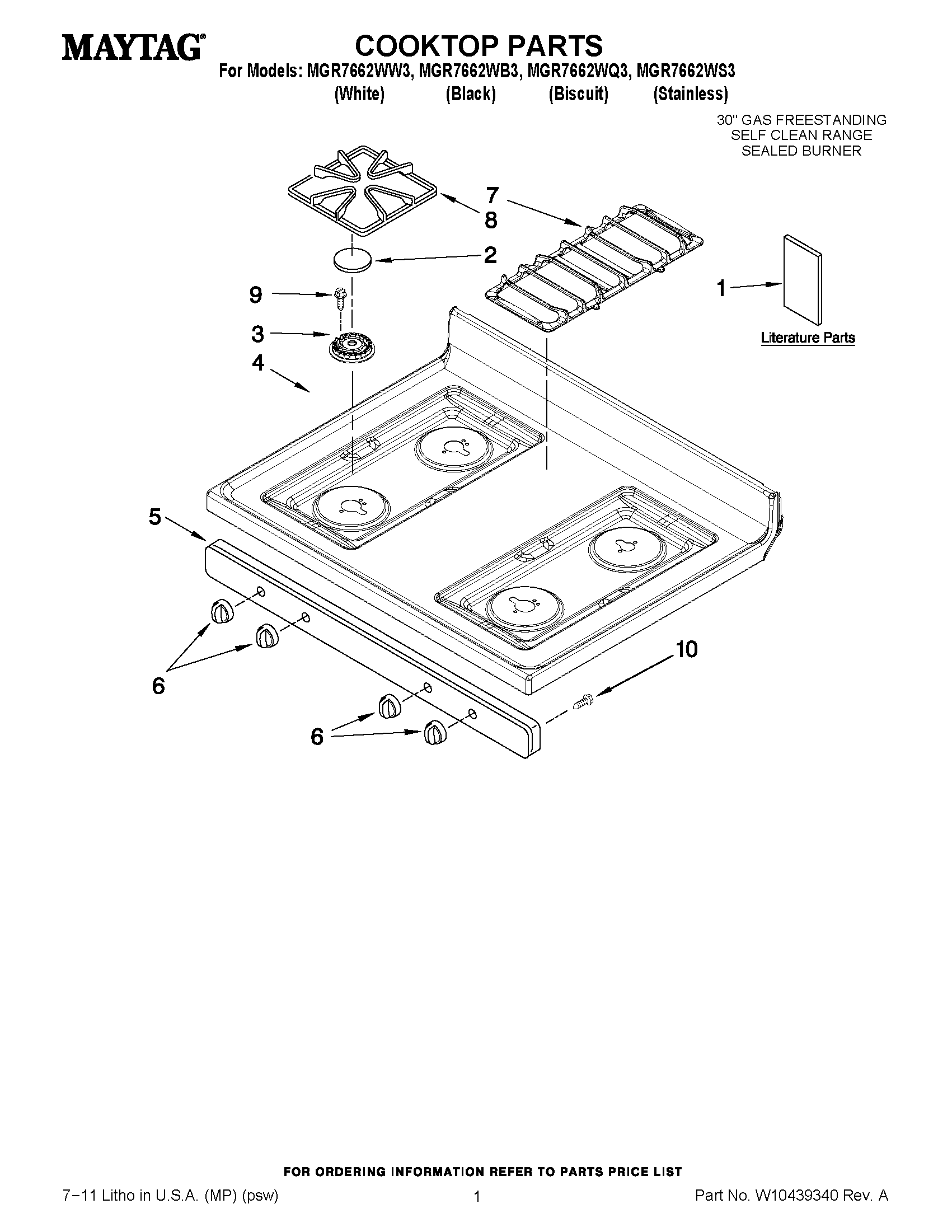

MGR7662WQ3 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	WIRING DIAGRAM (FRENCH)
1	OWNERS MANUAL TECH SHEET
1	MAY W10357517
1	MAY W10413013
1	TIPS, SAFE COOKING (FRENCH)
1	Template, Anti-Tip (English/French)
1	TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
2	CAP, BURNER (WETSTONE)
2	CAP, BURNER (BLACK)
3	HEAD, BURNER CTR.
3	HEAD, BURNER (LR/RR/LF)
3	BURNER (LR/RR/RF)
4	MAY 8272251
4	MAY 8272253
4	MAY 8272743
5	MAY 8523856
5	MAY 8523855
5	MAY 8523854
6	MAY W10200192
6	KNOB, BURNER (BLACK)
6	KNOB, CONTROL (BISCUIT)
7	MAY 8522854
7	MAY W10165812
8	GRATE, BURNER (STALLION BLACK)
8	GRATE, BURNER (WETSTONE)
9	SCREW
10	MAY 3196557
