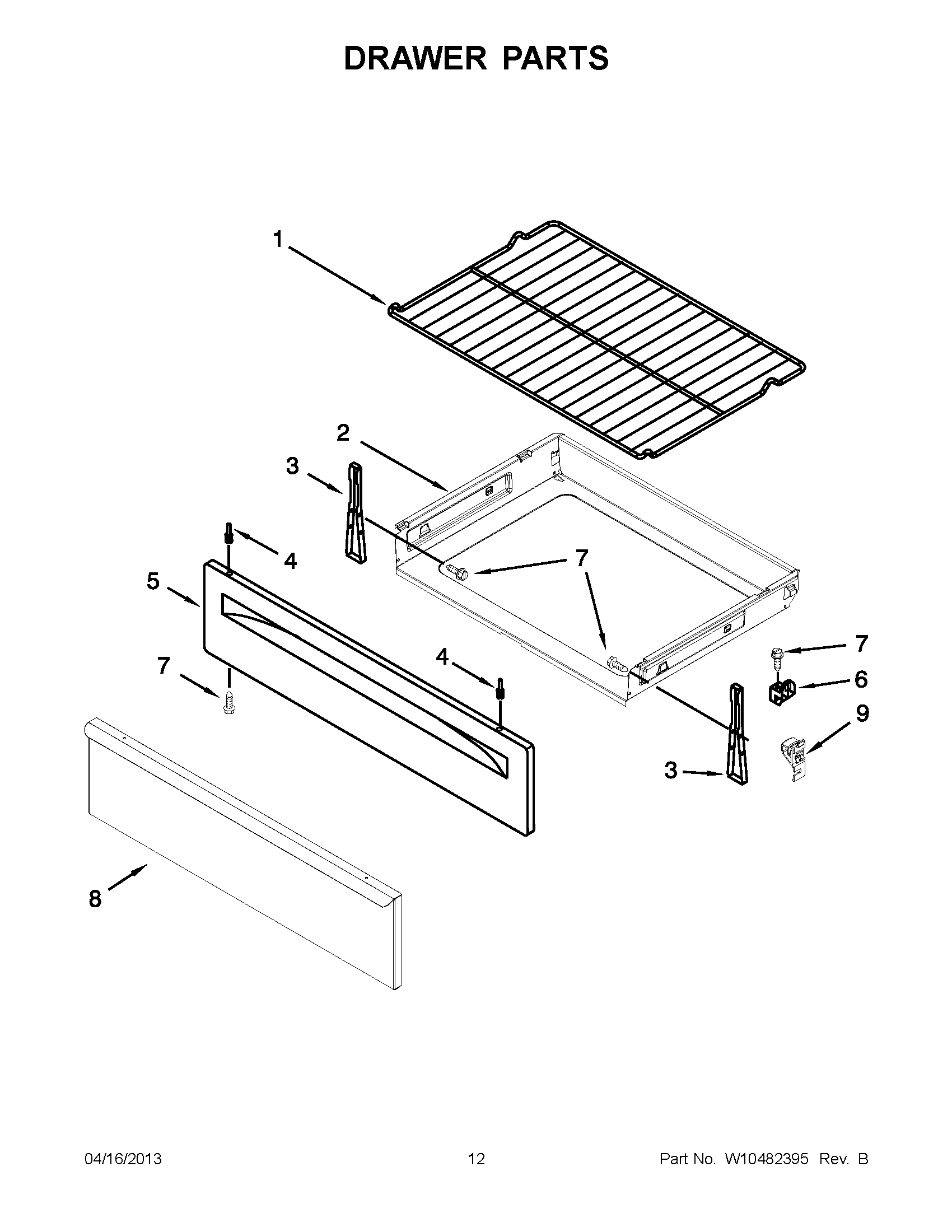

MGR7662WQ4 06 – DRAWER PARTS

MGR7662WQ4 06 – DRAWER PARTS

Written by

in

MGR7662WQ4 06 – DRAWER PARTS

Products

PositionProduct
1RACK, OVEN
2MAY W10300032
3BRACKET, DRAWER MOUNTING (WHITE MODEL)
3BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
4RIVET, PUSH (BLACK)
4RIVET, PUSH (WHITE)
5PANEL, DRAWER FRONT (WHITE)
5PANEL, DRAWER (BLACK)
5MAY 8272502
6GLIDE, REAR DRAWER
7SCREW
8MAY W10244872
9GLIDE, DRAWER
