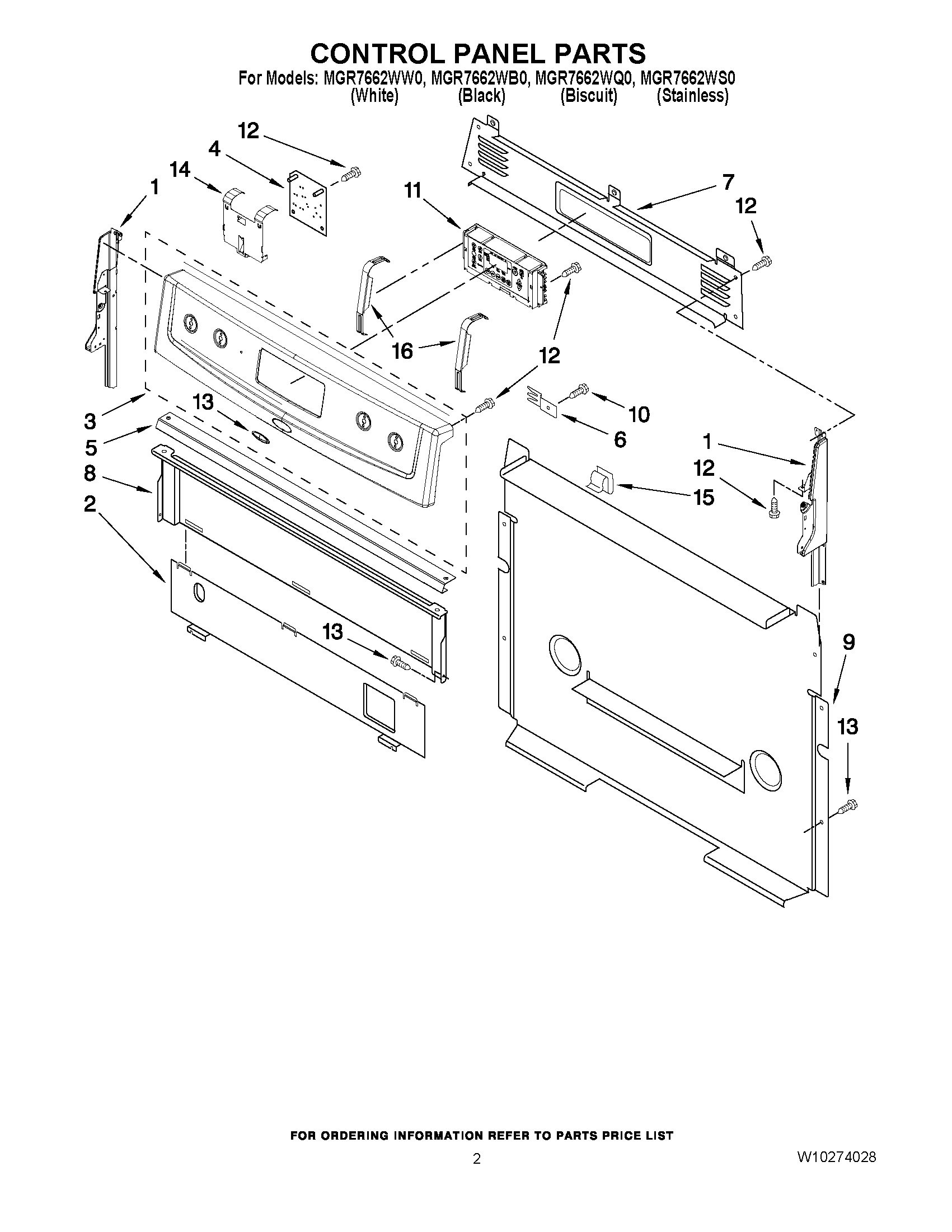

MGR7662WS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
1	MAY W10184436
1	MAY W10184435
2	SHIELD, HEAT
3	MAY W10225559
3	MAY W10111301
3	MAY W10225558
3	PANEL, CONSOLE (STAINLESS STEEL)
4	MAY 9758080
5	BRKT-MNTG,CONSOLE
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11	MAY W10236249
11	MAY W10236250
11	CONTROL, RANGE (BISCUIT (LCC 190))
12	SCREW
13	MAY W10199708
14	Brkt-Mntg, DSI
15	MAY 8273564
16	BRACKET, MOUNTING, EOC
