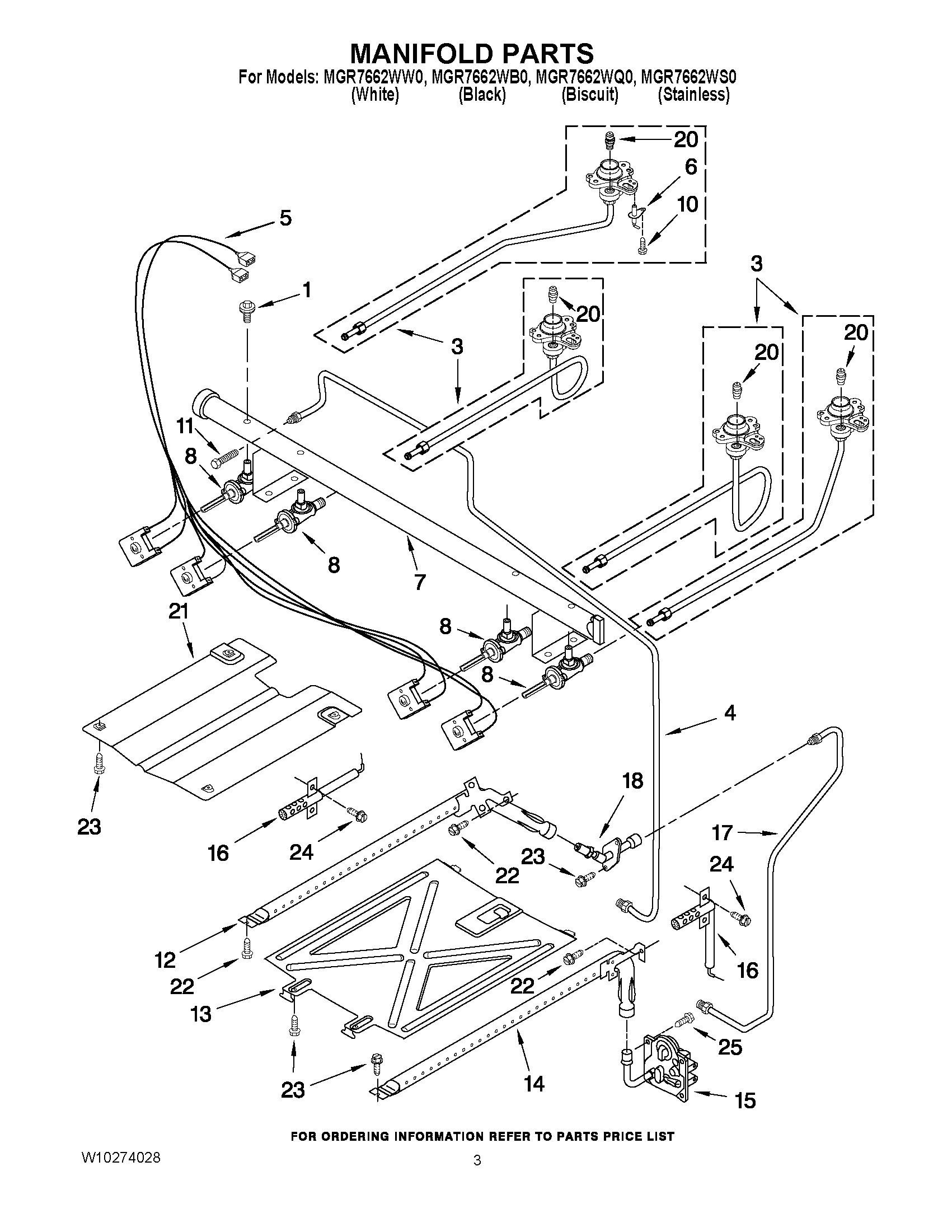

MGR7662WS0 03 – MANIFOLD PARTSadmin2025-04-26T09:14:17+00:00MGR7662WS0 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | SPUDS, LP GAS (SET OF 4) |
| 1 | MAY 8273096 |
| 3 | TUBING, BURNER (W/ORIFICE (RIGHT REAR)) |
| 3 | TUBING, BURNER W/ORIFICE (12K (RIGHT FRONT)) |
| 3 | TUBING, BURNER (W/ORIFICE (LEFT FRONT)) |
| 3 | TUBING, BURNER (W/ORIFICE (LEFT REAR)) |
| 4 | Tubing (Manifold to Regulator) |
| 5 | MAY 8523406 |
| 6 | Electrode (4) |
| 7 | MAY W10169928 |
| 8 | Valve (LF - RF - LR) |
| 8 | VALVE(RIGHT REAR) |
| 10 | MAY 8273062 |
| 11 | BOLT |
| 12 | BURNER, BROILER |
| 13 | SPREADER, FLAME (OVEN) |
| 14 | BURNER, BAKE |
| 15 | Valve/Regulator |
| 16 | ELECTRODE, BAKE |
| 16 | Igniter (Broil) |
| 17 | MAY 8272222 |
| 18 | MAY 3186489 |
| 20 | ORIFICE, BURNER (12K) (RIGHT FRONT) |
| 20 | MAY W10185023 |
| 20 | ORIFICE, BURNER (RIGHT REAR) |
| 20 | ORIFICE, NATURAL (9.5K) (LEFT REAR) |
| 21 | SPREADER, FLAME (BROILER) |
| 22 | SCREW |
| 23 | Screw |
| 24 | SCREW |
| 25 | SCREW |
