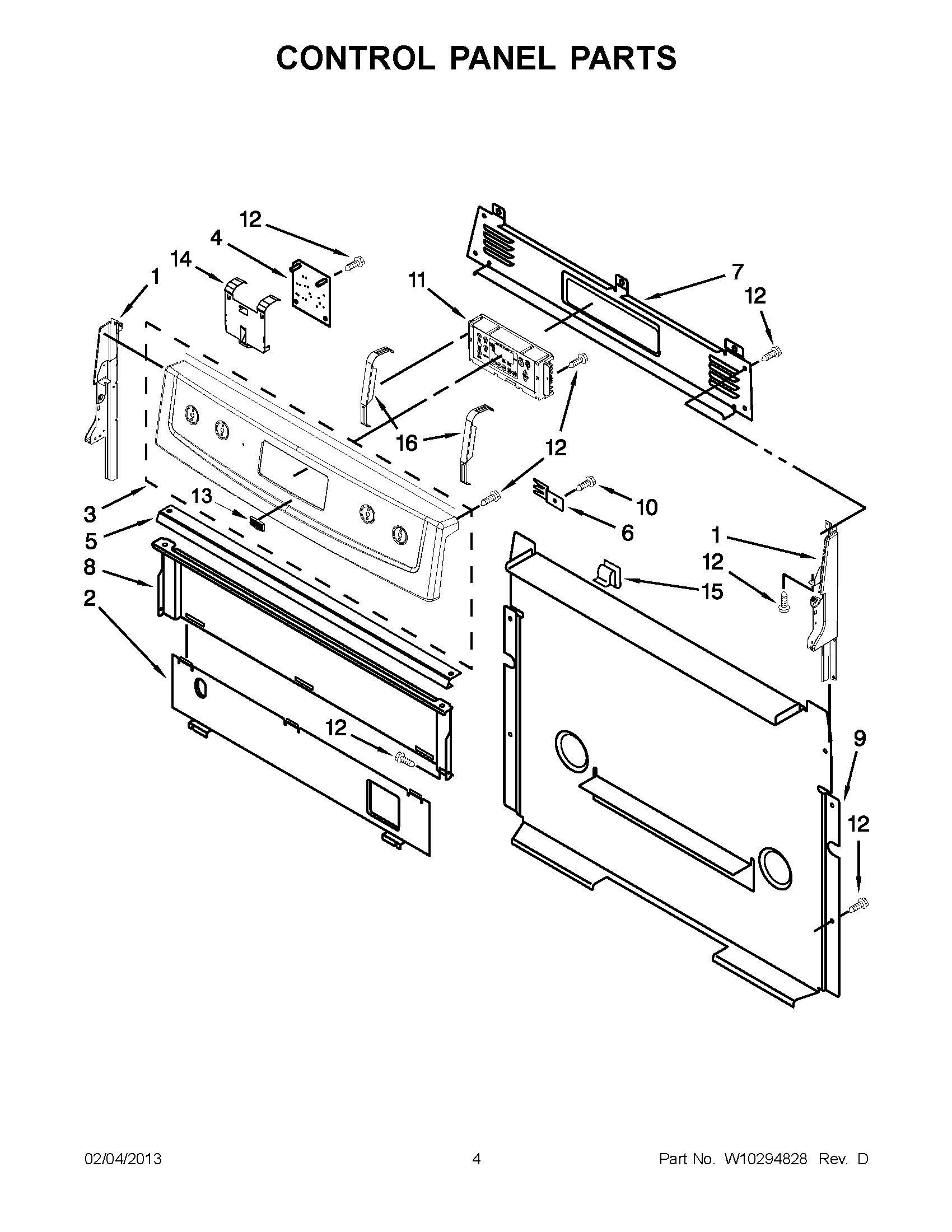

MGR7662WS1 02 – CONTROL PANEL PARTSadmin2025-04-26T09:13:03+00:00MGR7662WS1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 1 | MAY W10184436 |
| 1 | MAY W10184435 |
| 2 | SHIELD, HEAT |
| 3 | MAY W10292029 |
| 3 | MAY W10292030 |
| 3 | MAY W10292031 |
| 3 | MAY W10292032 |
| 4 | MAY 9758080 |
| 5 | BRKT-MNTG,CONSOLE |
| 6 | BRACKET, REAR COOKTOP |
| 7 | COVER, UPPER |
| 8 | SHIELD, HEAT |
| 9 | COVER, BACK |
| 10 | SCREW |
| 11 | MAY W10236249 |
| 11 | MAY W10236250 |
| 11 | CONTROL, RANGE (BISCUIT (LCC 190)) |
| 12 | SCREW |
| 13 | MAY W10199708 |
| 14 | Brkt-Mntg, DSI |
| 15 | MAY 8273564 |
| 16 | BRACKET, MOUNTING, EOC |
