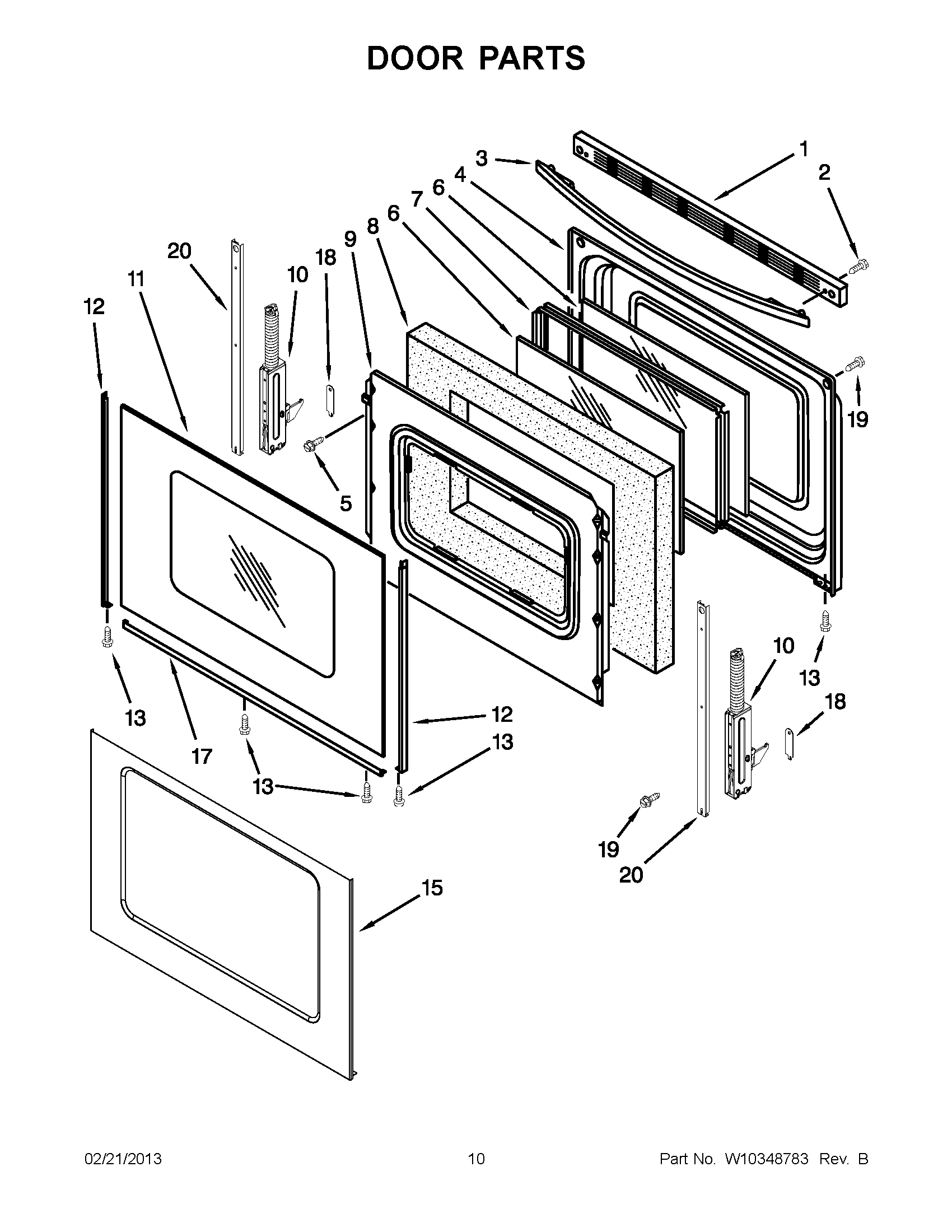

MGR7662WS2 05 – DOOR PARTS

MGR7662WS2 05 – DOOR PARTS

Written by

in

MGR7662WS2 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1	MAY W10310923
1	TRIM, TOP (WHITE)
2	SCREW
3	MAY W10323586
3	MAY W10323581
3	MAY W10323584
3	MAY W10171750
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, DOOR (PASSIVE)
10	HINGE, ACTIVE (WITH SPRING)
11	MAY W10106405
11	GLASS, OUTER (STAINLESS)
11	GLASS, OUTER (WHITE)
11	MAY W10106406
12	MAY 8523167
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	MAY 8523173
12	TRIM, SIDE (BLACK, LEFT HAND)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM, SIDE (WHITE (RIGHT))
13	MAY 3196160
15	GLASS, OUTER (STAINLESS)
17	TRIM, LOWER (BLACK)
17	MAY 8523178
17	TRIM, LOWER (WHITE)
18	Clip,Door Mntg(2)
19	MAY W10031780
20	STRAP, DOOR
