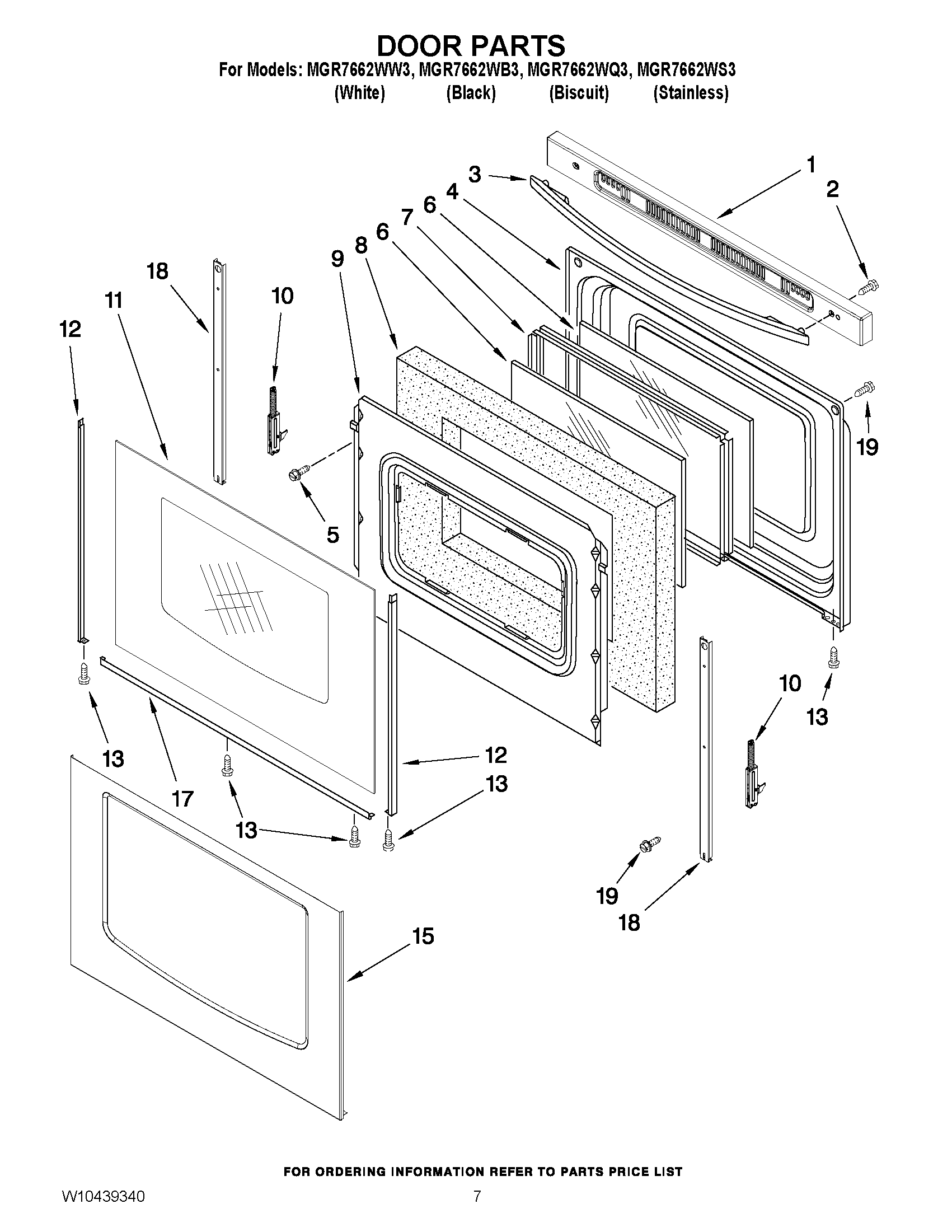

MGR7662WS3 05 – DOOR PARTS

MGR7662WS3 05 – DOOR PARTS

Written by

in

MGR7662WS3 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1MAY W10310923
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323584
3MAY W10171750
3MAY W10323581
3MAY W10323586
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (WHITE)
11GLASS, OUTER (STAINLESS)
11MAY W10106406
11MAY W10106405
12MAY 8523173
12MAY 8523167
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (LEFT))
13MAY 3196160
15GLASS, OUTER (STAINLESS)
17TRIM, LOWER (WHITE)
17TRIM, LOWER (BLACK)
17MAY 8523178
18STRAP, DOOR
19MAY W10031780
