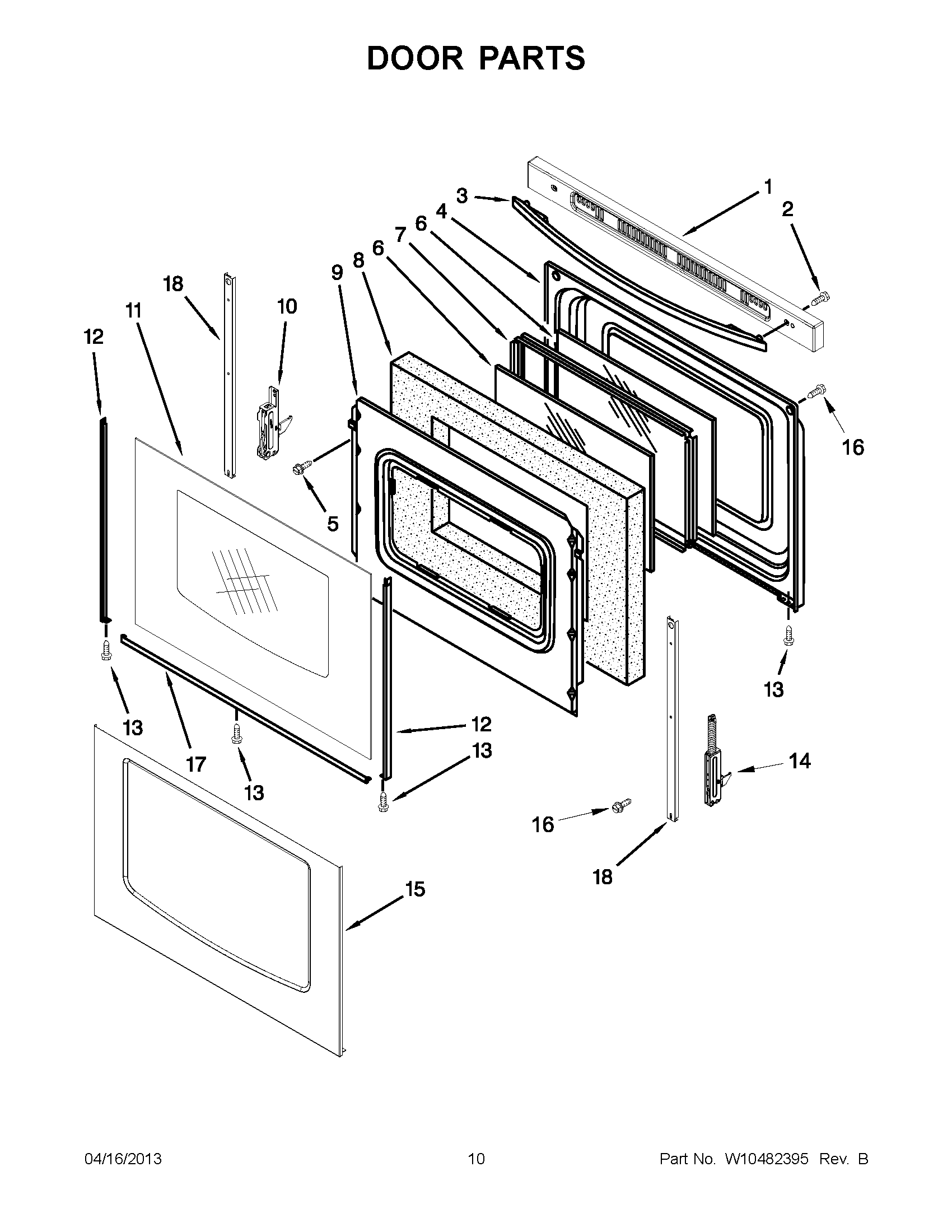

MGR7662WS4 05 – DOOR PARTS

MGR7662WS4 05 – DOOR PARTS

Written by

in

MGR7662WS4 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1MAY W10310923
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323586
3MAY W10323581
3MAY W10323584
3MAY W10171750
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, DOOR (PASSIVE)
11MAY W10106406
11GLASS, OUTER (WHITE)
11MAY W10106405
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
12MAY 8523167
12MAY 8523173
12TRIM, SIDE (BLACK, RIGHT HAND)
13MAY 3196160
14HINGE, ACTIVE (WITH SPRING)
15GLASS, OUTER (STAINLESS)
16MAY W10031780
17TRIM, LOWER (WHITE)
17MAY 8523178
17TRIM, LOWER (BLACK)
18STRAP, DOOR
