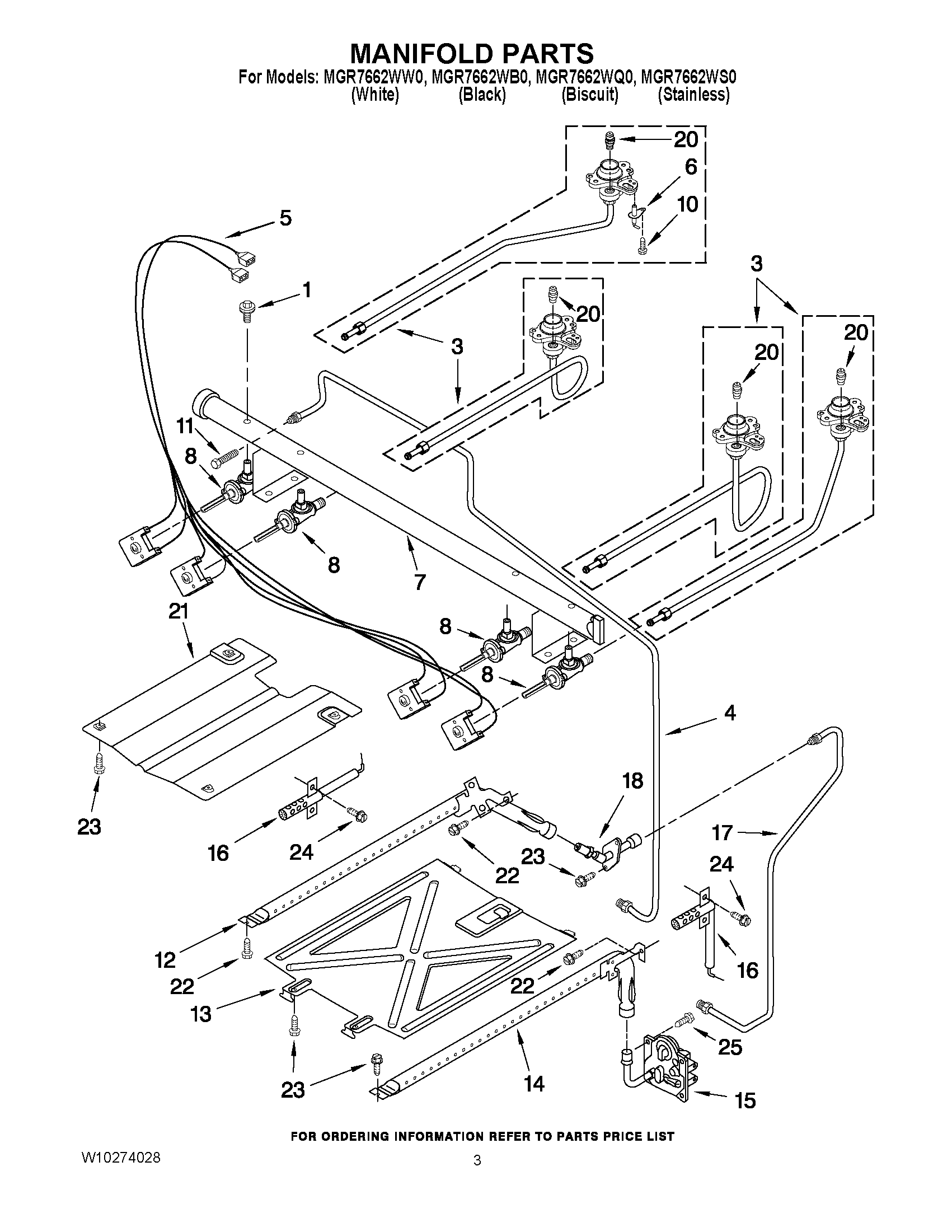

MGR7662WW0 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (SET OF 4)
1	MAY 8273096
3	TUBING, BURNER (W/ORIFICE (RIGHT REAR))
3	TUBING, BURNER W/ORIFICE (12K (RIGHT FRONT))
3	TUBING, BURNER (W/ORIFICE (LEFT FRONT))
3	TUBING, BURNER (W/ORIFICE (LEFT REAR))
4	Tubing (Manifold to Regulator)
5	MAY 8523406
6	Electrode (4)
7	MAY W10169928
8	Valve (LF – RF – LR)
8	VALVE(RIGHT REAR)
10	MAY 8273062
11	BOLT
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	Valve/Regulator
16	ELECTRODE, BAKE
16	Igniter (Broil)
17	MAY 8272222
18	MAY 3186489
20	ORIFICE, BURNER (12K) (RIGHT FRONT)
20	MAY W10185023
20	ORIFICE, BURNER (RIGHT REAR)
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
23	Screw
24	SCREW
25	SCREW
