MGR7662WW1 06 – DRAWER & BROILER PARTS
Written by
in

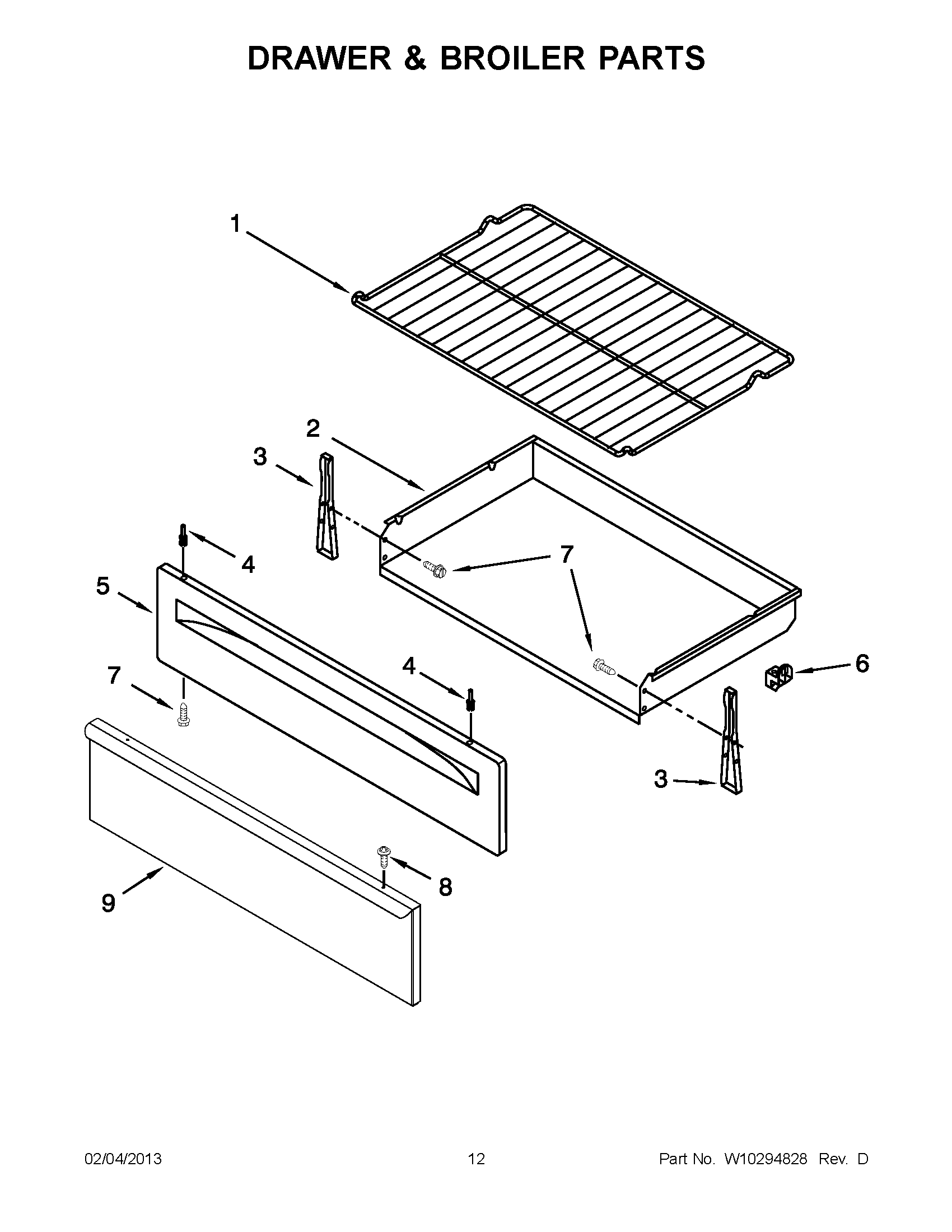

MGR7662WW1 06 – DRAWER & BROILER PARTS
Products
Position
Product
1
RACK, OVEN
2
MAY 9761031
3
BRACKET, DRAWER (SS ONLY)
3
Bracket, Drawer(2)
4
RIVET, PUSH (WHITE)
4
RIVET, PUSH (BLACK)
5
MAY W10022100
5
MAY W10022090
5
MAY W10022110
6
GLIDE, DRAWER
7
Screw (Black)
8
SCREW
9
MAY W10244872
←
