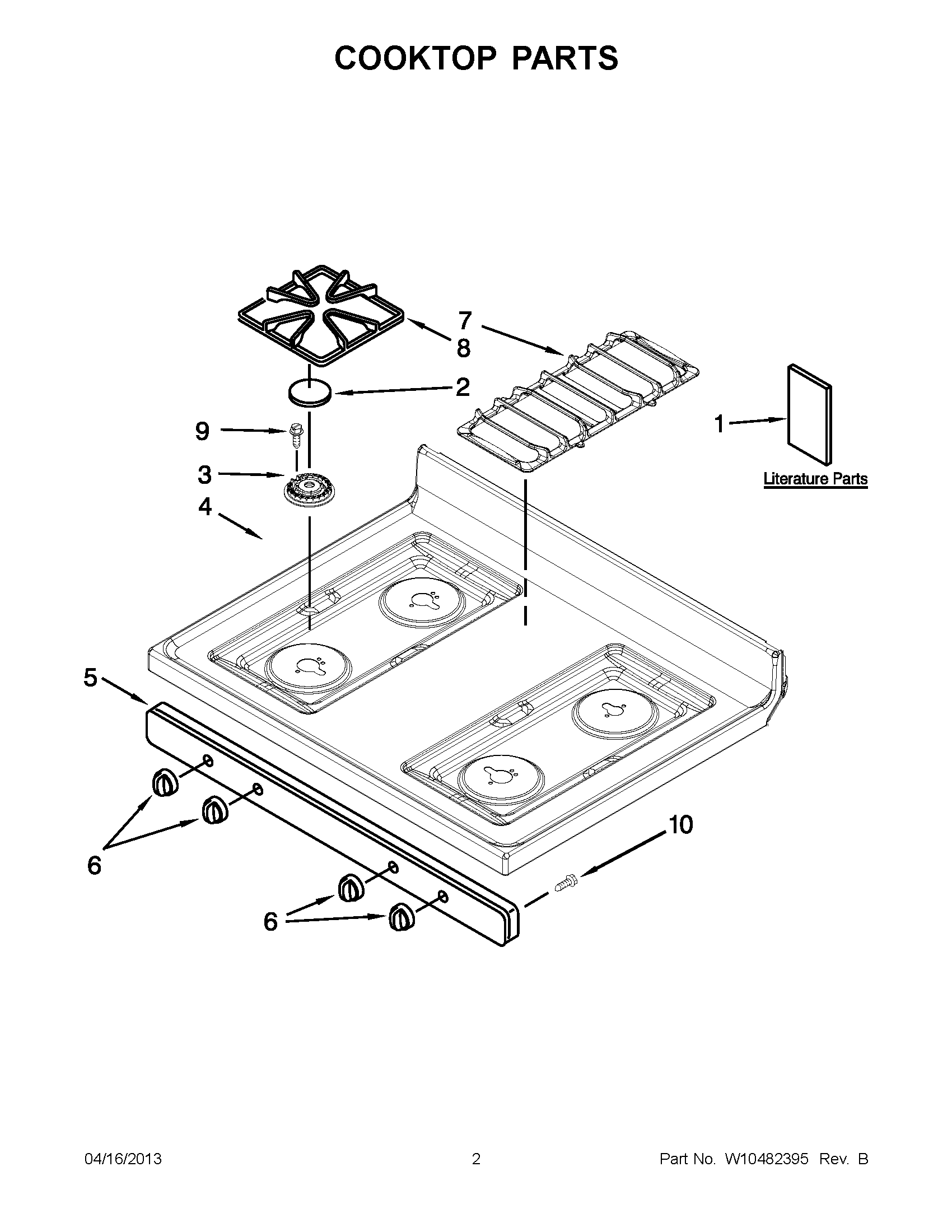

MGR7662WW4 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10357517
1MAY W10526975
1MAY W10456419
2CAP, BURNER (WETSTONE)
2CAP, BURNER (BLACK)
3MAY W10406283
3HEAD, BURNER (6K) (LEFT REAR)
3HEAD, BURNER (12K) (LEFT FRONT AND RIGHT REAR)
4MAY 8272253
4MAY 8272251
4MAY 8272743
5MAY 8523854
5MAY 8523856
5MAY 8523855
6KNOB, CONTROL (BISCUIT)
6MAY W10200192
6KNOB, BURNER (BLACK)
7MAY 8522854
7MAY W10165812
8GRATE, BURNER (STALLION BLACK)
8GRATE, BURNER (WETSTONE)
9SCREW
10MAY 3196557
