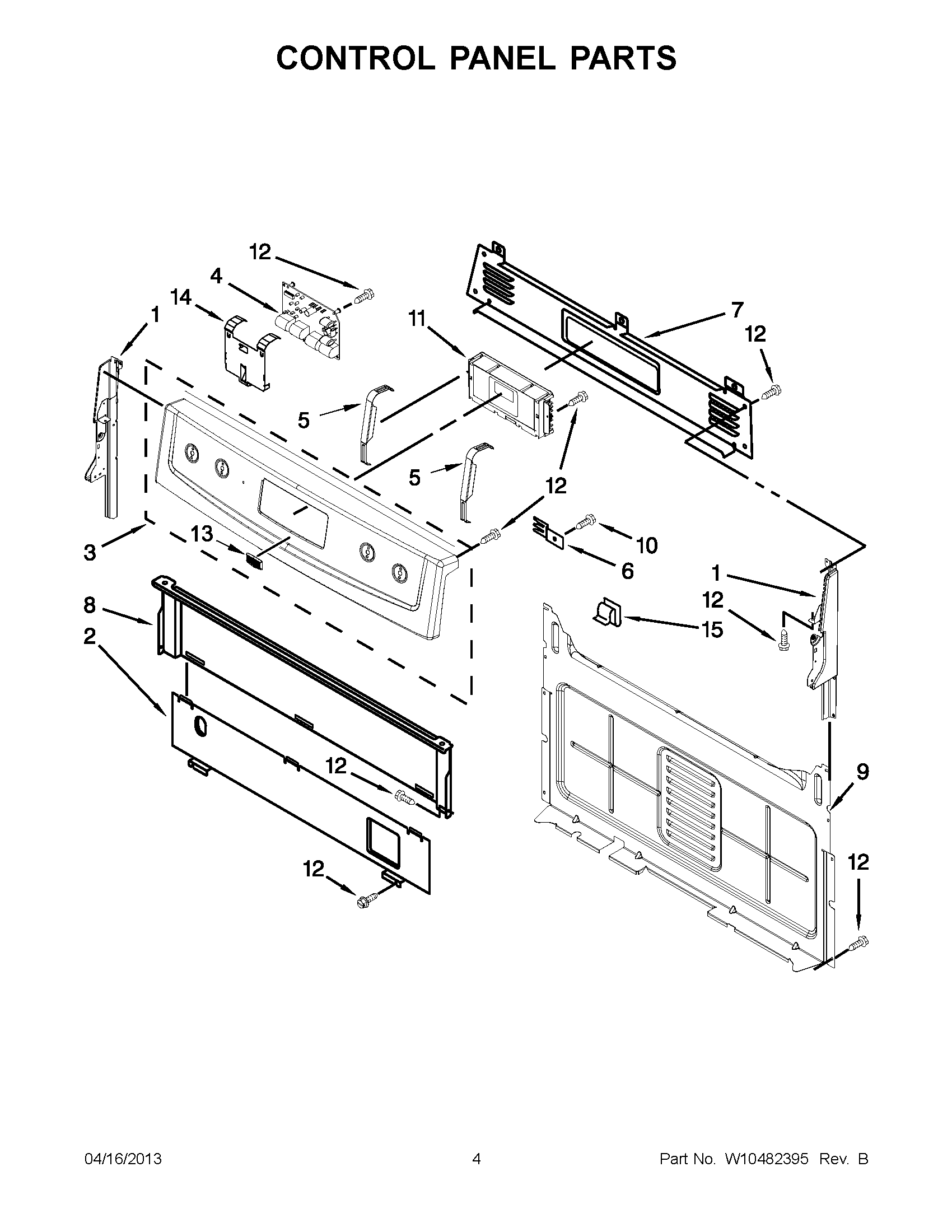

MGR7662WW4 02 – CONTROL PANEL PARTS

MGR7662WW4 02 – CONTROL PANEL PARTS

Written by

in

MGR7662WW4 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
1	MAY W10184436
1	MAY W10184435
2	SHIELD, HEAT
3	MAY W10292029
3	MAY W10292030
3	MAY W10292031
3	MAY W10292032
4	MAY W10331686
5	MAY W10324410
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11	MAY W10271768
11	MAY W10271769
11	CONTROL, RANGE (BISCUIT (LCC190))
12	SCREW
13	MAY W10199708
14	Brkt-Mntg, DSI
15	CLIP, GAS WIRING
