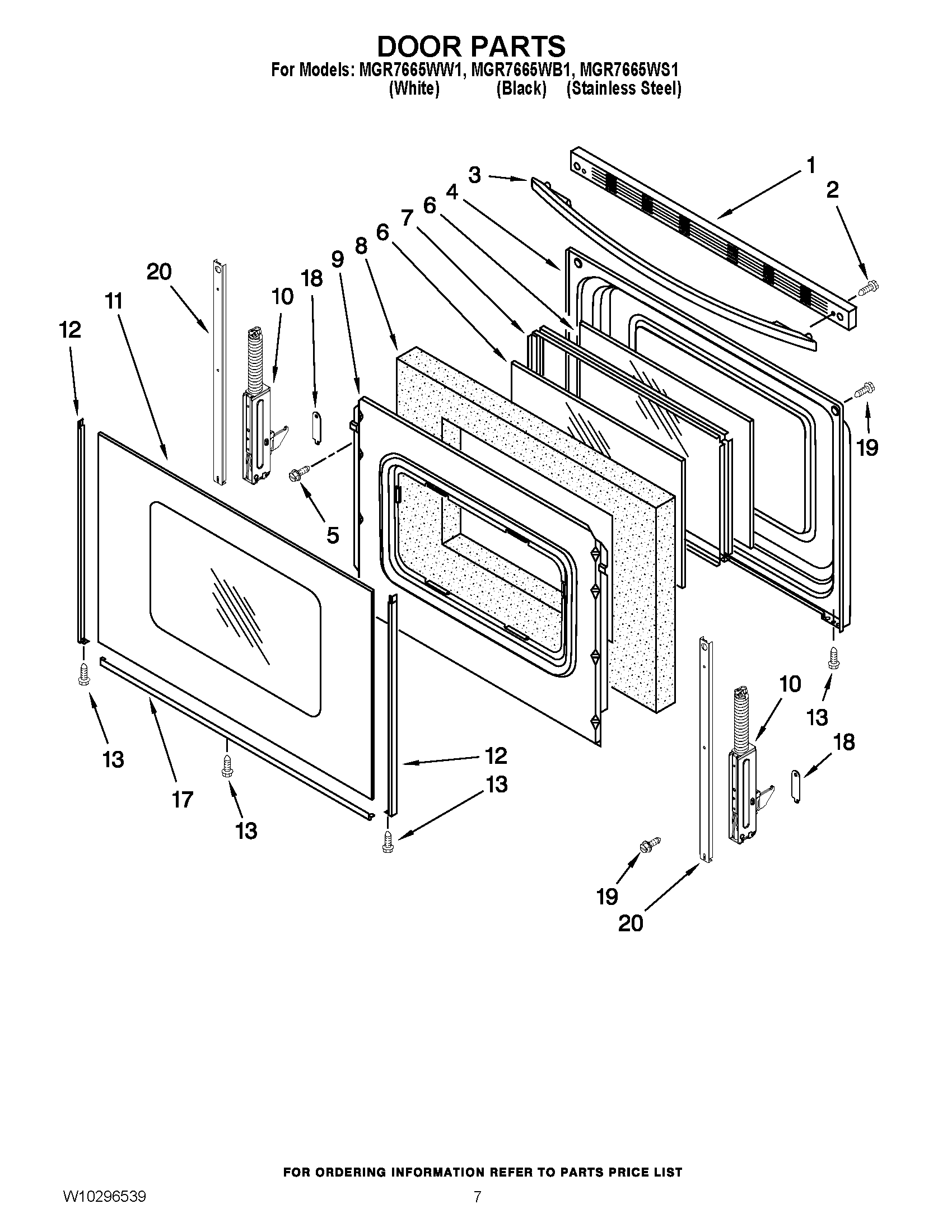

MGR7665WB1 05 – DOOR PARTS

MGR7665WB1 05 – DOOR PARTS

Written by

in

MGR7665WB1 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323584
3MAY W10171750
3MAY W10323581
4LINER, DOOR
5SCREW
6GLASS, INNER
7MAY 3186289
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (WHITE)
11MAY W10106405
11GLASS, OUTER (STAINLESS)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
17TRIM, LOWER (WHITE)
17TRIM, LOWER (BLACK)
18Clip,Door Mntg(2)
19MAY W10031780
20STRAP, DOOR
