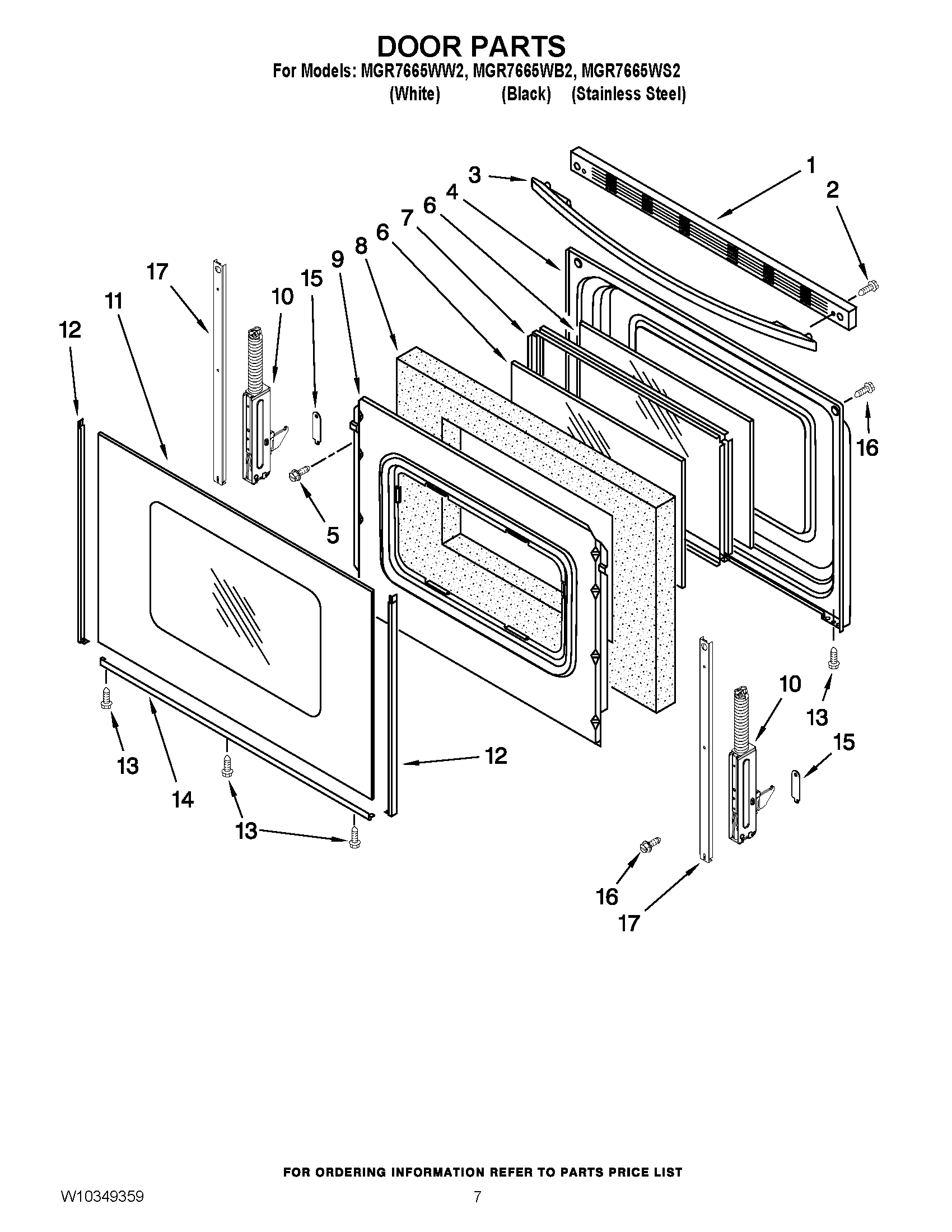

MGR7665WB2 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
1TRIM, TOP (BLACK)
2SCREW
3MAY W10171750
3MAY W10323584
3MAY W10323581
4LINER, DOOR
5SCREW
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (WHITE)
11GLASS, OUTER (STAINLESS)
11MAY W10106405
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
13SCREW
14TRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15Clip,Door Mntg(2)
16SCREW
17STRAP, DOOR
