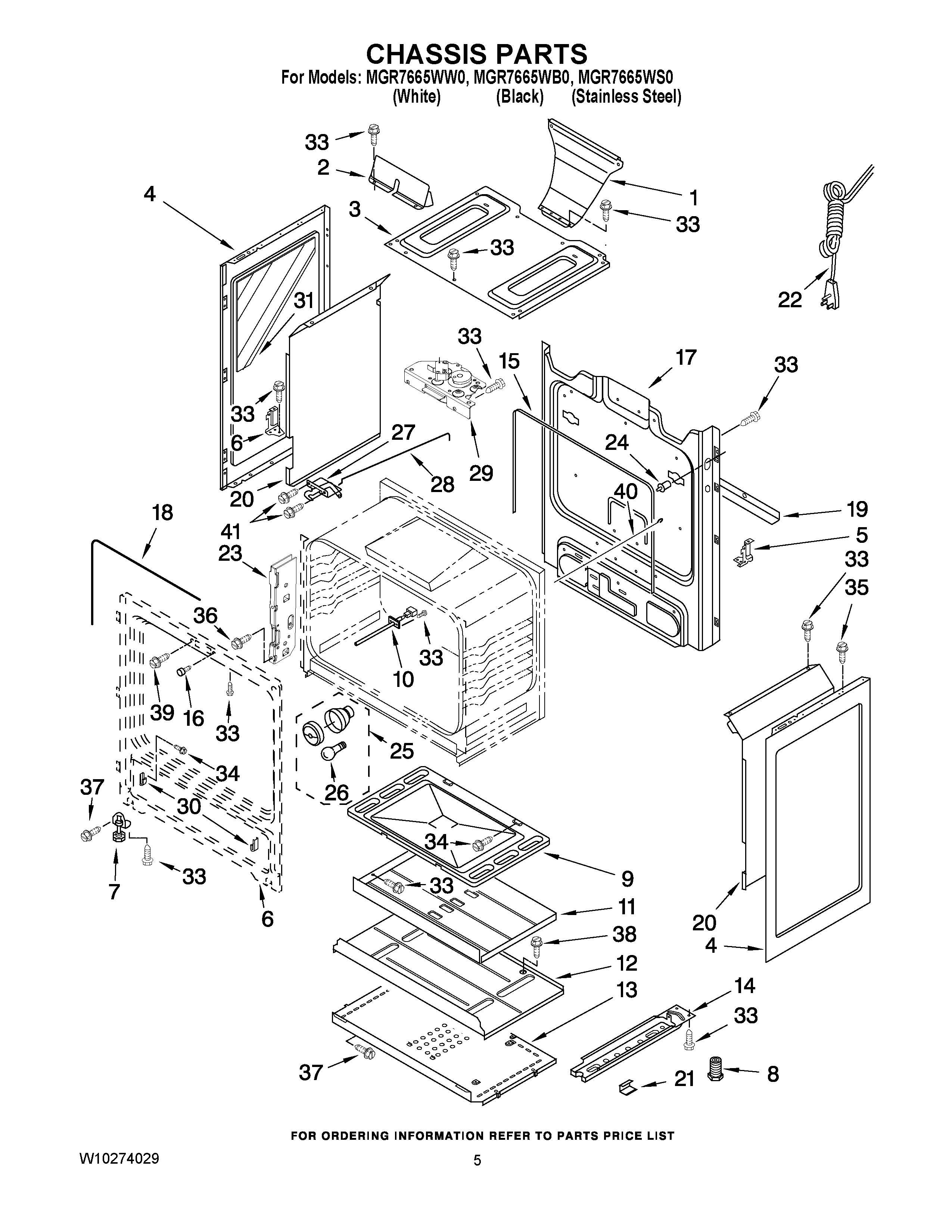

MGR7665WS0 04 – CHASSIS PARTS

MGR7665WS0 04 – CHASSIS PARTS

Written by

in

MGR7665WS0 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 8272613
NI	INSULATION, WRAP
NI	INSULATION, BACK
1	BOX, FLUE
2	SHIELD, FLUE
3	BOX-BURNER, GAS SEALED
4	MAY 8053832
4	Panel, Side (2) (White)
5	BRACKET, MANIFOLD
6	LINER (NOT A SERVICEABLE PART)
7	MAY 3196037
8	FOOT, LEVELING
9	BOTTOM, OVEN
10	SENSOR, OVEN
11	BAFFLE, BURNER OVEN
12	SHIELD, HEAT
13	SHIELD, LOWER
14	RAIL, BASE
15	MAY W10008830
16	SPACER, DOOR
17	MAY W10222733
18	MAY 8522416
19	MAY 8053971
20	MAY 9761449
20	MAY 9761448
21	CLIP, PANEL
22	Cord, Power
23	BRKT – MOUNTING
24	MAY 9757262
25	MAY 3196701
26	BULB, OVEN LIGHT
27	ASSEMBLY, DOOR LATCH (FRONT)
28	ROD, PUSH LATCH
29	ASSEMBLY, DOOR LATCH (REAR)
30	Glide, Drawer
31	MAY W10182346
33	SCREW
34	MAY 3196152
35	Screw (White)
36	MAY W10031780
37	Screw
38	Screw
39	Screw (Black)
40	ROD, DOOR SWITCH
