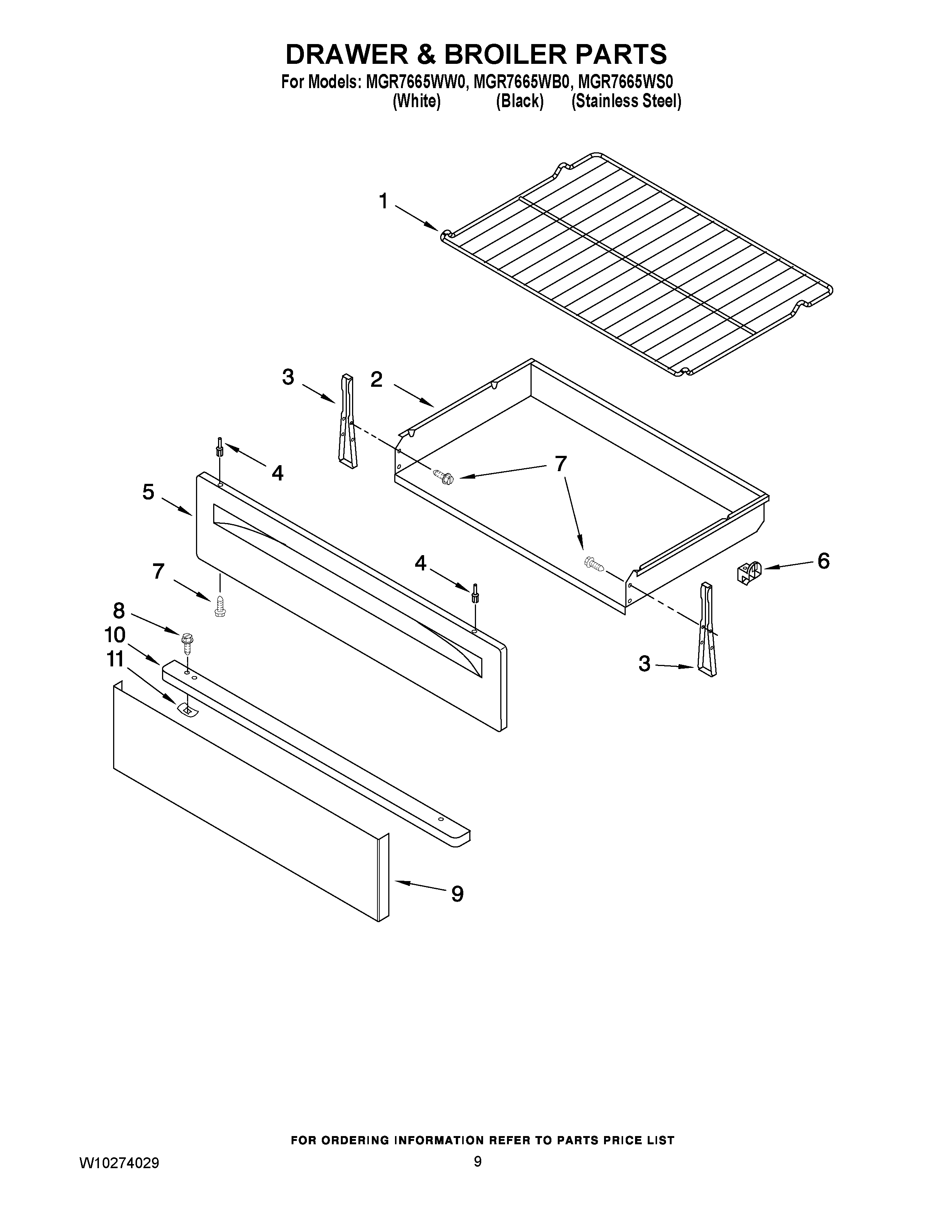

MGR7665WS0 06 – DRAWER & BROILER PARTS

MGR7665WS0 06 – DRAWER & BROILER PARTS

Written by

in

MGR7665WS0 06 – DRAWER & BROILER PARTS

Products

PositionProduct
1MAY W10179196
2MAY 9761031
3Bracket, Drawer(2)
4RIVET, PUSH (WHITE)
4RIVET, PUSH (BLACK)
5MAY W10022100
5PANEL, DRAWER (BLACK)
5MAY W10022090
6GLIDE, DRAWER
7Screw (Black)
8SCREW
9PANEL (STLS STEEL)
10Handle(Stls.Model)
11CLIP(STLS.MODEL)
