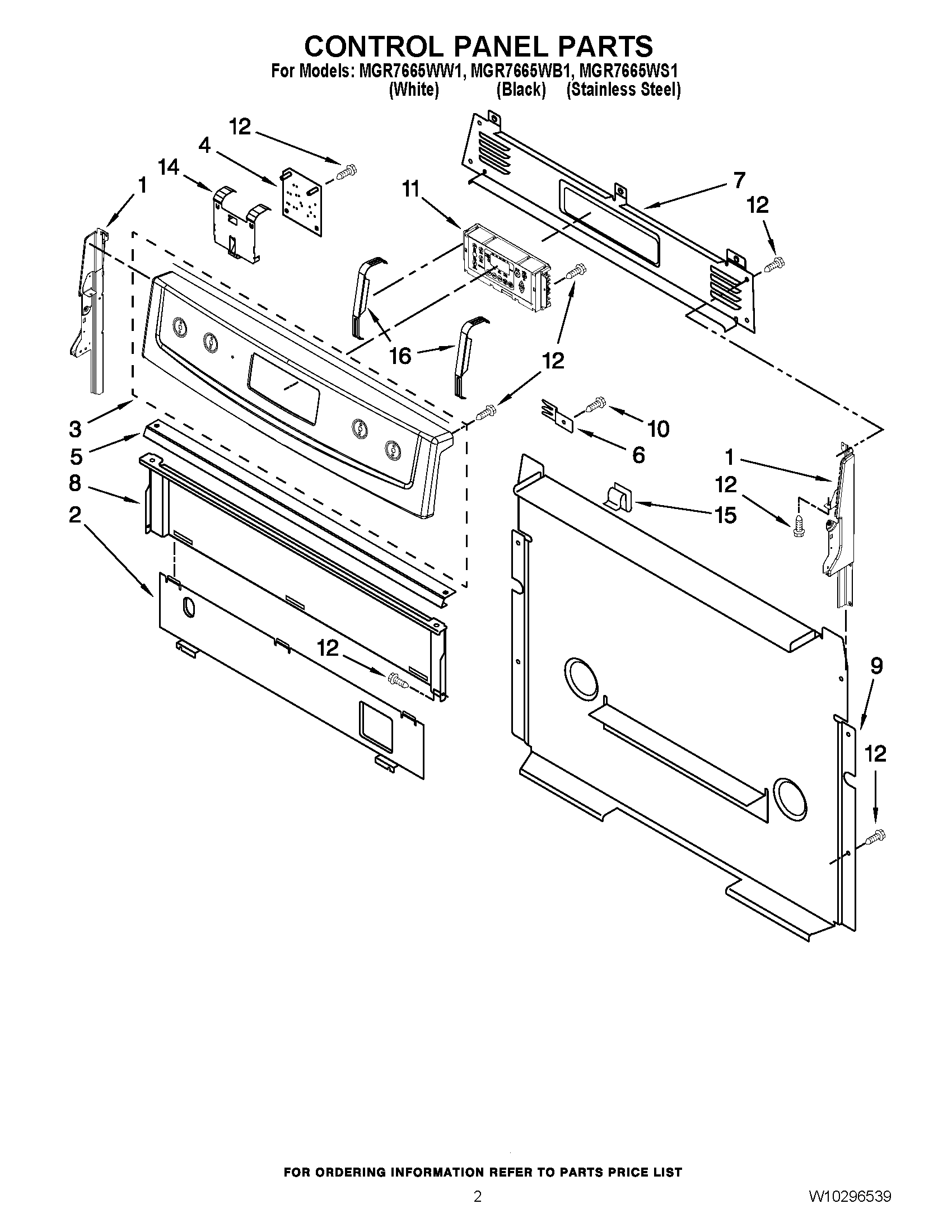

MGR7665WS1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	SHIELD, HEAT
3	MAY W10292029
3	MAY W10292030
3	MAY W10292031
4	MAY 9758080
5	BRKT-MNTG,CONSOLE
6	BRACKET, REAR COOKTOP
7	COVER, UPPER
8	SHIELD, HEAT
9	COVER, BACK
10	SCREW
11	MAY W10271768
11	MAY W10271769
12	SCREW
14	Brkt-Mntg, DSI
15	MAY 8273564
16	BRACKET, MOUNTING, EOC
