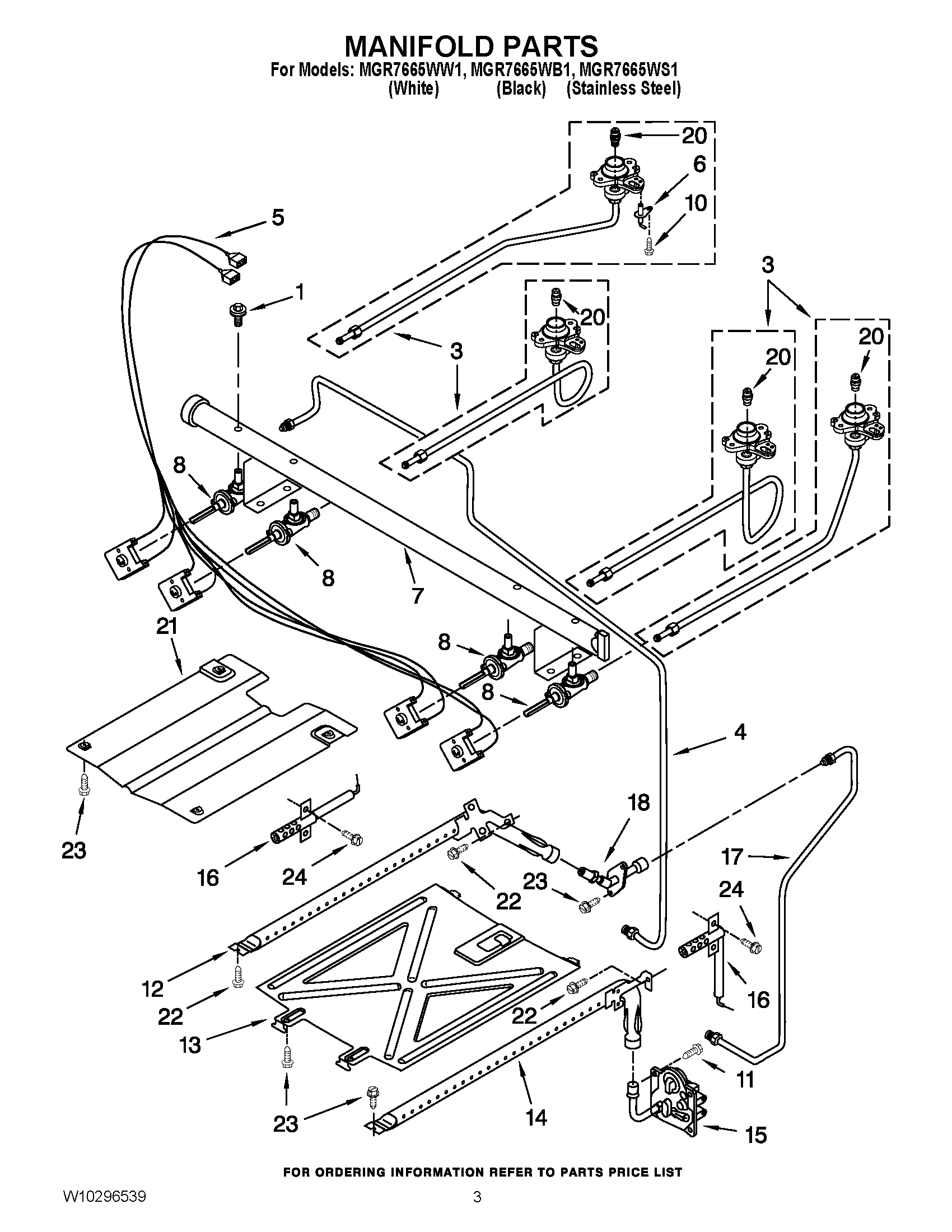

MGR7665WS1 03 – MANIFOLD PARTS

Products

Position	Product
NI	SPUDS, LP GAS (KIT OF 4)
1	MAY 8273096
3	MAY W10170346
3	MAY W10170345
3	MAY W10157418
3	MAY W10157415
4	Tubing (Manifold to Regulator)
5	MAY 8523406
6	Electrode (4)
7	MAY W10169928
8	Valve (LF - RF - LR)
8	VALVE(RIGHT REAR)
8	VALVE (LF/RF)
10	MAY 8273062
11	SCREW
12	BURNER, BROILER
13	SPREADER, FLAME (OVEN)
14	BURNER, BAKE
15	Valve/Regulator
16	ELECTRODE, BAKE
16	Igniter (Broil)
17	MAY 8272222
18	MAY 3186489
20	ORIFICE, NATURAL (9.5K) (LEFT REAR)
20	ORIFICE, BURNER (LEFT FRONT)
20	ORIFICE, NATURAL (5K) (RIGHT REAR)
21	SPREADER, FLAME (BROILER)
22	SCREW
23	Screw
24	SCREW
