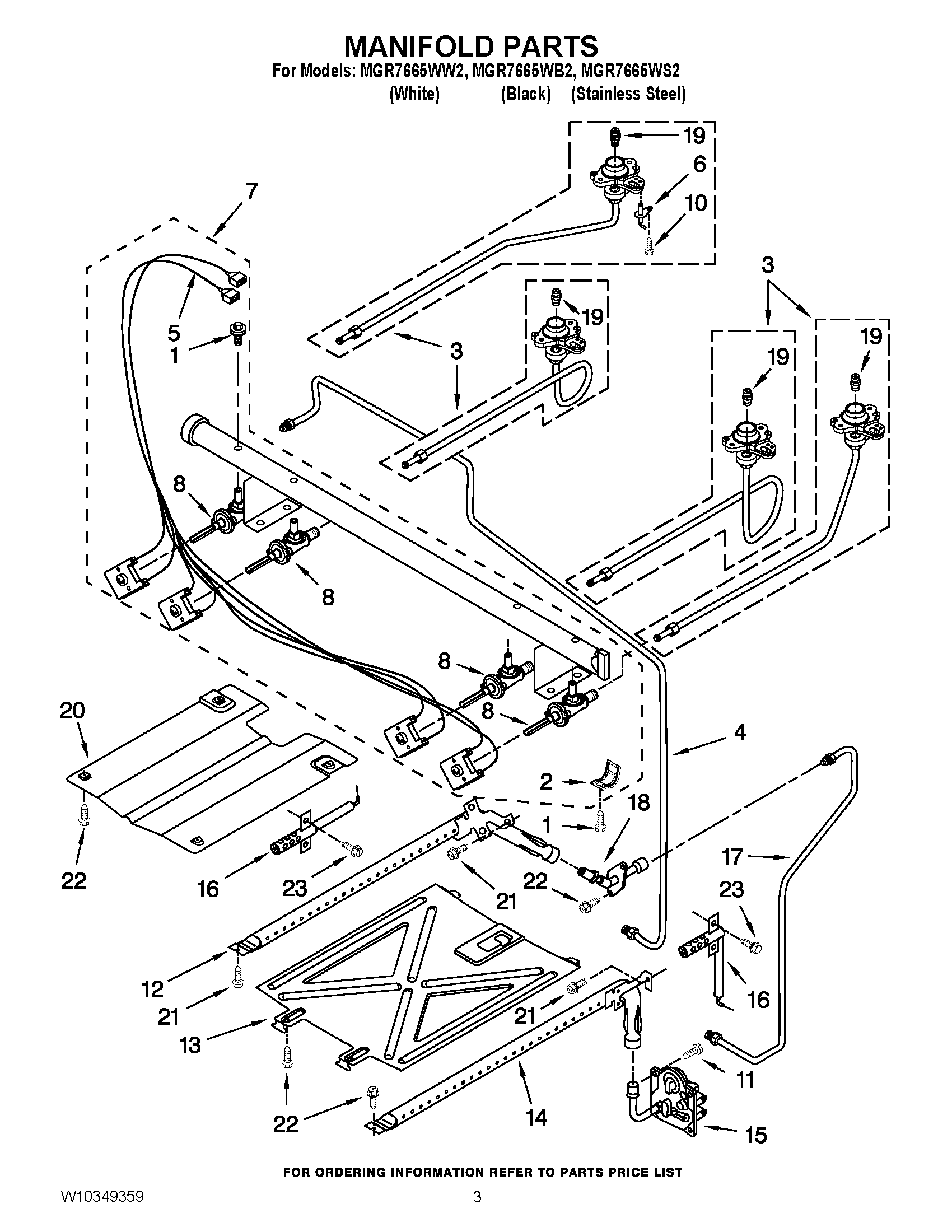

MGR7665WS2 03 – MANIFOLD PARTS

Products

PositionProduct
NISPUDS, LP GAS (KIT OF 4)
1SCREW, VALVE
2BRACKET, SADDLE VALVE
3MAY W10170346
3MAY W10170345
3MAY W10157415
3MAY W10157418
4TUBING (MANIFOLD TO REGULATOR)
5MAY W10295998
6Electrode (4)
7MAY W10314241
8VALVE, GAS (LEFT FRONT & RIGHT FRONT)
8VALVE, GAS (LEFT REAR)
8VALVE, GAS (RIGHT REAR)
10MAY 8273062
11SCREW
12BURNER, BROILER
13SPREADER, FLAME (OVEN)
14BURNER, BAKE
15Valve/Regulator
16Igniter (Broil)
16ELECTRODE, BAKE
17MAY 8272222
18MAY 3186489
19ORIFICE, NATURAL (9.5K) (LEFT REAR)
19ORIFICE, NATURAL (5K) (RIGHT REAR)
19ORIFICE, BURNER (LEFT FRONT)
20SPREADER, FLAME (BROILER)
21SCREW
22Screw
23SCREW
