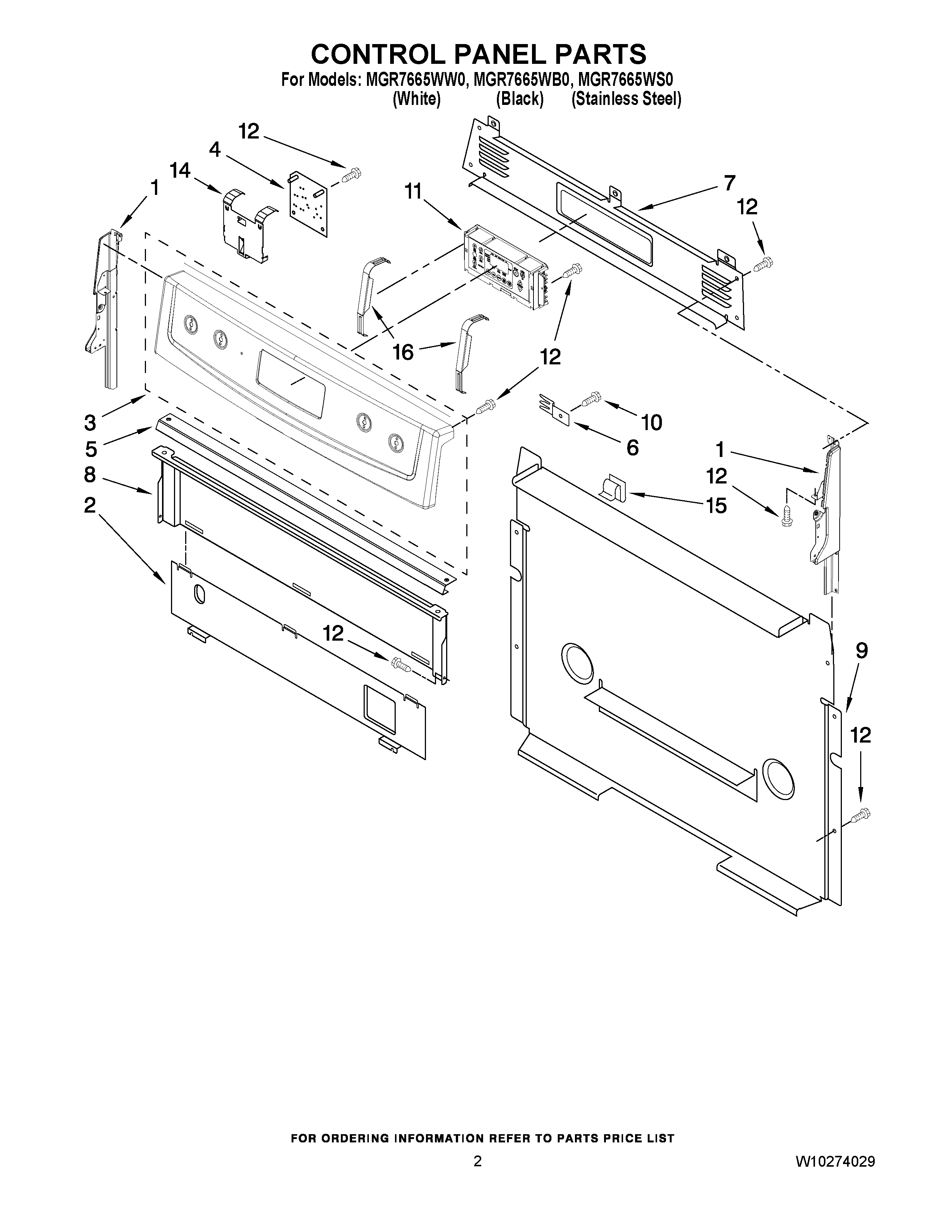

MGR7665WW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2SHIELD, HEAT
3MAY W10111301
3PANEL, CONSOLE (STAINLESS STEEL)
3MAY W10225558
4MAY 9758080
5BRKT-MNTG,CONSOLE
6BRACKET, REAR COOKTOP
7COVER, UPPER
8SHIELD, HEAT
9COVER, BACK
10SCREW
11MAY W10236249
11MAY W10236250
12SCREW
14Brkt-Mntg, DSI
15MAY 8273564
16BRACKET, MOUNTING, EOC
