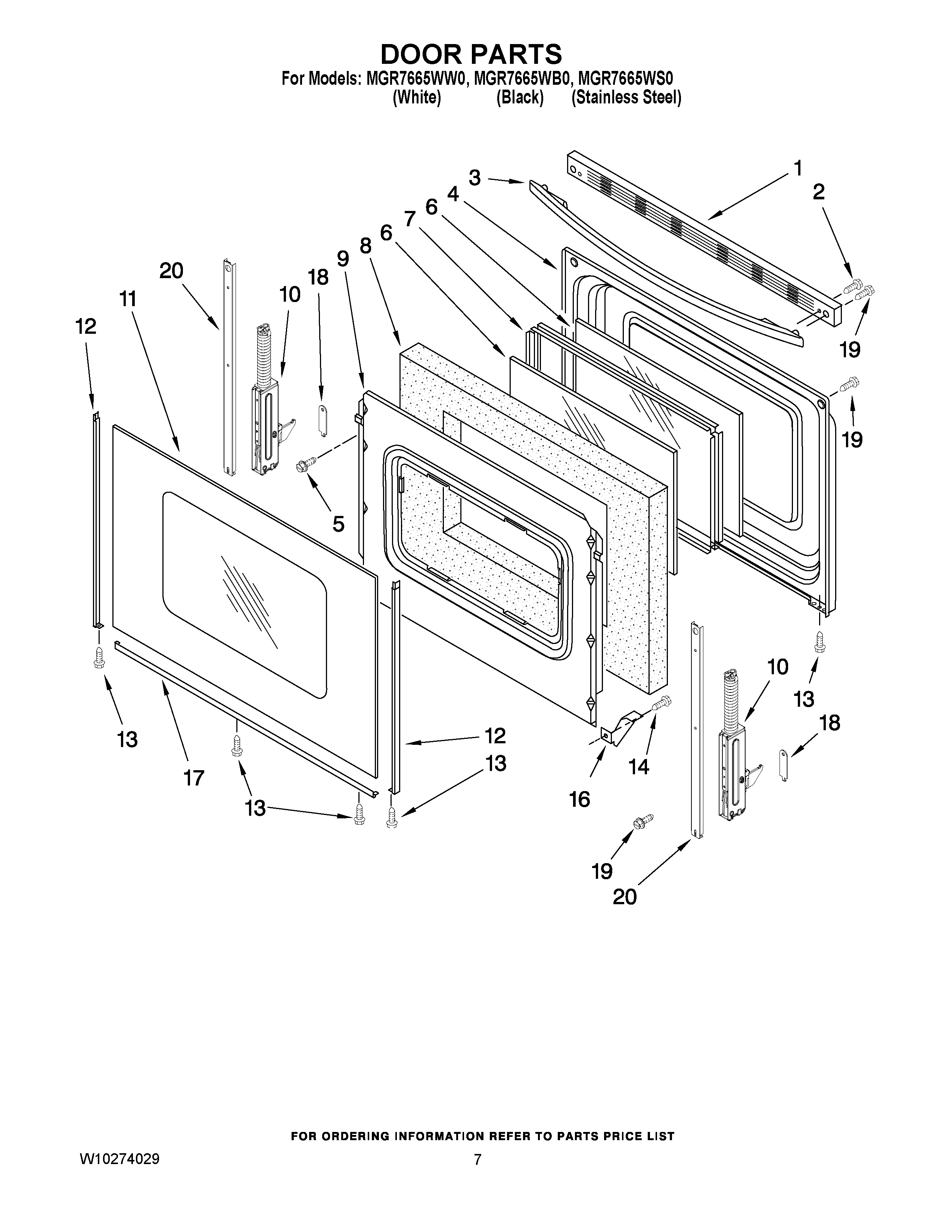

MGR7665WW0 05 – DOOR PARTS

MGR7665WW0 05 – DOOR PARTS

Written by

in

MGR7665WW0 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	SCREW
3	TRIM, TOP (BLACK)
3	MAY W10111310
3	MAY W10111309
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	MAY 3186289
8	MAY 8272618
9	RETAINER, INSULATION
10	Hinge, Door
11	GLASS, OUTER (STAINLESS)
11	GLASS, OUTER (WHITE)
11	MAY W10106405
12	TRIM, SIDE (BLACK, RIGHT HAND)
12	TRIM, SIDE (WHITE (LEFT))
12	TRIM SIDE (STAINLESS RH)
12	TRIM SIDE (STAINLESS LH)
12	TRIM, SIDE (WHITE (RIGHT))
12	TRIM, SIDE (BLACK, LEFT HAND)
13	MAY 3196160
14	SCREW
16	Bracket, Window(2)
17	TRIM, LOWER (WHITE)
17	TRIM, LOWER (BLACK)
18	Clip,Door Mntg(2)
19	MAY W10031780
20	STRAP, DOOR
