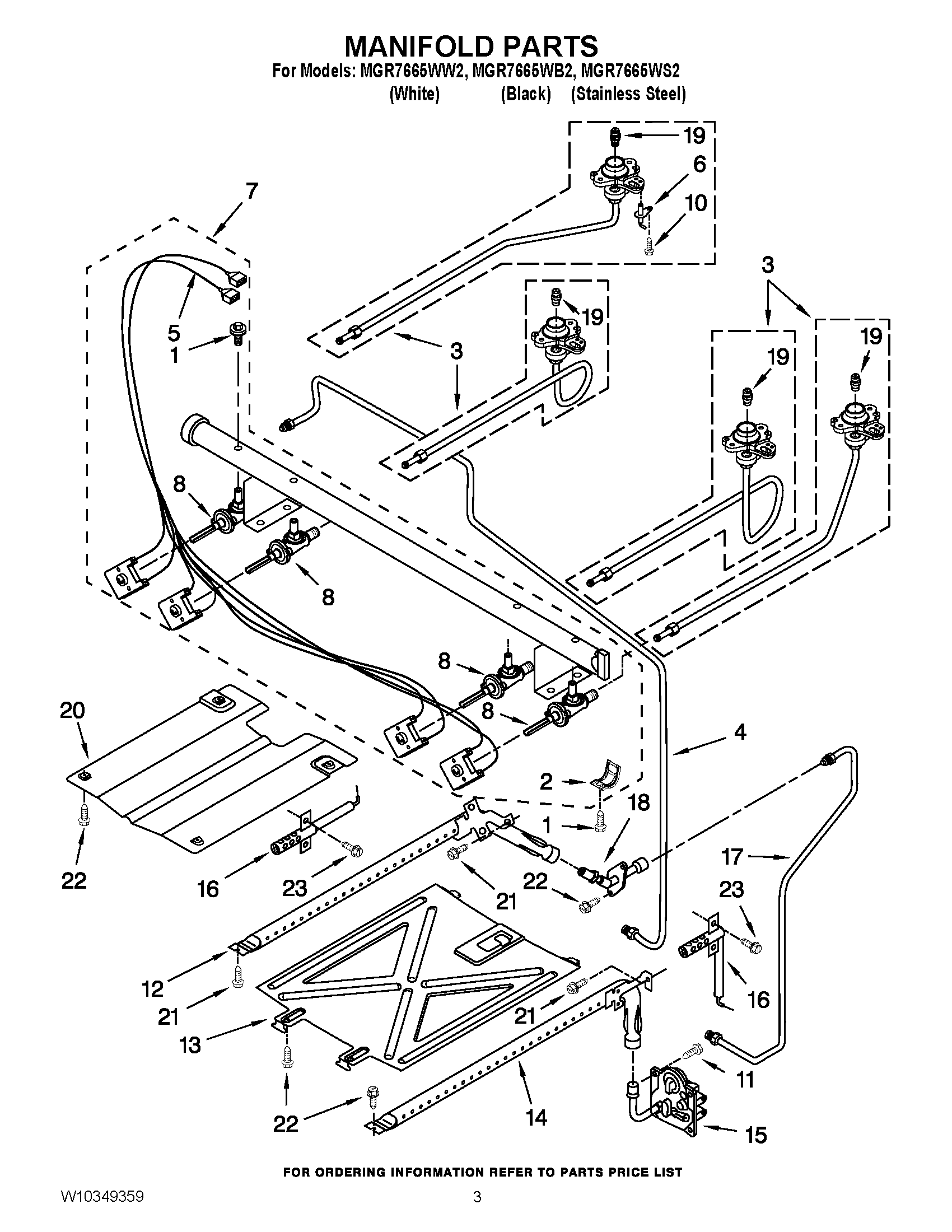

MGR7665WW2 03 – MANIFOLD PARTSadmin2025-04-26T09:14:57+00:00MGR7665WW2 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | SPUDS, LP GAS (KIT OF 4) |
| 1 | SCREW, VALVE |
| 2 | BRACKET, SADDLE VALVE |
| 3 | MAY W10170346 |
| 3 | MAY W10170345 |
| 3 | MAY W10157415 |
| 3 | MAY W10157418 |
| 4 | TUBING (MANIFOLD TO REGULATOR) |
| 5 | MAY W10295998 |
| 6 | Electrode (4) |
| 7 | MAY W10314241 |
| 8 | VALVE, GAS (LEFT FRONT & RIGHT FRONT) |
| 8 | VALVE, GAS (LEFT REAR) |
| 8 | VALVE, GAS (RIGHT REAR) |
| 10 | MAY 8273062 |
| 11 | SCREW |
| 12 | BURNER, BROILER |
| 13 | SPREADER, FLAME (OVEN) |
| 14 | BURNER, BAKE |
| 15 | Valve/Regulator |
| 16 | Igniter (Broil) |
| 16 | ELECTRODE, BAKE |
| 17 | MAY 8272222 |
| 18 | MAY 3186489 |
| 19 | ORIFICE, NATURAL (9.5K) (LEFT REAR) |
| 19 | ORIFICE, NATURAL (5K) (RIGHT REAR) |
| 19 | ORIFICE, BURNER (LEFT FRONT) |
| 20 | SPREADER, FLAME (BROILER) |
| 21 | SCREW |
| 22 | Screw |
| 23 | SCREW |
