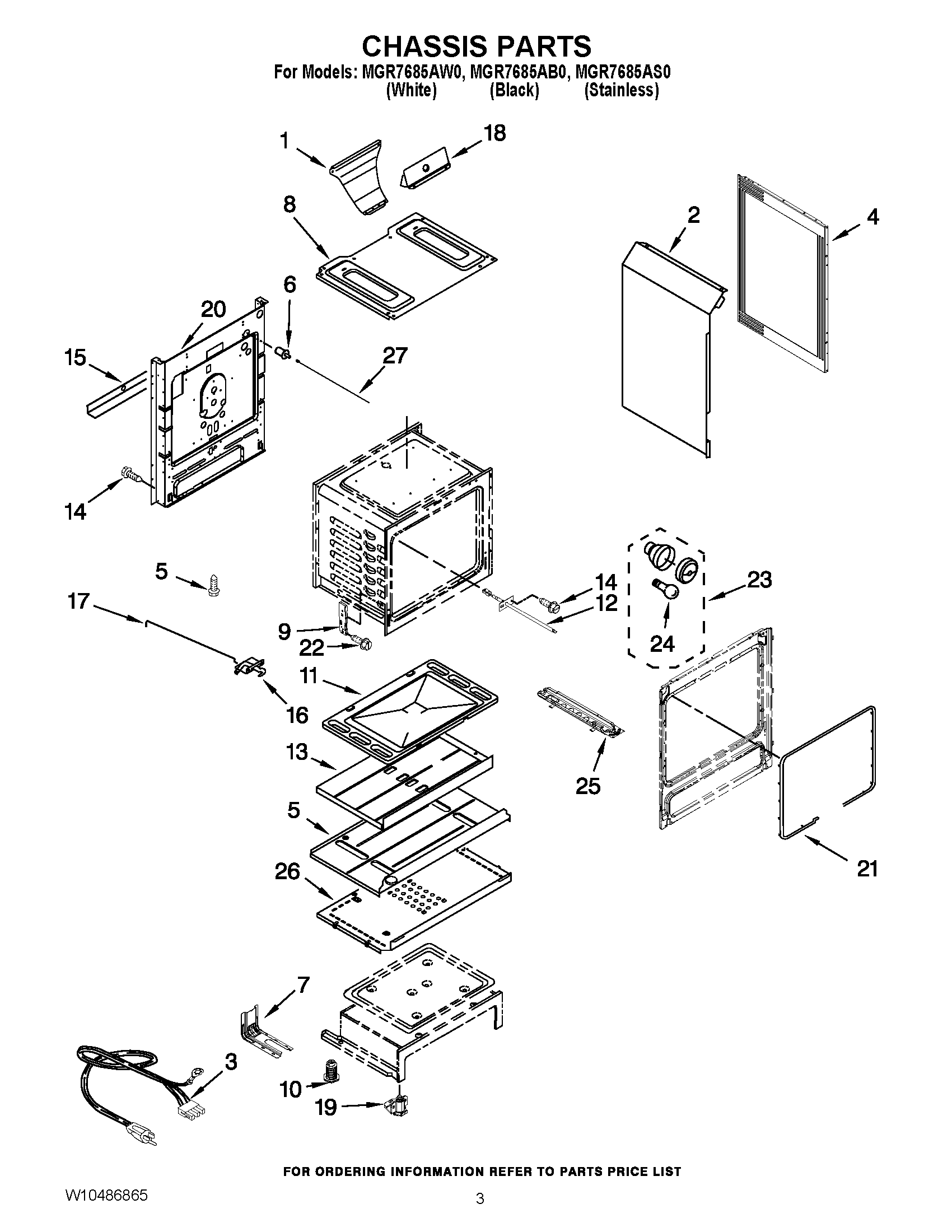

MGR7685AB0 03 – CHASSIS PARTSadmin2025-04-26T09:16:59+00:00MGR7685AB0 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | INSULATION, BACK |
| NI | INSULATION, WRAP |
| 1 | BOX, FLUE |
| 2 | MAY 9761448 |
| 2 | MAY 9761449 |
| 3 | Cord, Power |
| 4 | MAY W10322769 |
| 4 | MAY W10322770 |
| 5 | SHIELD, HEAT |
| 6 | MAY 9757262 |
| 7 | BRACKET, ANTI-TIP |
| 8 | BOX-BURNER, GAS SEALED |
| 9 | RECEIVER, HINGE |
| 10 | FOOT, LEVELING |
| 11 | BOTTOM, OVEN |
| 12 | SENSOR, OVEN |
| 13 | BAFFLE, BURNER OVEN |
| 14 | SCREW |
| 15 | BRACE, MAIN BACK |
| 16 | ASSEMBLY, DOOR LATCH (FRONT) |
| 17 | ROD, DOOR SWITCH |
| 18 | SHIELD, FLUE |
| 19 | ASSEMBLY, FRONT FOOT |
| 20 | MAY W10224919 |
| 21 | MAY 8522416 |
| 22 | MAY W10031780 |
| 23 | MAY 3196701 |
| 24 | BULB, OVEN LIGHT |
| 25 | ASSEMBLY, BASE RAIL (LEFT) |
| 25 | ASSEMBLY, BASE RAIL (RIGHT) |
| 26 | SHIELD, LOWER |
| 27 | ROD, PUSH LATCH |
