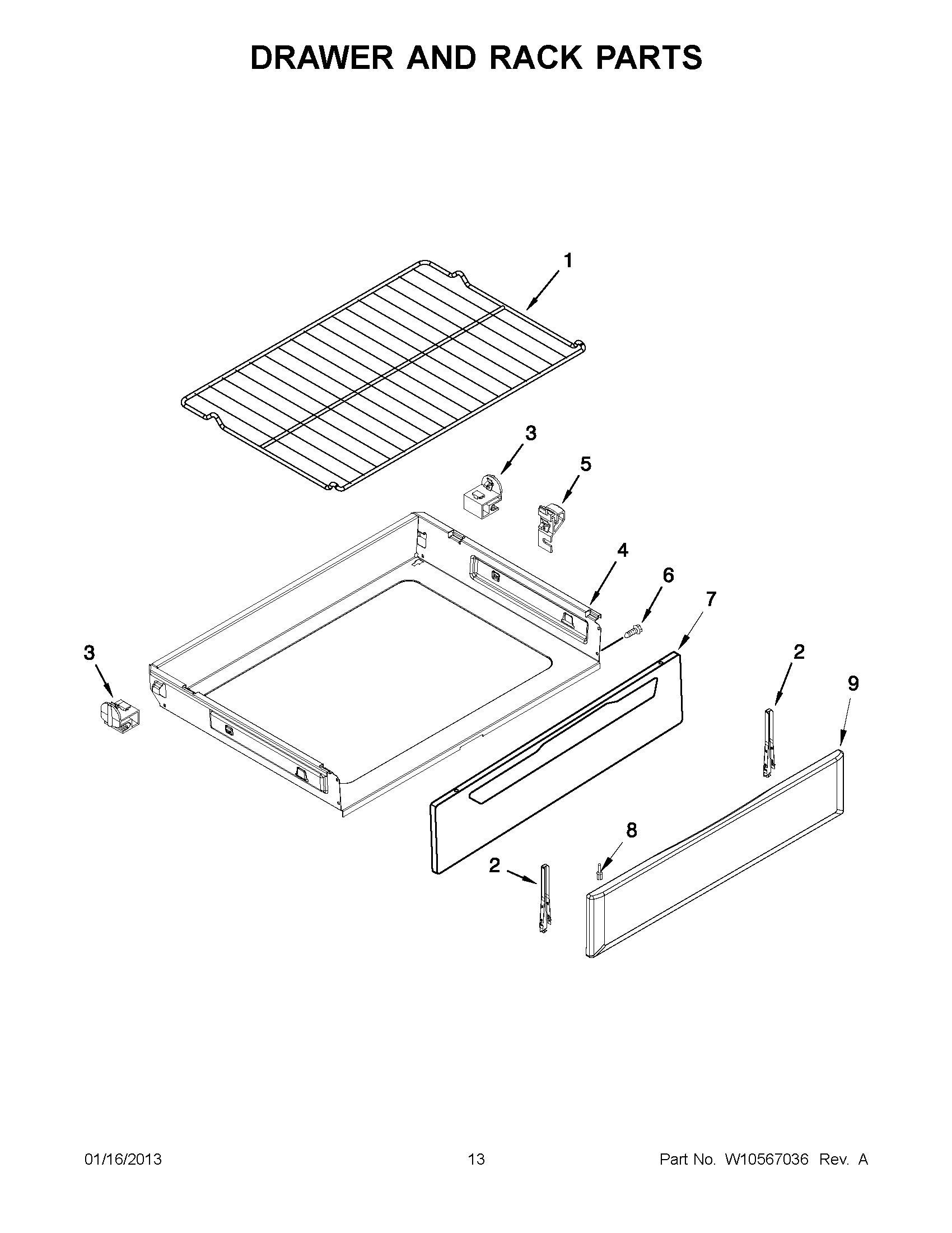

MGR7685AB1 06 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	RACK, OVEN
2	BRACKET, DRAWER MOUNTING (WHITE MODEL)
2	BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
3	GLIDE, REAR DRAWER
4	MAY W10300032
5	GLIDE, DRAWER
6	SCREW
7	PANEL, DRAWER FRONT (WHITE)
7	PANEL, DRAWER (BLACK)
8	RIVET, PUSH (BLACK)
8	RIVET, PUSH (WHITE)
9	PANEL, FRONT (STAINLESS)
