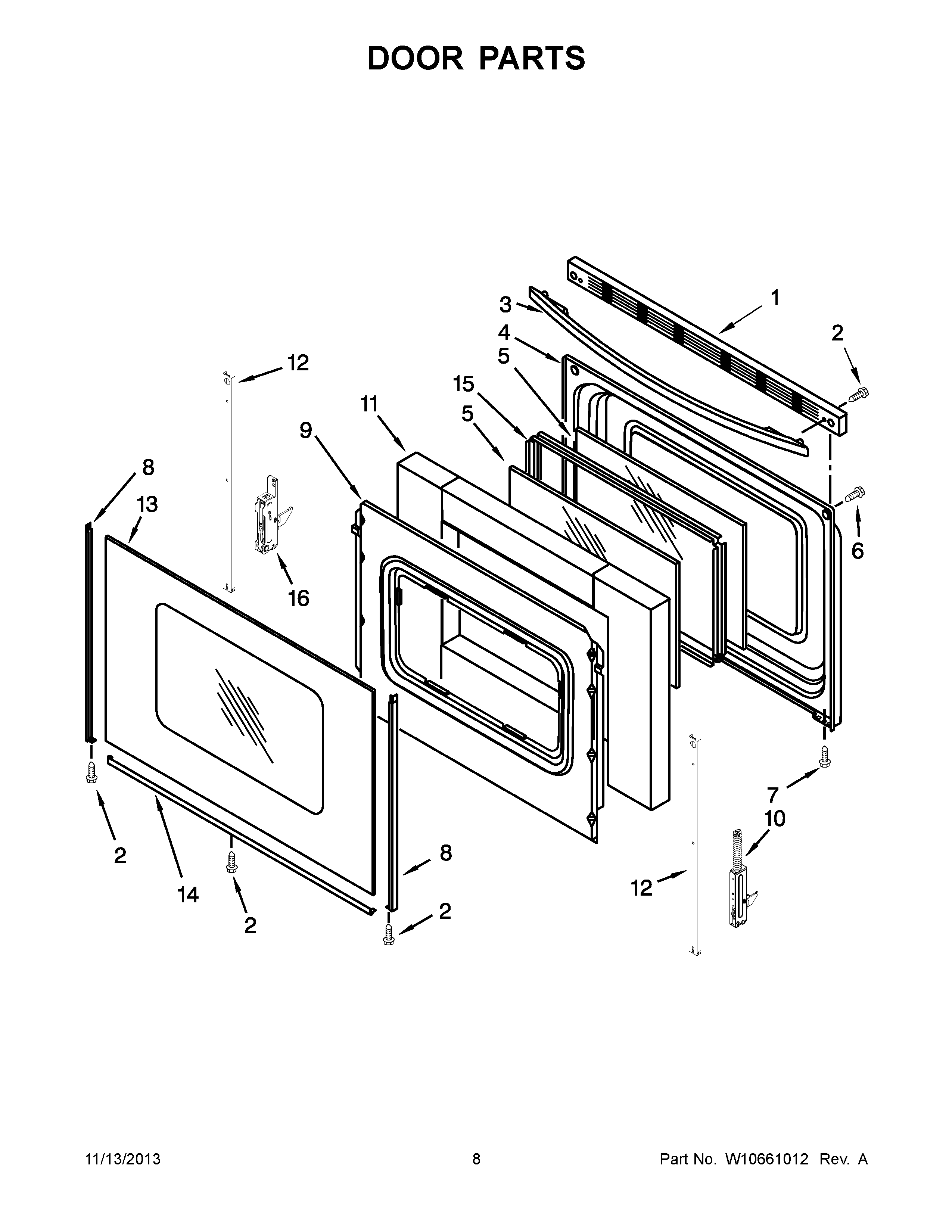

MGR7685AB2 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2SCREW
3MAY W10323584
3MAY W10171750
3MAY W10323581
4LINER, DOOR
5GLASS, INNER
6MAY W10031780
7SCREW
8TRIM, SIDE (BLACK, RIGHT HAND)
8TRIM, SIDE (BLACK, LEFT HAND)
8TRIM, SIDE (WHITE (RIGHT))
8TRIM, SIDE (WHITE (LEFT))
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
11INSULATION, DOOR STRIP
12STRAP, DOOR
13MAY W10106405
13GLASS, OUTER (WHITE)
13GLASS, OUTER (STAINLESS)
14TRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15FRAME, GLASS
16HINGE, DOOR (PASSIVE)
