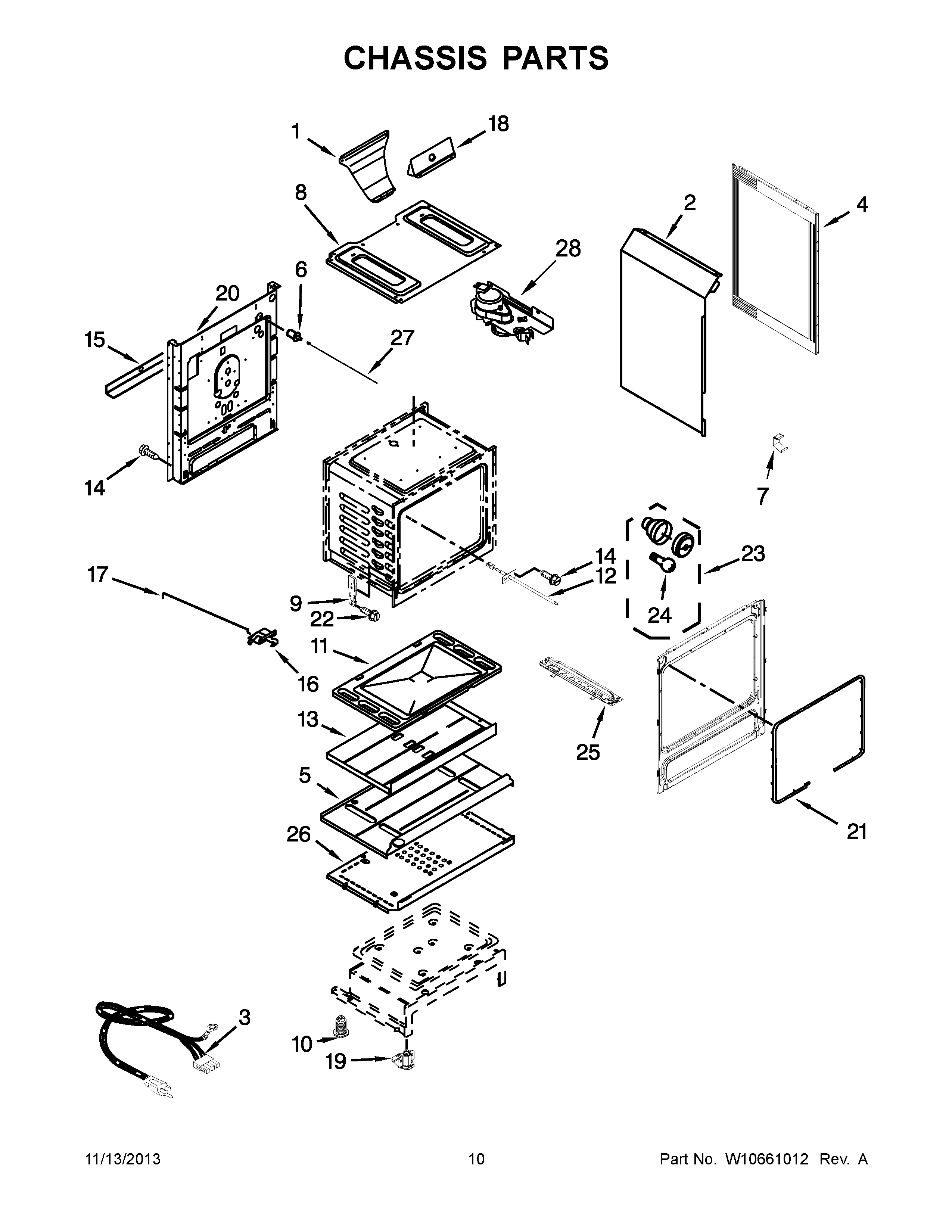

MGR7685AB2 06 – CHASSIS PARTS

MGR7685AB2 06 – CHASSIS PARTS

Written by

in

MGR7685AB2 06 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, BACK
NIINSULATION, WRAP
1BOX, FLUE
2MAY 9761448
2MAY 9761449
3Cord, Power
4MAY W10322769
4MAY W10322770
5SHIELD, HEAT
6SWITCH, DOOR
7CLIP, PANEL
8BOX-BURNER, GAS SEALED
9RECEIVER, HINGE
10FOOT, LEVELING
11BOTTOM, OVEN
12SENSOR, OVEN
13BAFFLE, BURNER OVEN
14SCREW
15BRACE, MAIN BACK
16ASSEMBLY, DOOR LATCH (FRONT)
17ROD, DOOR SWITCH
18SHIELD, FLUE
19ASSEMBLY, FRONT FOOT
20BACK, MAIN
21MAY 8522416
22MAY W10031780
23ASSEMBLY, LIGHT
24BULB, OVEN LIGHT
25ASSEMBLY, BASE RAIL (LEFT)
25ASSEMBLY, BASE RAIL (RIGHT)
26SHIELD, LOWER
27ROD, PUSH LATCH
28ASSEMBLY, DOOR LATCH (REAR)
