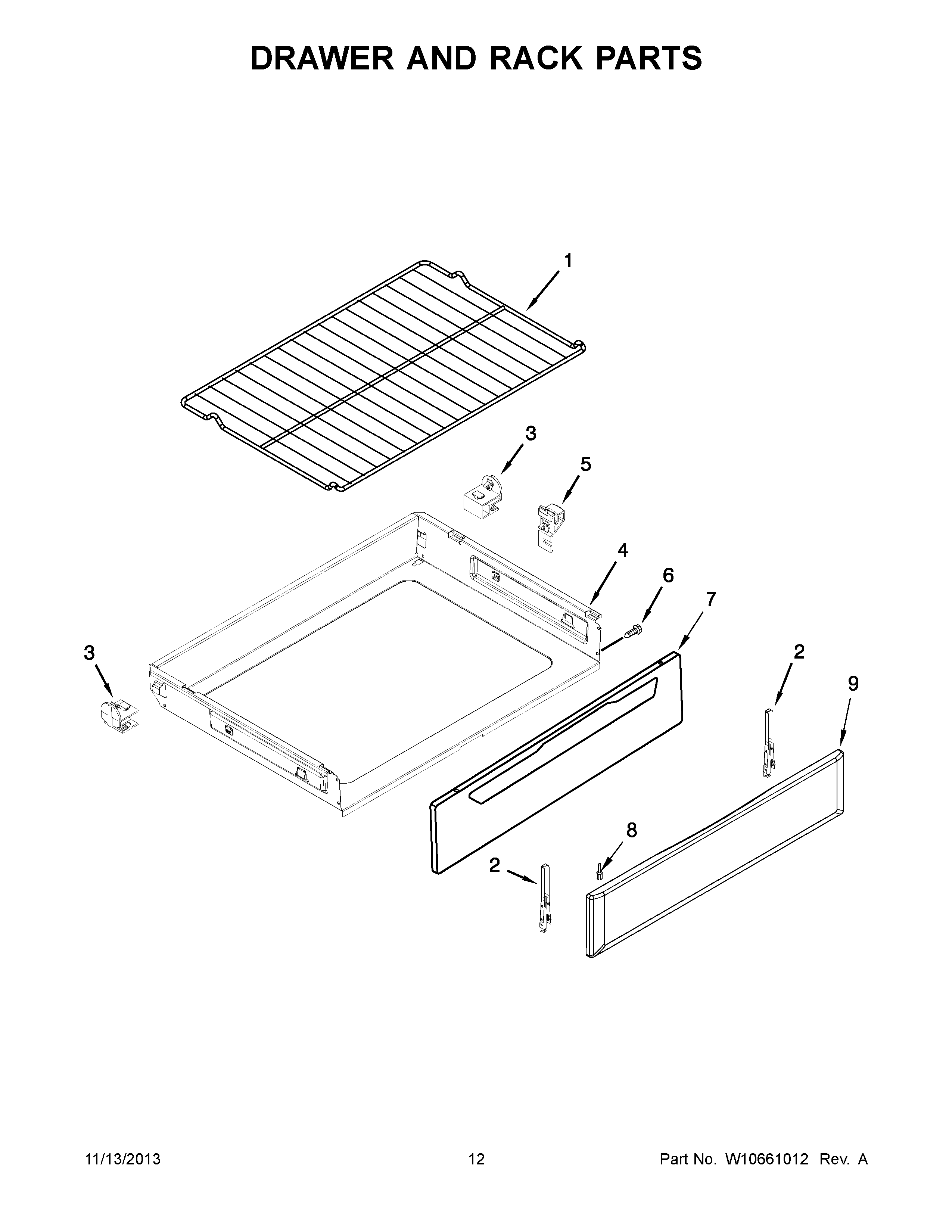

MGR7685AB2 07 – DRAWER AND RACK PARTS

Products

PositionProduct
1RACK, OVEN
2BRACKET, DRAWER MOUNTING (WHITE MODEL)
2BRACKET, DRAWER MOUNTING (STAINLESS MODEL)
3GLIDE, REAR DRAWER
4MAY W10300032
5GLIDE, DRAWER
6SCREW
7PANEL, DRAWER FRONT (WHITE)
7PANEL, DRAWER (BLACK)
8RIVET, PUSH (BLACK)
8RIVET, PUSH (WHITE)
9PANEL, FRONT (STAINLESS)
