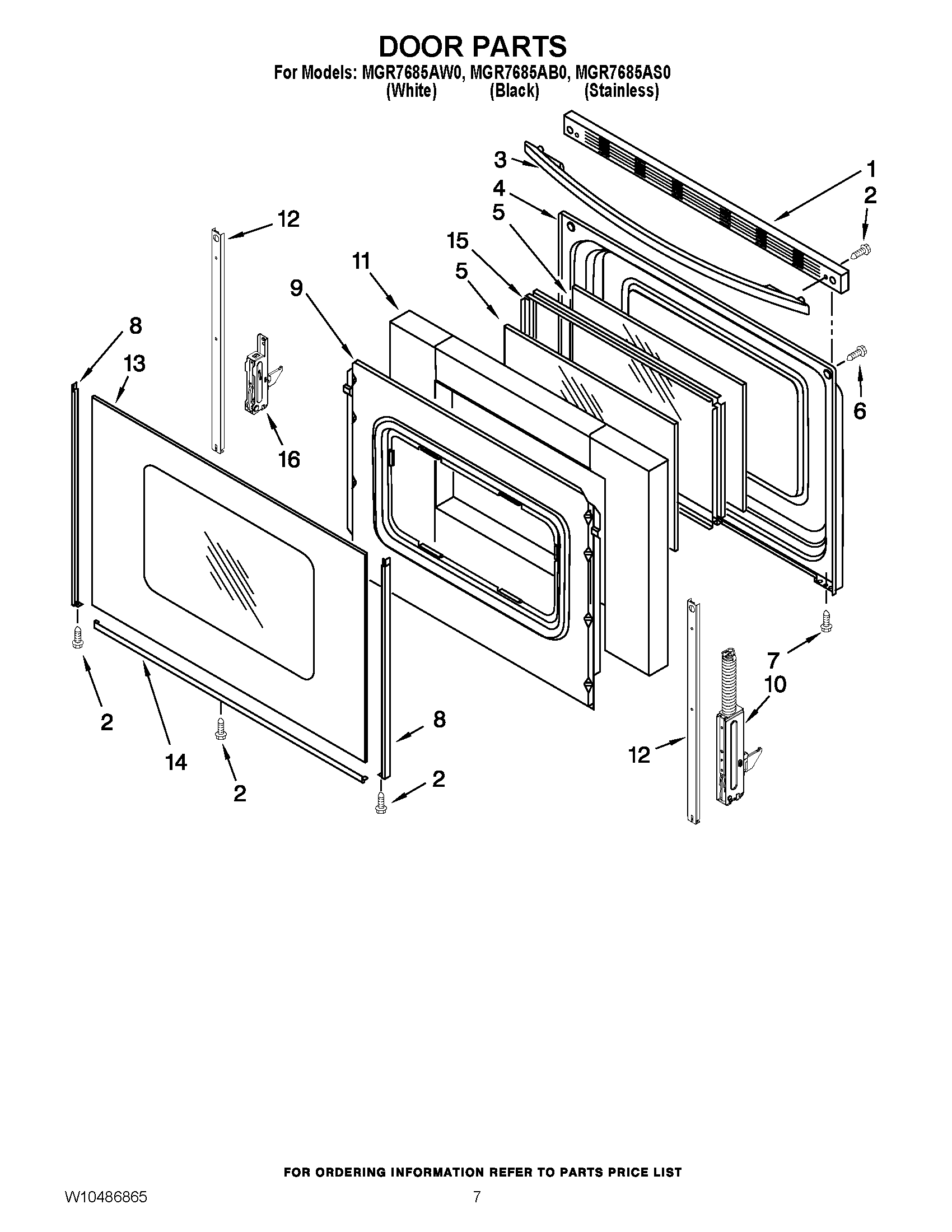

MGR7685AS0 05 – DOOR PARTS

MGR7685AS0 05 – DOOR PARTS

Written by

in

MGR7685AS0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (BLACK)
1TRIM, TOP (WHITE)
2MAY 3196160
3MAY W10323584
3MAY W10171750
3MAY W10323581
4LINER, DOOR
5GLASS, INNER
6MAY W10031780
7SCREW
8TRIM, SIDE (BLACK, RIGHT HAND)
8TRIM, SIDE (BLACK, LEFT HAND)
8TRIM, SIDE (WHITE (RIGHT))
8TRIM, SIDE (WHITE (LEFT))
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
11INSULATION, DOOR STRIP
12STRAP, DOOR
13GLASS, OUTER (WHITE)
13GLASS, OUTER (STAINLESS)
13MAY W10106405
14TRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15FRAME, GLASS
16HINGE, DOOR (PASSIVE)
