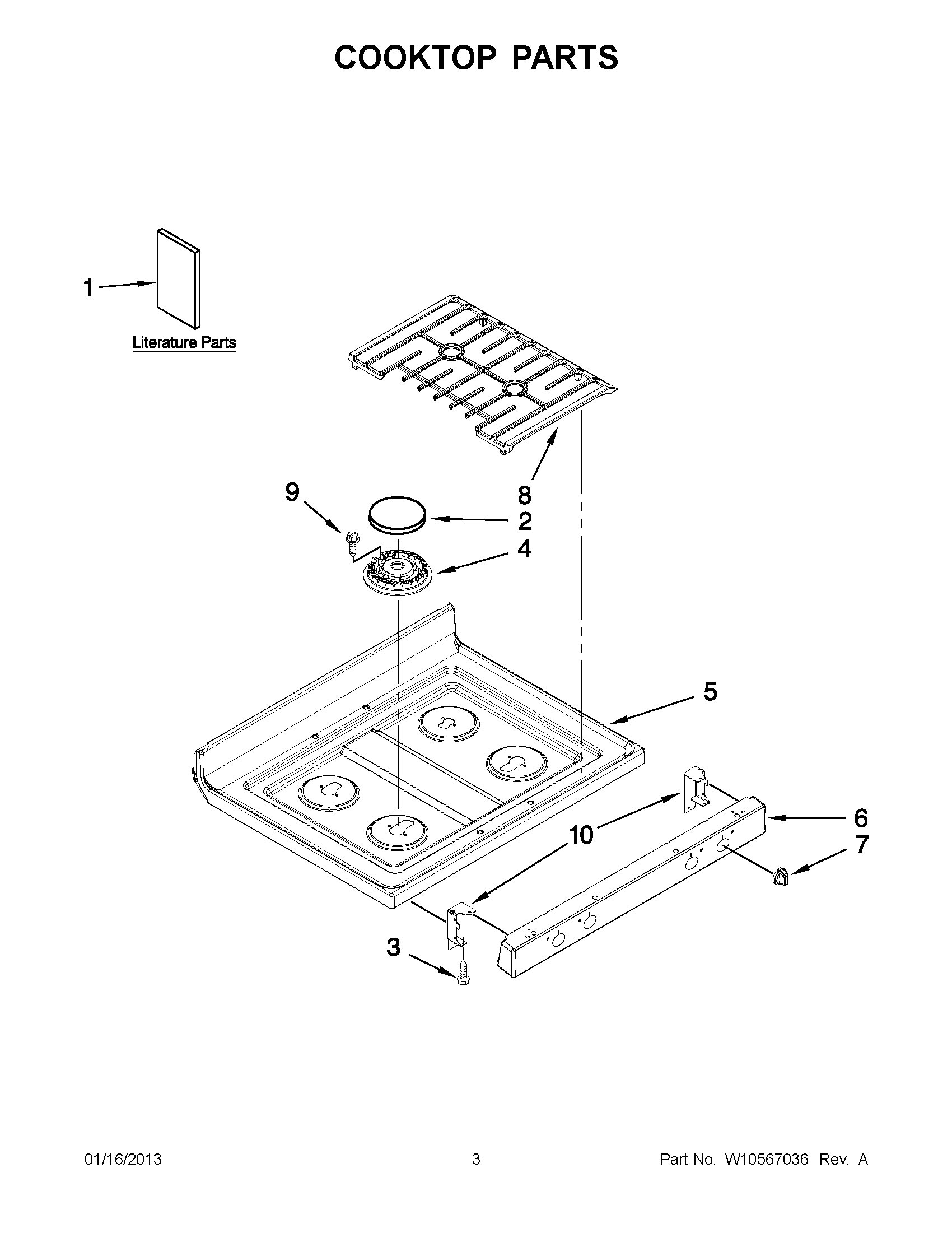

MGR7685AS1 01 – COOKTOP PARTS

MGR7685AS1 01 – COOKTOP PARTS

Written by

in

MGR7685AS1 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10357517
1MAY W10526974
1MAY W10456419
2CAP, BURNER LEFT FRONT (BLACK)
3SCREW
4HEAD, BURNER (17.5K) (RIGHT FRONT)
4HEAD, BURNER (6K) (LEFT REAR)
4MAY W10406283
5MAY W10366731
5MAY W10366732
6MAY 8523855
6MAY 8523854
7KNOB, BURNER (BLACK)
7MAY W10200192
8SET, GRATE (BLACK)
9SCREW
10BRACKET, MANIFOLD
