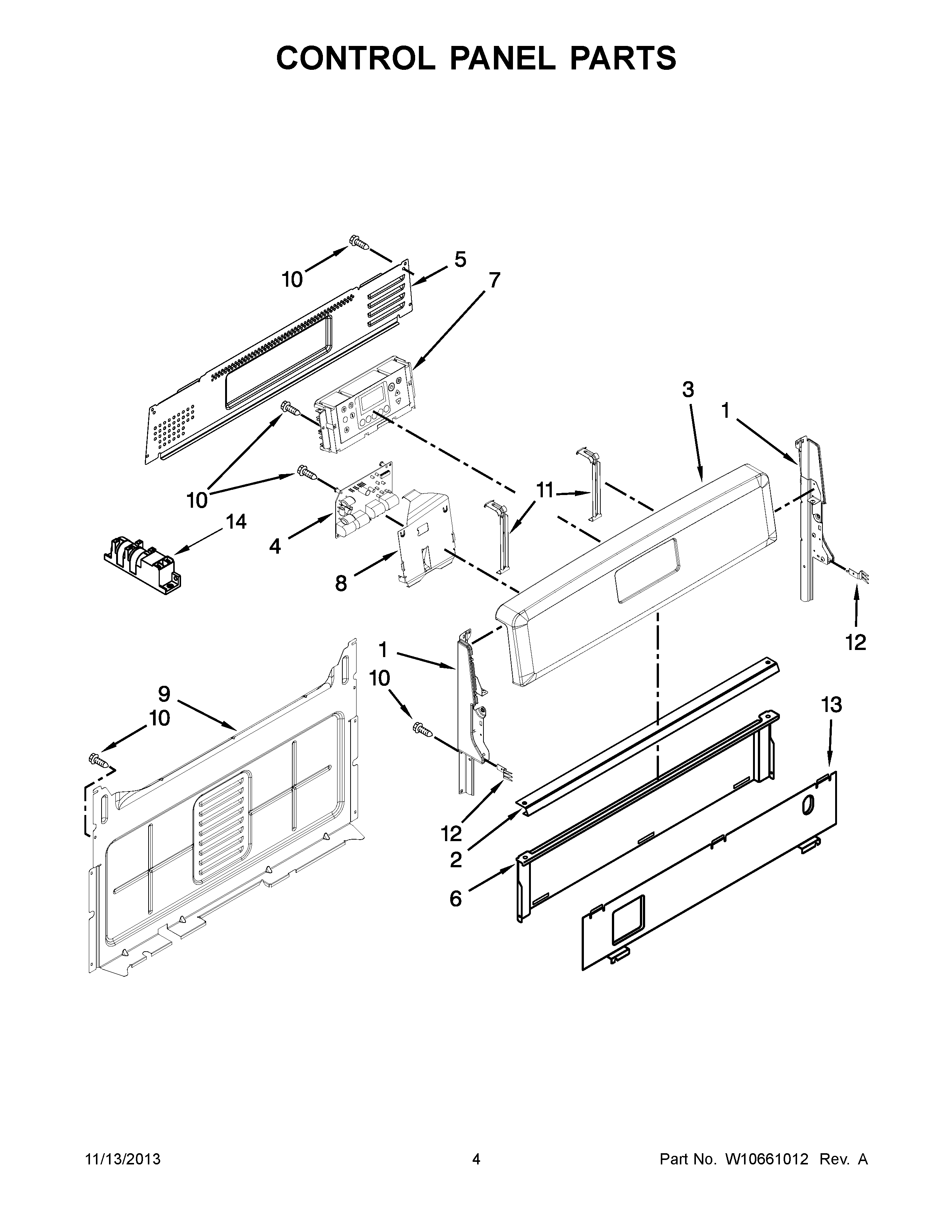

MGR7685AW2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	ENDCAP (BLACK (LEFT))
1	ENDCAP (WHITE (LEFT))
1	ENDCAP (BLACK (RIGHT))
1	ENDCAP (WHITE (RIGHT))
2	BRACKET, CONSOLE MOUNTING
3	MAY W10333931
3	MAY W10333932
3	MAY W10333933
4	MAY W10511278
5	COVER, UPPER
6	SHIELD, HEAT
7	MAY W10271768
7	MAY W10271769
8	MAY W10516463
9	COVER, BACK
10	SCREW
11	MAY W10324410
12	BRACKET, REAR COOKTOP
13	SHIELD, HEAT
14	MODULE, SPARK
