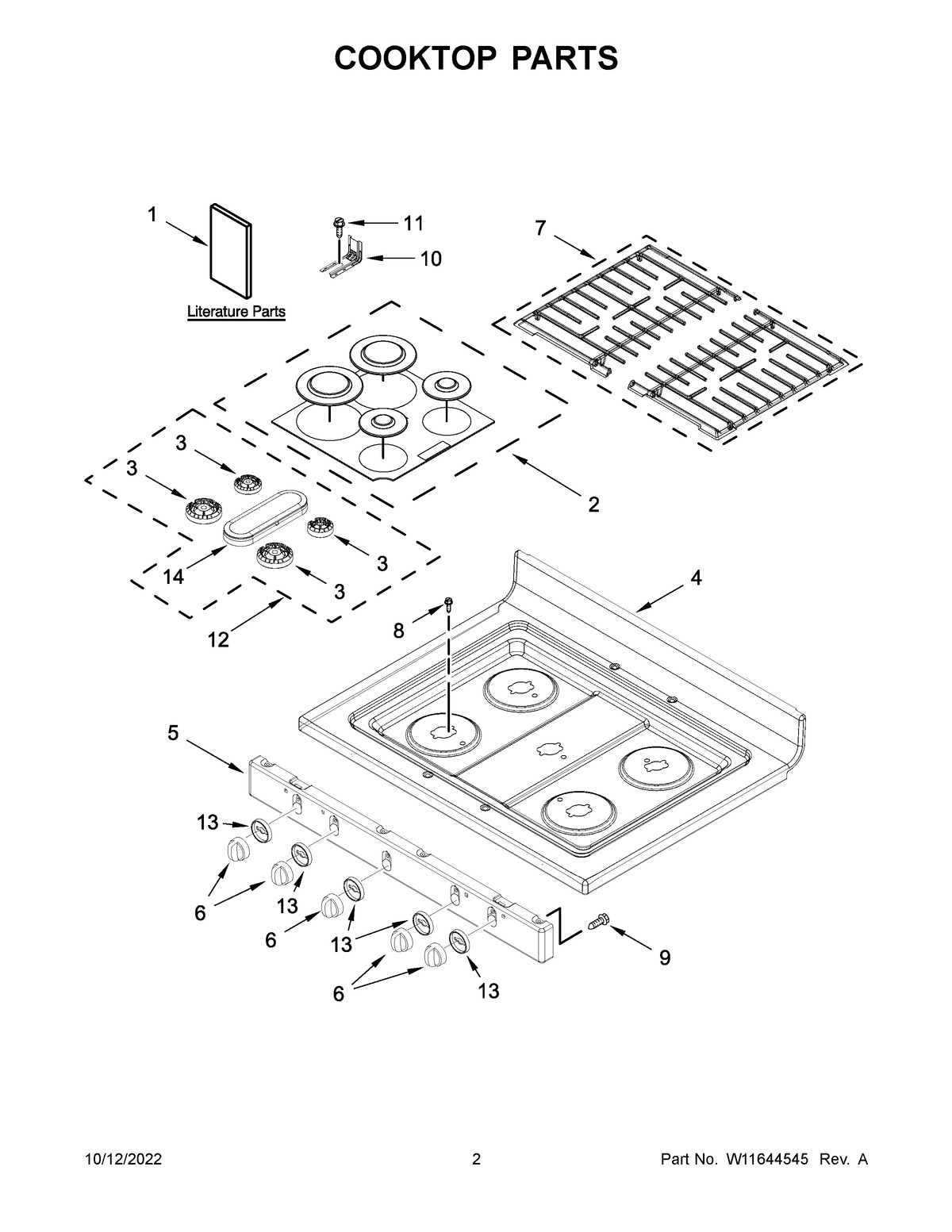

MGR7700LZ4 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNS-WIRE
NI	W11645866 Whirlpool Wire Harness
NI	W10334923 Whirlpool Clip
NI	3196896 Whirlpool Clip
NI	3400964 Whirlpool Oven Clip
NI	16515 Whirlpool Clip
1A	QUICK START GUIDE
1B	TECH SHEET
1	OWNER'S MANUAL
2	W11605759 Whirlpool Burner Cap
3B	W11435657 Whirlpool Burner Head
3A	W11435659 Whirlpool Burner Head
3	W11435630 Whirlpool Oven Burner Head
4	W11454367 Whirlpool Cooktop
5	W11028196 Whirlpool Manifold Panel
6	W11620564 Whirlpool Knob
7	W11101497 Whirlpool Grate Kit
8	W11241230 Whirlpool Screw
9	WP3196557 Whirlpool Screw
10	W11447673 Whirlpool Range Tip Anchor
11	SCREW, ANTI-TIP KIT
12	W11575584 Whirlpool Burner Head
13	W11375481 Whirlpool Knob Bezel
14	W11435660 Whirlpool Burner Head
